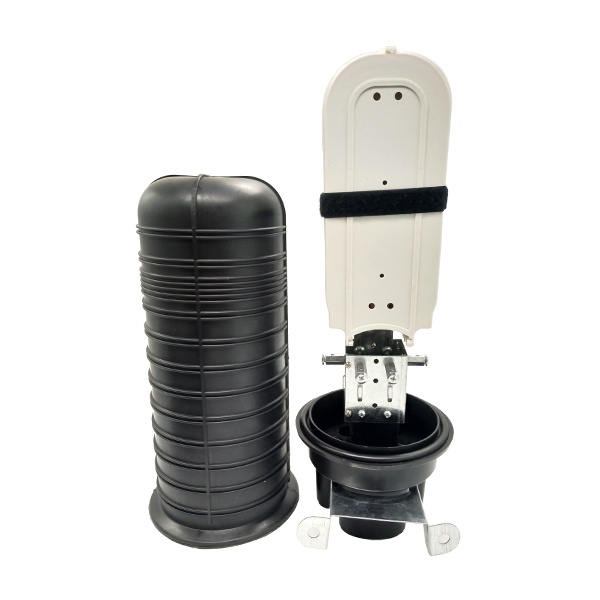

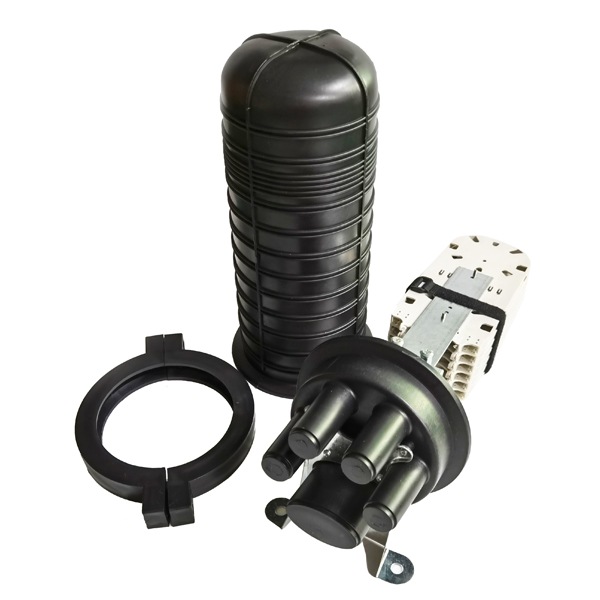

Pole Mount IP68 144 Cores Fiber Splice Enclosure ,1Oval+4 Round Ports, Heat Shrink, Dome Closure, PP Black Outdoor Use

Optical cable connection box, also called optical cable joint box and barrel, is suitable for all kinds of  structural  cables,  such as  overhead, pipeline, direct burying and other direct and branch connections. The box body adopts imported PPR reinforced plastics, which has high strength, corrosion resistance, mature structure, reliable sealing and convenient construction.

SKU HT-RSMS-009 Category Tags , Brand:
SEND INQUIRY

Description

Features

  • Suitable for the aerialmounting, pole mount or wall mount.
  • Allkinds of accessories can be configured with the
  • Anaging resistance: good stability to heat, heat radiation, air, ozone etc..
  • Thepurpose  of  corrosion  resistance:  high  resistance  to  dilute  acid,  salt,  oxidizing  agent, aliphatic hydrocarbons etc..
  • Thepurpose of sealing technology:  using  repeatable opening seal components, to ensure airtight good waterproof
  • All  the  mechanical  properties:the  ability  to  endure  harsh  conditions  such  as  vibration, impact, cable tensile distortion and strong temperature change .
  • Locking device: no special tools are needed for easy installation and repeated opening.



Specification

Model HT-RSMS-009
Dimension ø130*435mm
Cable port 1 oval, 4 round ports
Cable diameter Round ports:ø22mm,

oval port:60*35mm
Sealing method Heat shrinkable
Max capacity 144 cores
Max splice tray qty 6 pcs 24 fiber tray
Net weight 1.71kg
