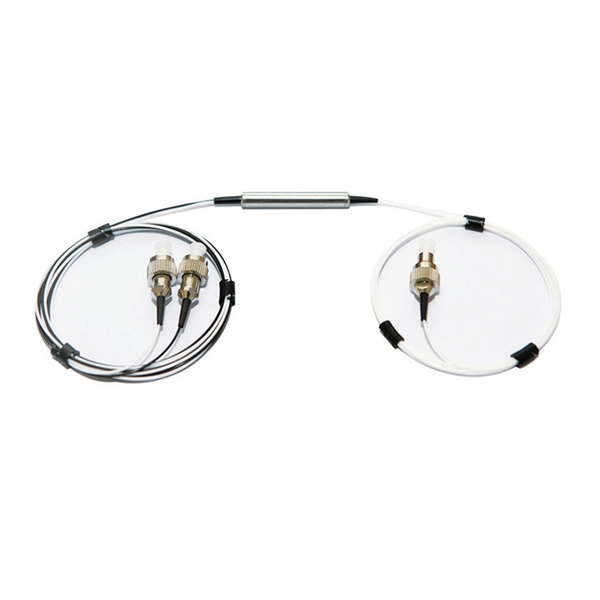

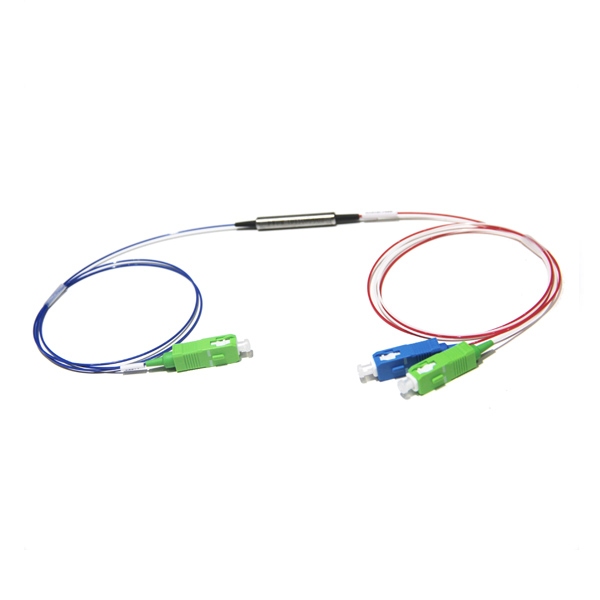

High Isolation FWDM Fliter 1260~1360T 1460-1620R SC APC (T1310nm, R1490 1550NM)

High isolation low cost FWDM device s based on environmentally stable Thin Film Filters technology. The flitter wdm device combines or separates light at different wavelengths in a wide wavelength range.

Category Tags , , Brand:

Description

Feature

  • Wide Wavelength Range
  • Low Insertion Loss
  • WDM system
  • High Channel Isolation
  • High stability and reliability



Application

  • System Monitoring
  • WDM system
  • Transmitters and Fiber
  • Fiber optical amplifier
  • Fiber optic instrument



Specification

Parameter FWDM  4/35 FWDM  5/35 FWDM  35/5
Pass Band Wavelength Range (nm) 1480~1500 1540~1560 1260~1360 & 1480~1500
Reflection  Band1 Wavelength Range (nm) 1260 ~ 1360 1260 ~ 1360 1540~1560
Reflection  Band1 Wavelength Range (nm) 1540~1560 1480~1500
Insertion Loss (dB) Reflect Channel ≤0.6
Pass Channel ≤0.8
Pass Band Rippler(dB) <0.3
Isolation (dB) Reflect Channel > 15
Pass Channel >30
Insertion Loss Temperature Sensitivity (dB/℃) <0.005
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >50
Maximum Power Handling (mW) 500
Operating Temperature (℃) -20 ~+70
Storage Temperature (℃) -40 ~+85
Package Dimension (mm) 1. Φ5.5 x L34(for 900um Loose tube)

2. Φ5.5 x L30(for bare fiber )

3. L90xW20xH9.5(for 2.0/3.0mm Cable)
