Description
Features of Fiber Cable Termination Kit – Handheld Fiber Optic Microscope
- Providing the most critical 400X view of optical fiber end face.
- Handheld and portable with comfortable designed shape.
- Illumination light source, with LED, rated for 10000hours.
- 5mm and 1.25mm universal adapters allow for inspection of end faces on single fiber SC FC LC ST MU and E2000 connectors, etc.
- See clearly at a glance cleaning results.
Specification of Fiber Cable Termination Kit – Handheld Fiber Optic Microscope
| Model | CLEM-200X /400X |
| Magnification | 200X, 400X |
| LED life | 10000hours |
| Adapter type | SC FC ST LC |
| Battery | AAA*3 |
| Weight | 665g |
| Size | 225*105*65mm with package |
| Adapter port | 1.25mm and 2.5mm universal |
| Laser safety filter | Built in |
| Control type | Instantaneous on/off switch, fine focusing control |

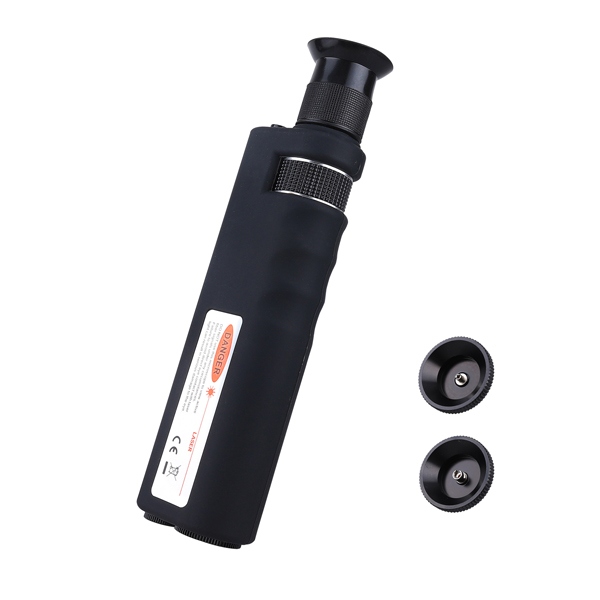

Details of Fiber Cable Termination Kit – Handheld Fiber Optic Microscope

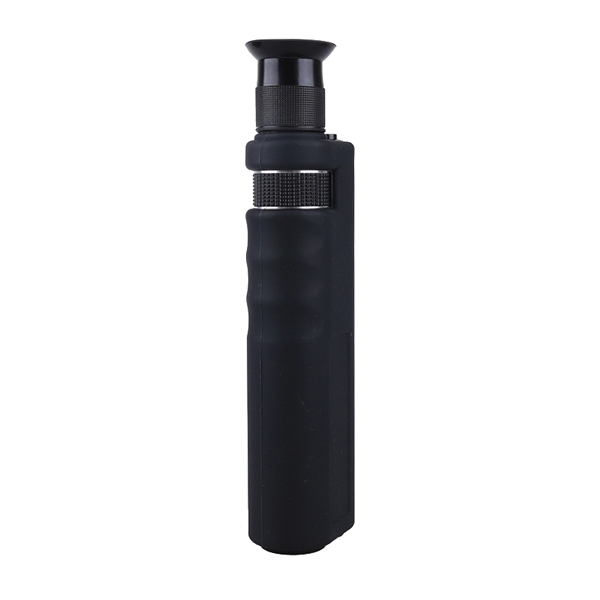

The dimensions of this handheld fiber optic microscope are 57mm in width and 225mm in height.
It is compatible with the SC, FC, ST and LC adapters.
