Description
Pivoting Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.
Features
- Applicable in the termination and 19” standard structure,
- Rack mount in optical distribution frame ODF
- Suitable for FC ,SC, ST, LC, E2000 adapters
- 0mm Cold rolled steel sheet, with electrostatic spraying

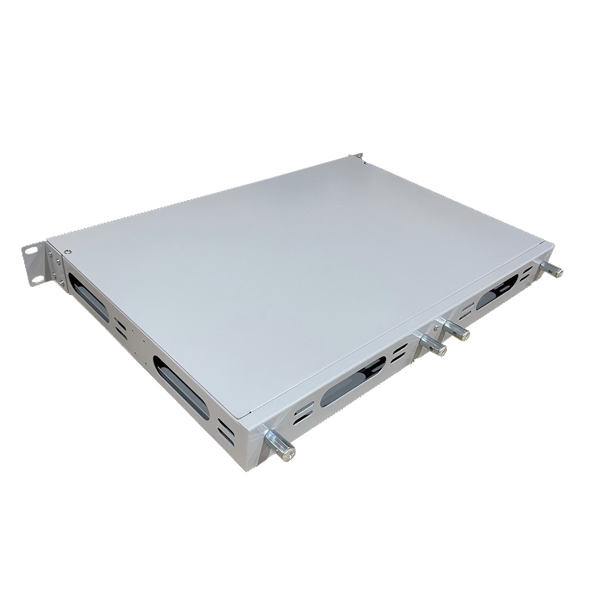

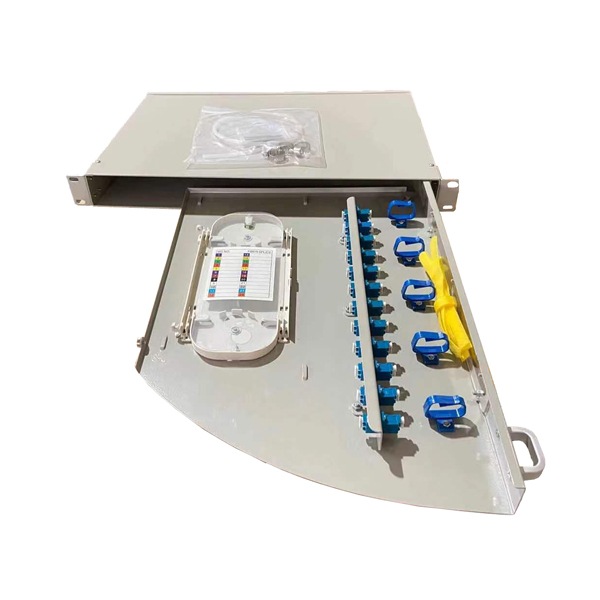

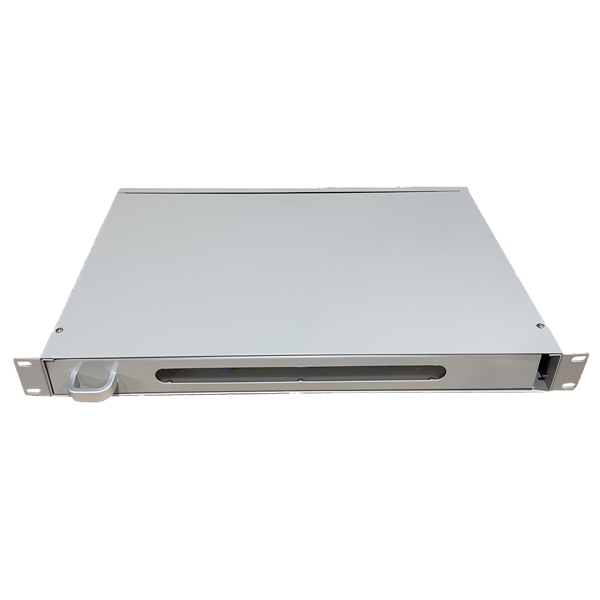

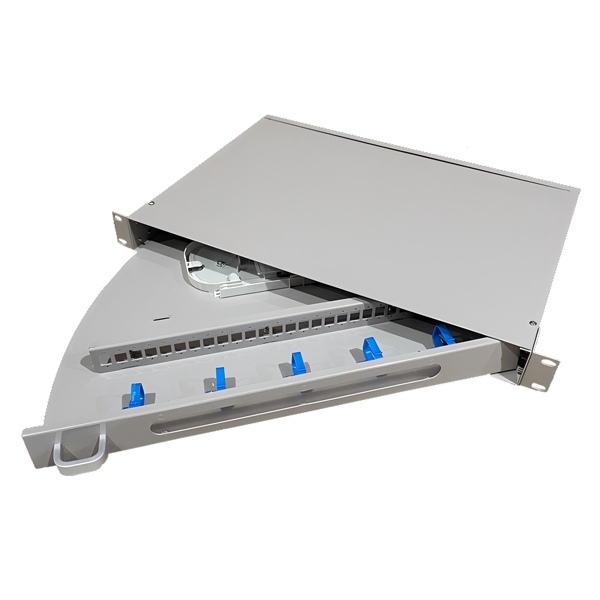

- Front fan-out panel to draw the door open,convenient o operate, no need to open from the top
- Total front operation with cable clamps and routing area, large fiber storage
- Cable entryat both sides or from rear body, good to operate
- Box color can be customized, white, black,etc.
- Silk print or laser mark both available.
Technical Specification
| Width | 484mm |
| Deepth | 310mm |
| Height | 1U, 2U, 3U, 4U, etc |
| Max capacity | 24cores |
| Material | 1.0 mm cold rolled steel SPCC |
| Cable entry port | Side or rear |
| Cable exit port | SC FC LC ST E2000, etc adapter port |
| Adapter quantity | 24pcs |
| Material coating | Powder |
| Operating temperature | -10~+85°C |
| Standards | TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS |
| IP Rating | IP20 |
| Color | White |
Connector specification
| Insertion loss | <0.3dB |
| Return loss | >65dB APC, >50dB UPC, >30dB PC |
| Mating durability | 500 times |
| Wavelength | 850-1550nm |
| Standards | IEC61300, IEC61754, ROHS, etc |
