Description
Features of Shielded Patch Panel
- Applicable in the termination and 19’or 23” standard structure.
- Rack mount in optical distribution frame ODFwith mounting ears with holes.
- Suitable for FC,SC,ST,LC,E2000 adapterson request.
- 2mm Cold rolled steel sheet, with electrostatic spraying.
- Box size: 430*300*2U available, with ears the length can be 480mm.

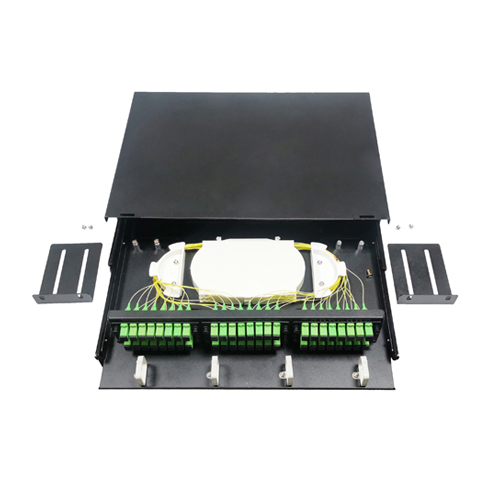

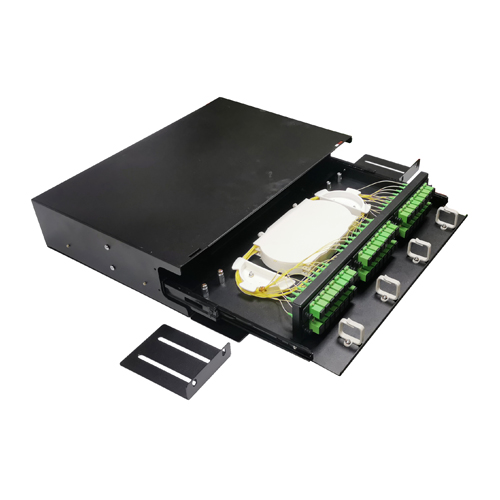

- Metal sliding tray of the splice tray and bottom, easier and faster operation without open the cover, and take out for fiber management.

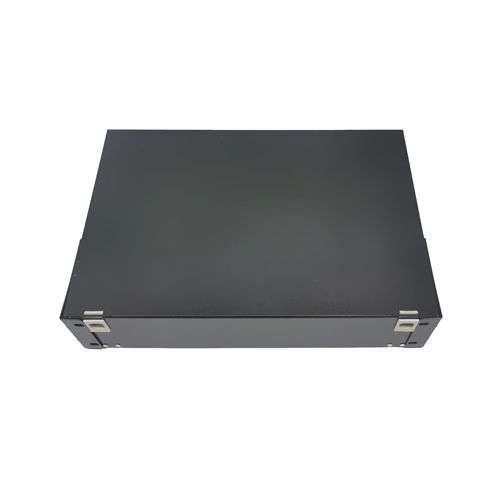

- Clip cover design, dustproof and whole box closed not in operation.

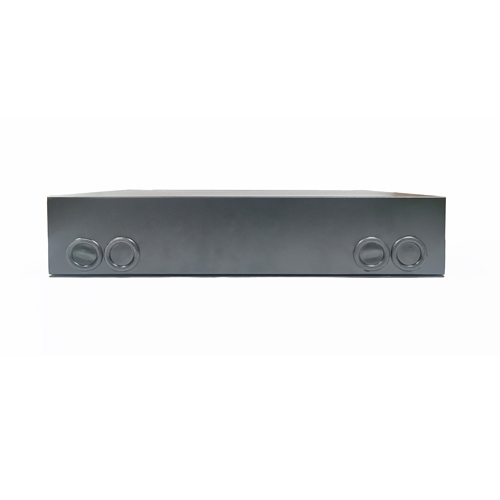

- 4cable entry ports at back with rubber seal to prevent dust, each port with cable clamps and protection devices.
- All the metal parts are stainless steel for long life span guarantee.
Specification
| MODEL | GPSR-2U-SA48 |
| Dimension | 430*300*2U mm |
| Max capacity | 48 cores |
| Adapter port | SC SIMPLEX |
| Adapter qty | 48 pcs SC/APC or LC duplex adapter |
| Thickness | 1.2mm |
| Material | Cold rolled steel sheet, with electrostatic spraying |
| Color | Black, white |
| Cable entry | 4pcs φ20mm |
| Net weight | 6.2kg |
| Standard | National YD/T925—1997 Standard |
| Fiber length left in tray | ≥1.6m |
| working temperature | – 400C ~ + 600C |
| lateral pressure-resistance | 500N |
| shock-resistance:750N | 750N |
| optical fiber winding radius | ≥40mm |
