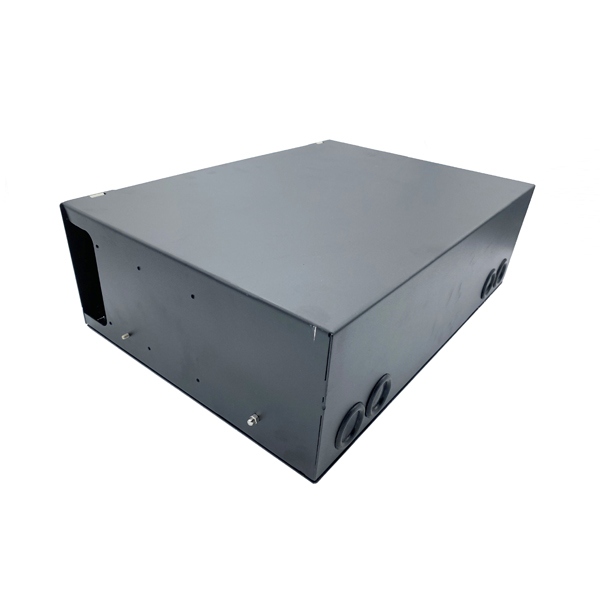

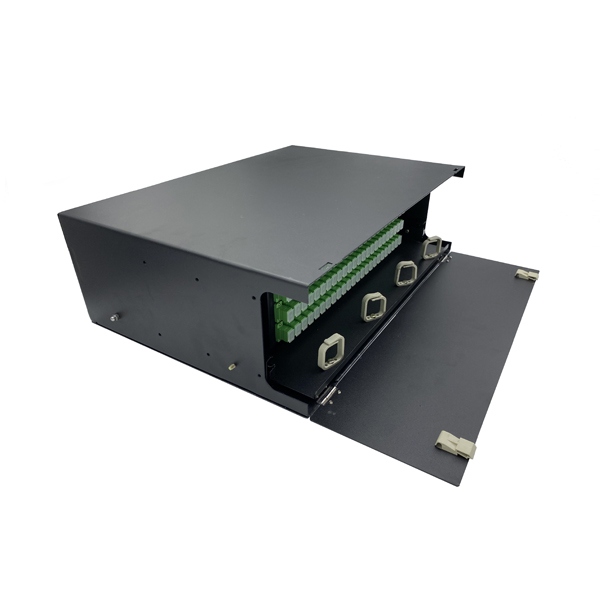

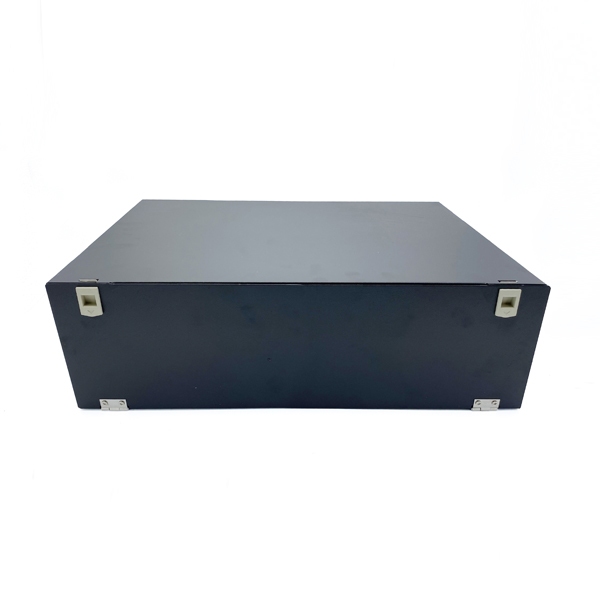

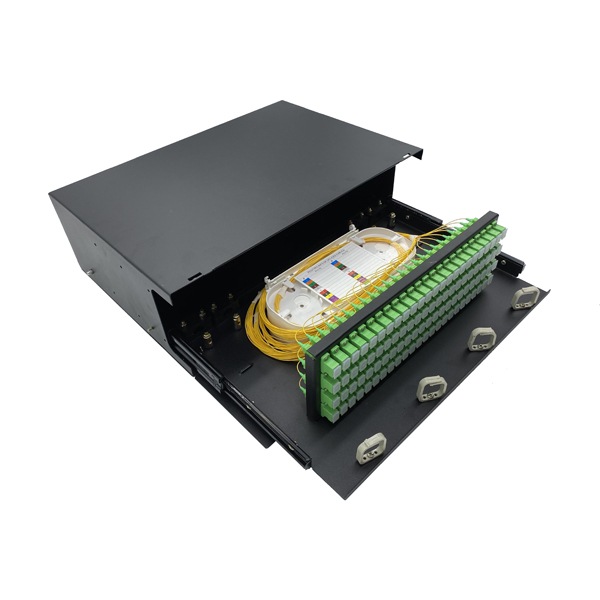

3U 96-Port SC APC Fiber Patch Panel Black, 19″ Rack Mount & Dust Cover

This latest Fiber Optic Distribution Panel can accommodate 4 adapter panels in 1U and terminate/splice from 12 to 48 fibers, in various types of connectors. Accessories include splice trays, splice sleeves, cable gland and wire management.

Description

Certification and Compliance:

  • TIA/EIAC, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1.
  • CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
  • ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications)
  • GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames.)
  • UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances.)
  • RoHS (Directive on Restriction of Hazardous Substances.)



Features:

  • Sliding 1U patch panel with defined stop for the drawer.
  • Double cable entry with cable gland for easy routing and protection for optical fiber cable and distribution pigtails.
  • Ample space within the panel for easy placement and routing of tight fiber after splicing and termination.
  • 10G Ready, Zirconia fitted sleeve for all Multimode and Single mode adapter.
  • 1U rack mount can be loaded with up to 4 panels (12 fiber/panel). Available in SC, FC, ST, LC adapter panel.



Specifications:

Patch Panel Adaptor
Size(H×W×D )mm 1U(H) x 19’’(W) x 260mm(D) Multi Mode Insertion Loss 0.2dB Maximum
Material 1.2mm Cold Rolled Steel Single Mode Insertion Loss 0.2dB Maximum
Material Coating Powder Mating durability >500 Mating Cycles
Humidity 0-90%, non-condensing Multi Mode Adaptor Wavelength 850 to 1300nm
Operating Temperature -10°C to 60°C Single Mode Adaptor Wavelength 1310 to 1550nm
Storage Temperature -40°C to 85°C ROHS Compliant Yes
