White SC APC Fiber Patch Panel 2U 48-Port, High Density, Rack Mountable

This ODF box is 19inch standard size sliding drawer type Fiber optic patch pane, it is the auxiliary equipment for terminal wiring in optical fiber transmission communication network, and suitable for indoor optical cable splice directly and branch connection, and protection of the optical fiber.

Description

Features

  • Applicable in the termination and 19’or 23” standard structure.
  • Rack mount in optical distribution frame ODF with mounting ears with holes
  • Suitable for FC,SC,ST,LC,E2000 adapters on request.
  • 2mm Cold rolled steel sheet, with electrostatic spraying.

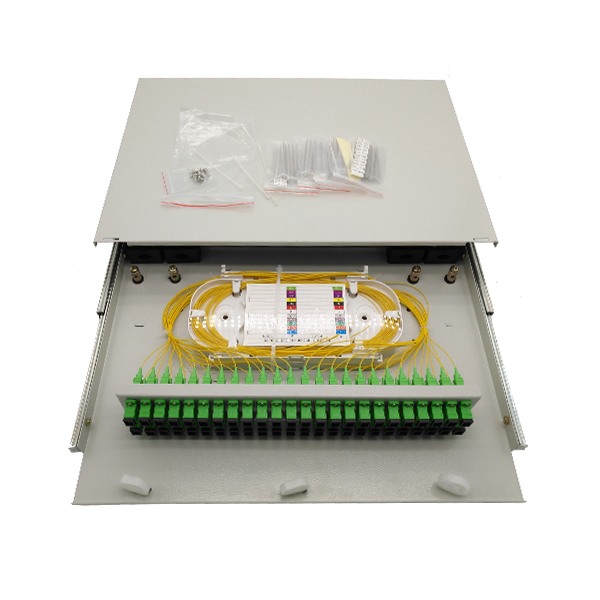

  • Metal sliding tray of the splice tray and bottom, easier and faster operation without open the cover, and take out for fiber management.
  • Clip cover design, dustproof and whole box closed not in operation.

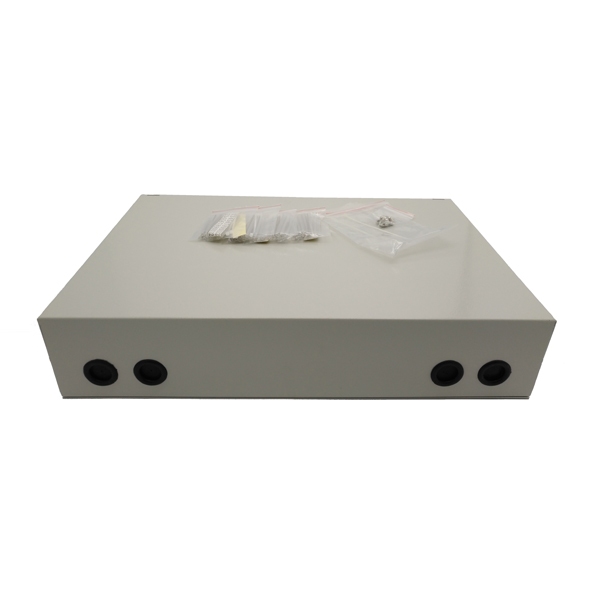

  • 4cable entry ports at back with rubber seal to prevent dust, each port with cable clamps and protection devices.
  • All the metal parts are stainless steel for long life span guarantee.



Specification

MODEL GPSR-2U-SA48
Dimension 430*300*2U mm
Max capacity 48 Cores
Adapter port SC SIMPLEX
Adapter qty 24pcs SC/APC
Thickness 1.2mm
Material Cold rolled steel sheet, with electrostatic spraying
Color Black, white
Cable entry 4pcs φ20mm
Net weight 6.2kg
