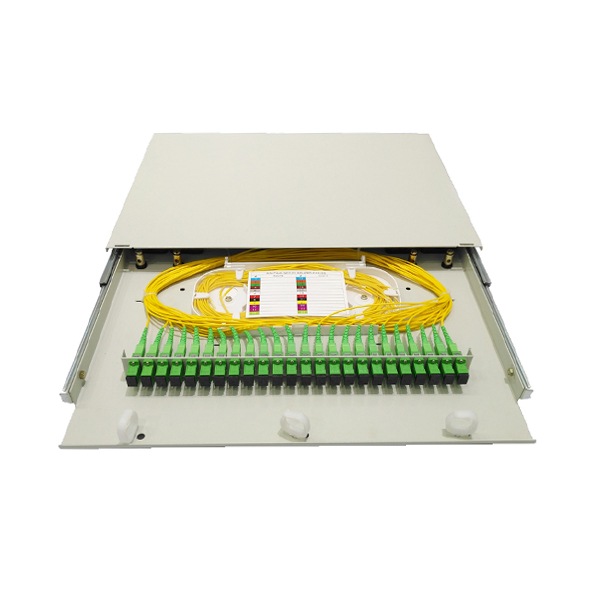

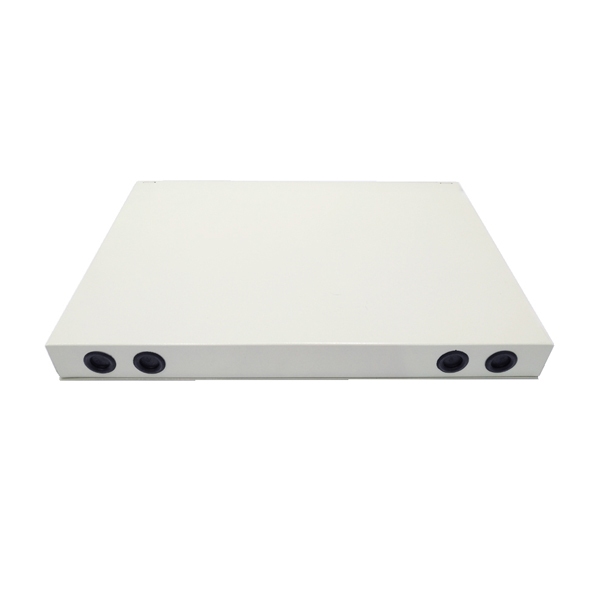

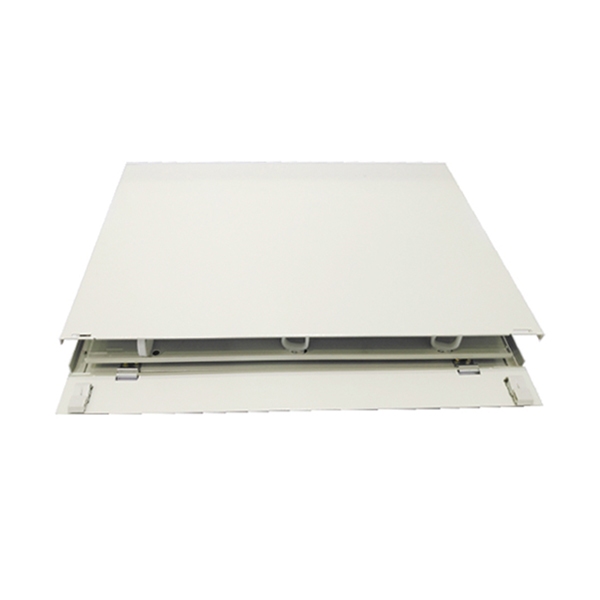

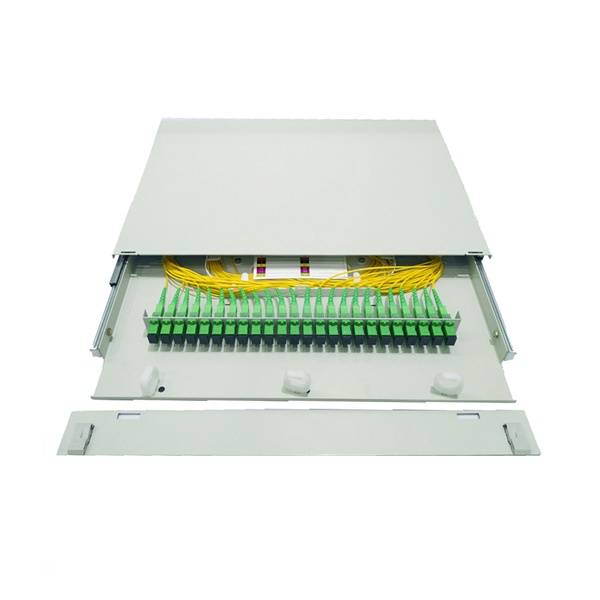

GPSR 1U 24 Port SC APC Patch Panel Fiber, White, 0.9mm Adapters, 19″ Rack Mount

This ODF box is 19inch standard size sliding drawer type Fiber optic patch pane, it is the auxiliary equipment for terminal wiring in optical fiber transmission communication network, and suitable for indoor optical cable splice directly and branch connection, and protection of the optical fiber.

Description

Features

  • Stainless steel metal slide tray, easy to slide out of the inner part for distribute,fusion and storage.
  • front door is locked by hinge, can be take off, which is dustproof and user friendly design.
  • 24port SC front adapter panel is fixed on the bottom,screws is provided, and there is splice tray each maximum 24fibers.
  • outdoor 4ports is seal with rubber and there is cable routing rods for better cable management.



Specification

Model Dimension(W*D*H)mm Max capacity(cores) SC adapter qty
GPSR-1U-SC24 430*300*1U 24 24SC
GPSR-1U-FC24 430*300*1U 24 24FC
GPSR-2U-SC48 430*300*1U 48 48SC
GPSR-2U-FC48 430*300*2U 48 48FC
GPSR-3U-SC96 430*300*3U 96 96SC
GPSR-4U-SC144 430*300*4U 96
