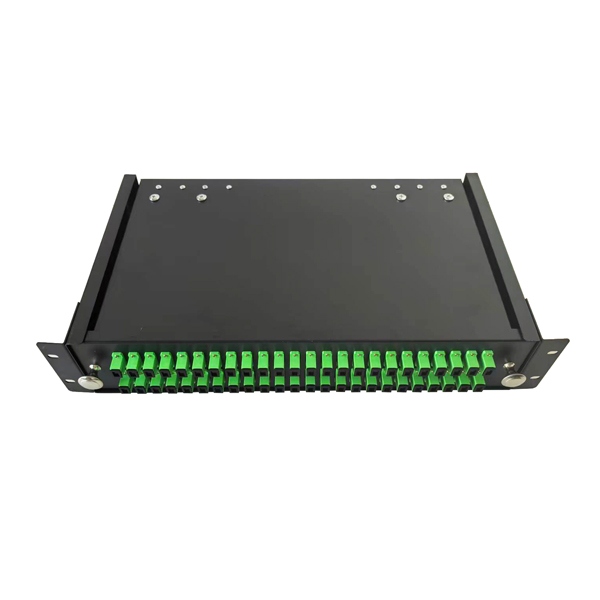

48-Port SC APC Fiber Patch Panel, 1U Rack Mount, 0.9mm Ceramic Sleeves, UPC to APC Conversion

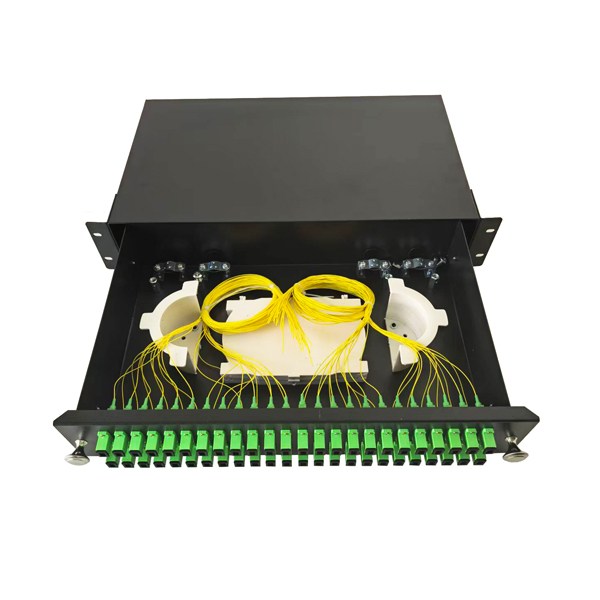

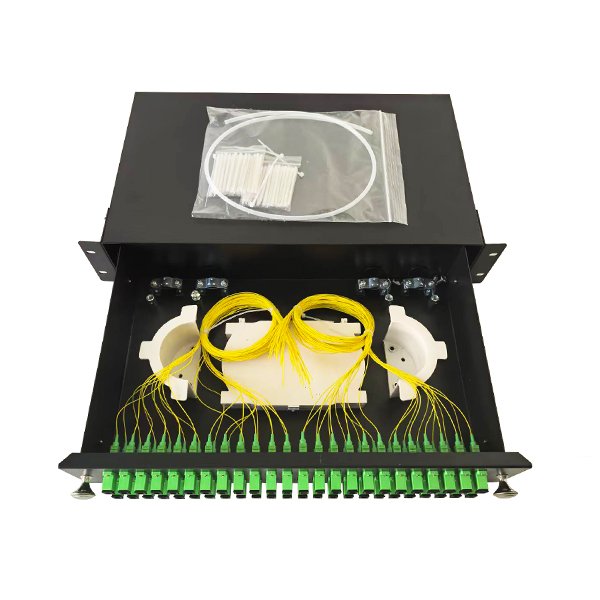

Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.

Description

Features

  • Applicable in the termination and 19” standard structure.
  • Rack mount in optical distribution frame ODF.
  • Suitable for FC ,SC, ST, LC, E2000 adapters.
  • 2mm Cold rolled steel sheet, with electrostatic spraying.
  • Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover.

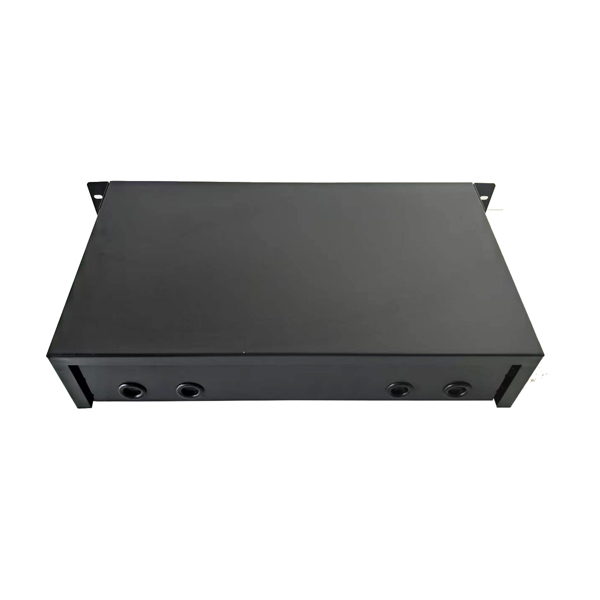

  • 4 Cable entry ports at back, diameter can be customized, normally 20mm.
  • Box color can be customized, white, black,
  • Silk print or laser mark both available.
  • All the metal parts are stainless steel for long life span guarantee.



Patch Panel Dimension

Model Dimension(W*D*H)mm Max capacity(cores)
GPSM-1U-SC24 482*300*1U 24
GPSM-1U-FC24 482*300*1U 24
GPSM-1U-2SC24 482*300*1U 48
GPSM-1U-E200024 482*300*1U 24
GPSR-2U-SC48 482*300*1U 48
GPSR-2U-FC48 482*300*2U 48
GPSM-2U-E200048 482*300*2U 48
GPSR-3U-SC96 482*300*3U 96
GPSR-4U-SC144 482*300*4U 144



Technical Specification

Width 482 mm
Depth 300 mm
Height 1U, 2U, 3U, 4U, etc.
Max capacity 144 cores
Material 1.2 mm cold rolled steel SPCC
Cable entry port 4 round port with rubber φ20mm
Cable exit port SC FC LC ST E2000 port
Adapter quantity 144 pcs
Material coating Powder
Operating temperature -10~+85°C
Standards TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E,  ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS
IP Rating IP30
Color White, black



Connector specification

Insertion loss <0.3dB
Return loss >65dB APC, >50dB UPC, >30dB PC
Mating durability 500 times
Wavelength 850-1550nm
Standards IEC61300, IEC61754, ROHS, etc.
