Description
Features

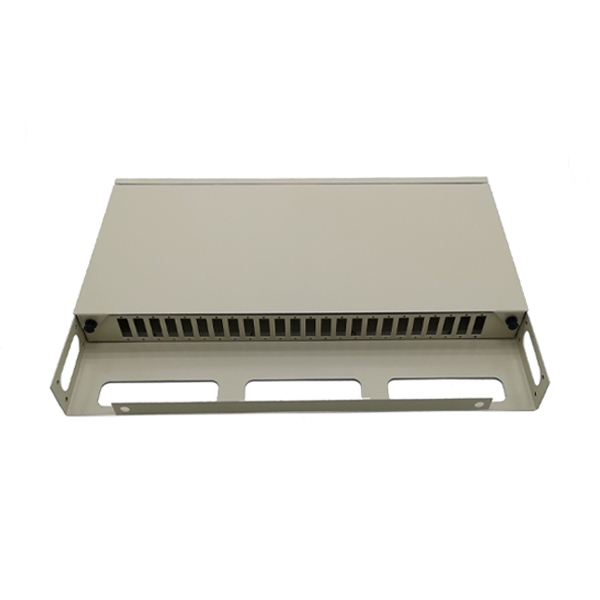

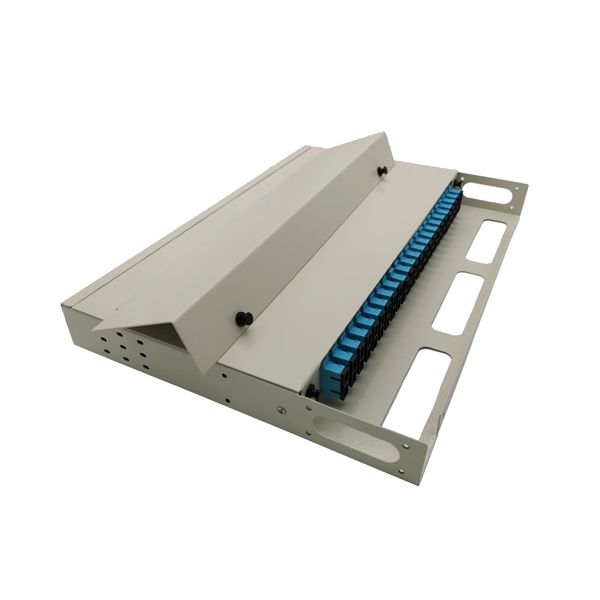

- Dummy drawer optical fiber terminal box.
- Applicable in the termination and 19” standard structure.
- Rack mount in optical distribution frame ODF.
- Suitable for FC,SC,ST,LC,E2000 adapters.
- Cold rolled steel sheet, with electrostatic spraying.
- Max capacity; 48Cores 1U SC Duplex.
- Artistic appearance, easy for pasting signs.
Patch Panel Structure

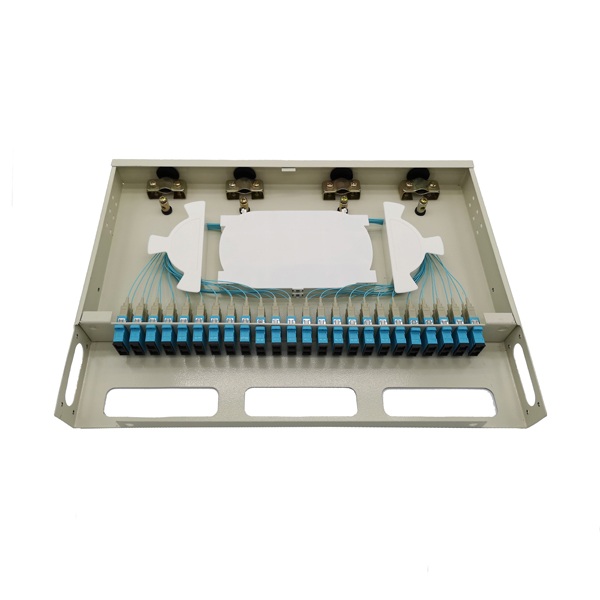

- Include 3 parts: box body, internal components, optical fiber connector protector.
- Box body shell convenient to open and install, have high voltage grounding device for the metal.
- Internal components mainly 3 items:
- support: the internal structure body, used for the internal support;
- Splice tray: to store optical fiber connector, protection pieces and the remaining fiber, the remaining optical fiber length≥1.6m, bend radius≥37.5mm, also have remark to identify the fiber;
- fixed device: to fix the optical cable sheath, strengthen member and wiring pigtail, protection parts of fiber optic connectors: sleeve and cable rubber gland.
Specification
| Model | Dimension
(mm) |
Max capacity
(core) |
Carton size(mm) | Qty/
carton (pc) |
G.W
(kg) |
| GPRF-1U-SC24 | 430*300*1U | 24 | 485*420*350 | 5 | 25 |
| GPRF-1U-FC24 | 430*300*1U | 24 | |||
| GPRF-1U-2SC12 | 430*300*1U | 24 | |||
| GPRF-1U-2SC24 | 430*300*1U | 48 |
