Description
Features

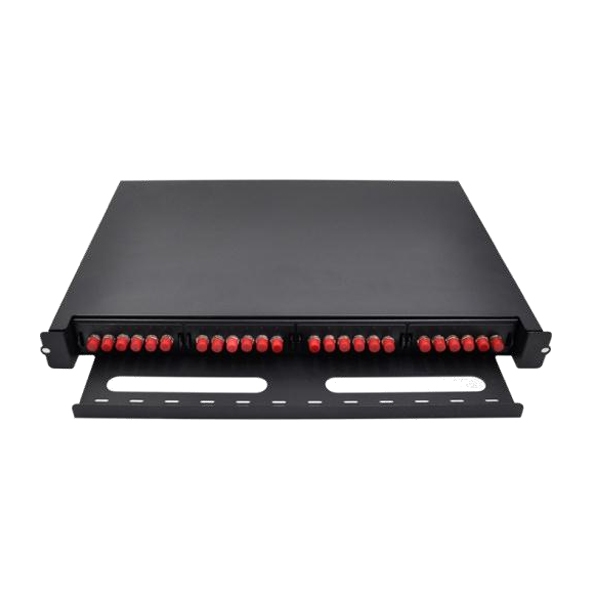

- Drawer style design, using three smooth guide rails for more flexible and smooth operation;
- Can install 4 detachable 6-port fiber optic adapter panels, with a maximum managed fiber core count of 96 cores;

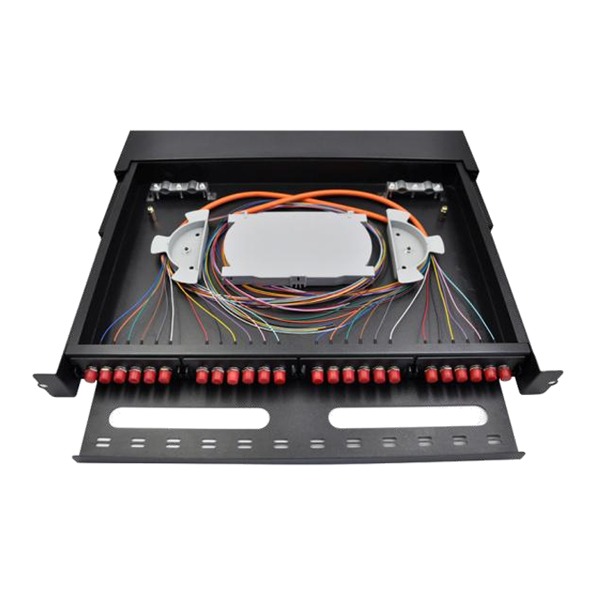

- Conventional configuration with 2 splice trays up to 48 core fusion splicing; 4 sets of thinner splice trays can be pre-installed to achieve 96 cores.
- The main body is made of high-quality cold-rolled steel plate, with a surface spray coating and a thickness of 1.2mm;
- Manage the fiber optic cables in front area with a frame, which meets various wiring methods;
- The adapter panel adopts a snap on design and has passed ROHS environmental testing, making it easy to install and remove.
Technical Parameters
| Model | GPRD-0124 |
| Dimension | 430*362.4*1U mm |
| Max capacity | 96 cores |
| Adapter qty | 24FC LC ST, 48 LC duplex |
| Splice tray qty | 2pcs 24cores tray |
| Color | Black |
