GPRD 24 Port SC UPC, 1U Rack, Metal, 48-Core, High Performance

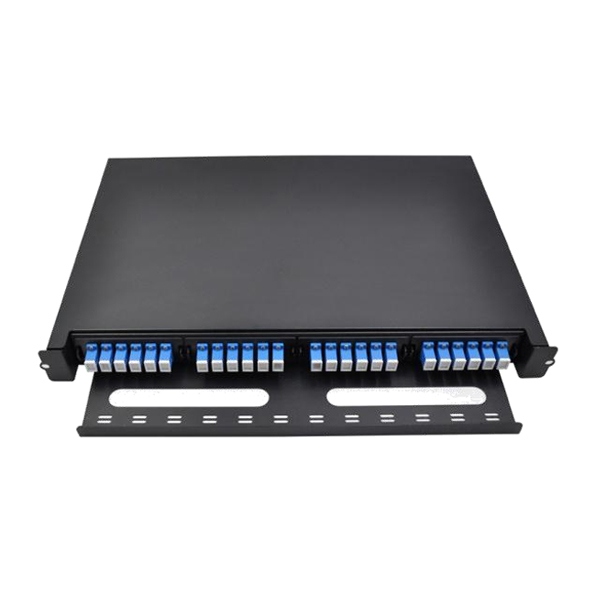

1U pull-out drawer type fiber optic patch panel is used for connecting fiber optic backbone and distribution cables in data center distribution areas, installed in 19 inches racks and cabinets; This type of fiber patch panel 1U can hold 48 LC duplex adapters or 24 port FC SC ST adapters.

Description

Features

  • Drawer style design, using three smooth guide rails for more flexible and smooth operation;
  • Can install 4 detachable 6-port fiber optic adapter panels, with a maximum managed fiber core count of 96 cores;

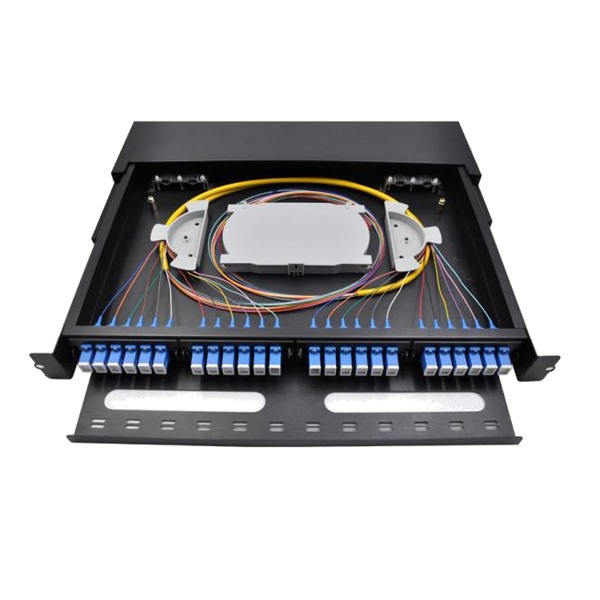

  • Conventional configuration with 2 splice trays up to 48 core fusion splicing; 4 sets of thinner splice trays can be pre-installed to achieve 96 cores.
  • The main body is made of high-quality cold-rolled steel plate, with a surface spray coating and a thickness of 1.2mm;
  • Manage the fiber optic cables in front area with a frame, which meets various wiring methods;
  • The adapter panel adopts a snap on design and has passed ROHS environmental testing, making it easy to install and remove.



Technical Parameters

Model GPRD-0124
Dimension 430*362.4*1U mm
Max capacity 96 cores
Adapter qty 24FC LC ST, 48 LC duplex
Splice tray qty 2pcs 24cores tray
Color Black
