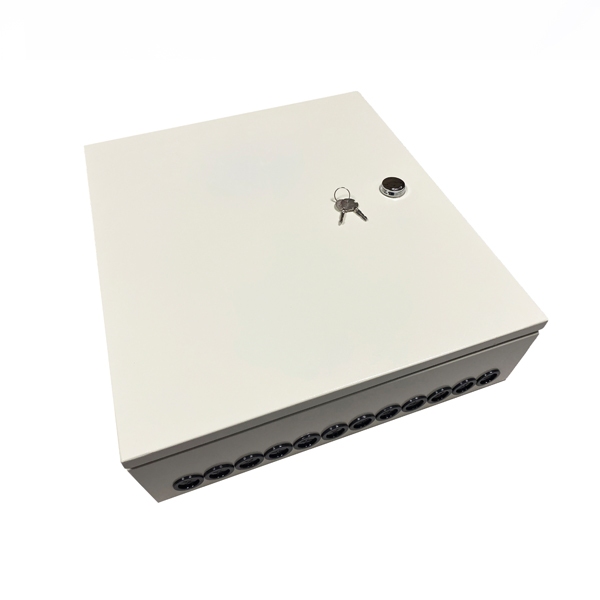

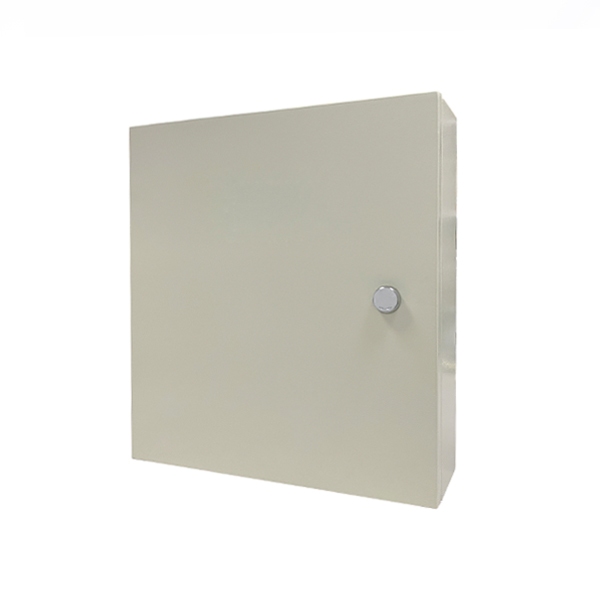

High-Density ODF GPC05B Wall Mount LC/FC/SC Compatible, Corrosion-Resistant

GP(05)-B series optical distribution box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.

Description

Features

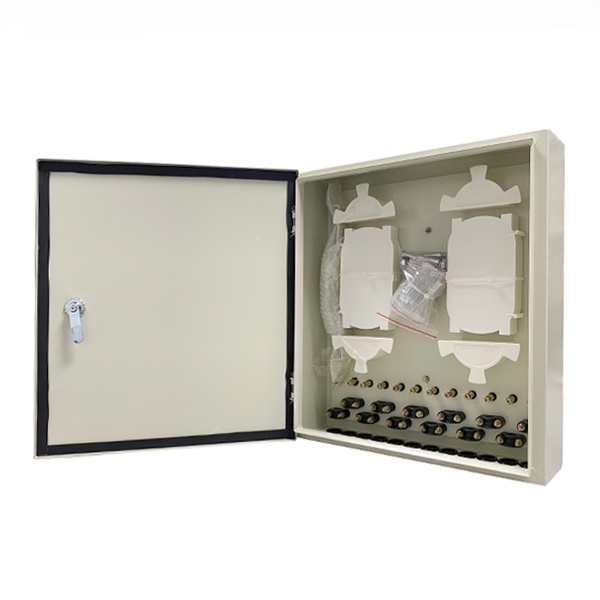

  1. It is composed of case body, fiber optical splice tray and adaptor fixing frame.
  2. It is devided into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtailand another links with patch cord. Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
  3. Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than40mm.
  4. Adopt 6 ports adaptor fixing frame to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.

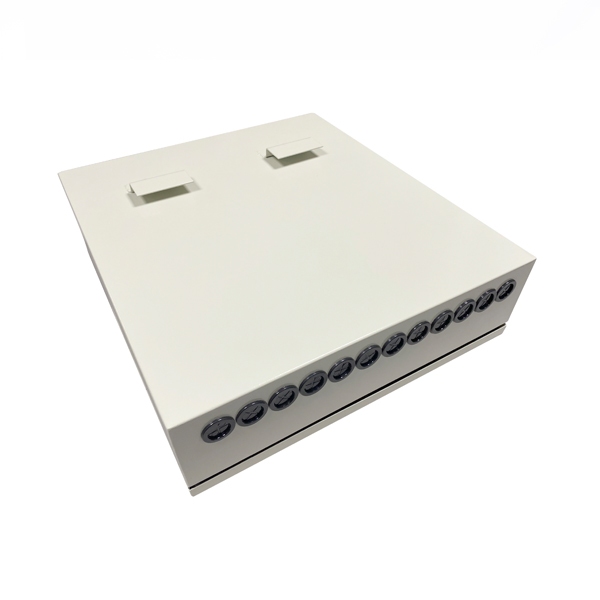

  5. Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.



Installation process

  1. Open the door of the box, lead the optical cable into the distribution box, cut off cable about 1m, and take proper length (about. 1.5m),then strip the outer protective sheath. Leave 85mm cable reinforced core and cut off surplus part, insert the reinforced core into the pressboard, then tighten it.
  2. Insert the optical cables peeled into the PVC tube (about 0.9m),and twist them around the fiber storage trays, fix it with nylon tie at the inlet of the splice tray.
  3. Insert adaptors into the 6 ports adaptor fixing frame, then fix the frame, connect the adaptors and pigtails, hold the pigtail around the two pillar which above and blow the trays.
  4. Take the splice tray out of the box, protect the fusion and connection point with heat shrinkable sleeve, then put it in the groove of splice tray, put the cover back on the tray. Move back the splice tray and fix it on the box with screws.
  5. Lead the patch cord into the box through the special rubber parts and connect with adaptors, the other end of patch cord links with optical devices.
  6. Close the box, mount on the wall after sealing confirmed.



Specification

Model GP(05)B-24 GP(05)B-48
Dimension (A*B*C)  455*405*80mm 455*405*120mm
Max.Capacity 24cores for SC,48cores for LC 48cores for SC,96cores for LC
Cable ports 2in/2out 4in/2out
Cable diameter Φ6-φ24mm Φ6-φ24mm
Adapter SC/FC/ST
Main material 0.8mm Cold rolled steel,
Weight 6.38KGS 7.2KGS
