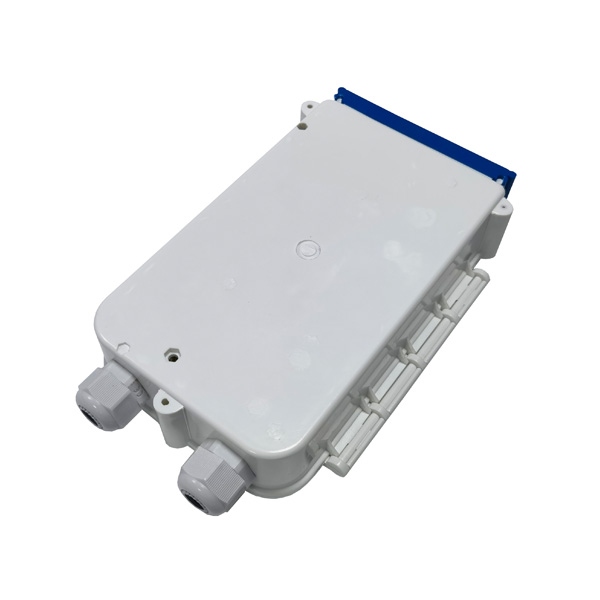

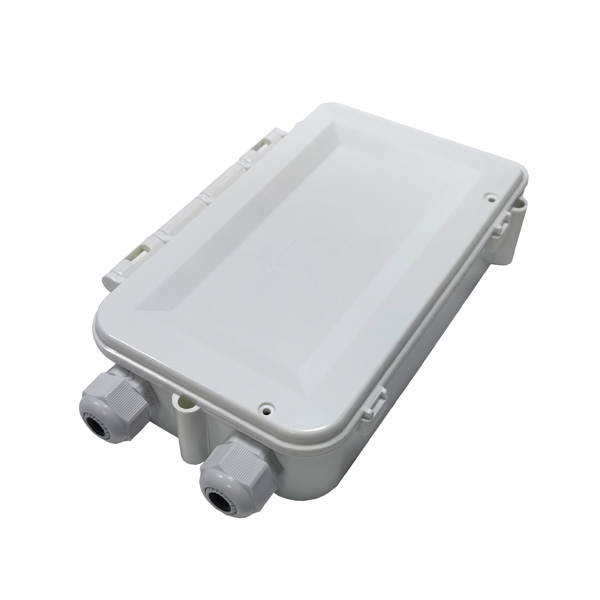

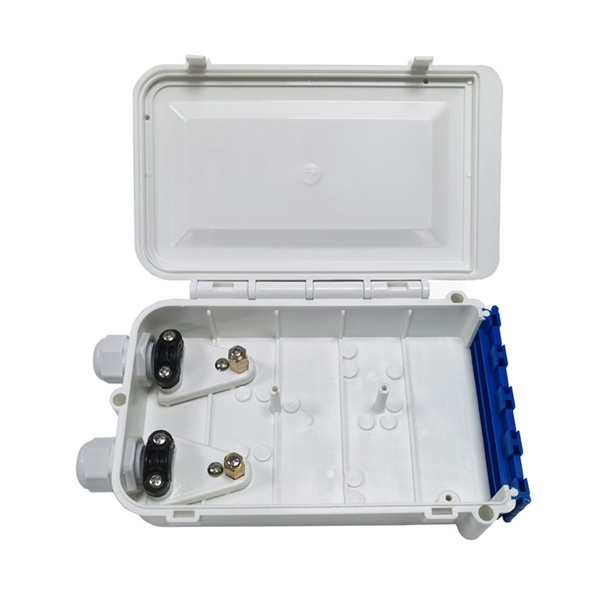

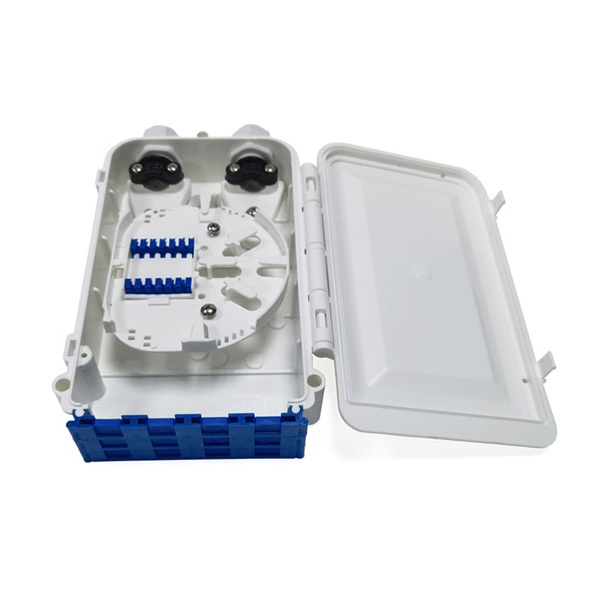

GP20-T02A fiber terminal box can be used as a fiber splice box for fusion only, maximum 12 core bunchy fibers, also can be used as a patch distribution box with 12 port SC or FC /ST adapters and pigtails to household termination. All the fiber optic termination box conform the standard and relative regulations of Communications industry of The People’s Republic of China: VD/T 925-1997.
Features
Specification
| Model | GP20-T02A |
| Dimension | 200*120*46mm |
| Cable inlet | 2pcs PG16 cable glands |
| Cable diameter | ø8-ø16mm |
| Cable outlet | 12 ports SC /FC/ST couplers / adapters |
| Max capacity | 12 cores bunchy fiber |
| Material | Plastic ABS |
| Color | White |
| Operating Temperature | -25- +40 ℃ |
| Storage temperature | -25 ~ +55℃ |
| Relative humidity | ≤85% (30 ℃) |
| Life span | 20 years |
EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.
TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.
Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.
Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.
If urgent, please CHAT ON WhatsApp:+8618688982406
Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.
Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.
High-precision testing equipment and top industry quality control system ensure high quality standards.
Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
The more details, the better offer, will reply you in 24 hours.
