Description
FTTH Patch Cord Features
- Multiple sizes of copper cable wires are available for selection, suitable for different power requirements
- Single mode fiber optic cable with 1-core and 2-core configuration, flexible configuration
- Pre made fiber optic connectors, suitable for on-site assembly without the need for other operating tools, convenient and fast
- Low loss, stable transmission, not easily damaged
- Low voltage cabling engineering, fiber optic integrated power supply cabling saves costs
- Suitable for pipeline laying or overhead laying
FTTH Patch Cord Specification
| Item | 2 Cores Fiber Optic Cable With Power Wires |
| Interface | SC UPC |
| Fiber count | 1 core, 2 cores |
| Copper wire diameter | 2×0.5,1.0 or 1.5mm |
| Fiber type | Single mode 9/125um |
| Cable color | Black |
| Insertion loss | <0.3dB |
| Return loss | >50dB |
| Working temperature | -40~85℃ |
2 Core Fiber Optic Cable Patch Cord Details
FTTH patch cord adopt high quality ceramic ferrule and single mode fiber core, ensure fast transmission rate in long distance in low loss, no electric spark.
The power cord adopts oxygen-free copper core, which ensures stable transmission, is durable and not easy to damage. A variety of specifications and diameters are available, and it is coated with a fireproof layer inside.

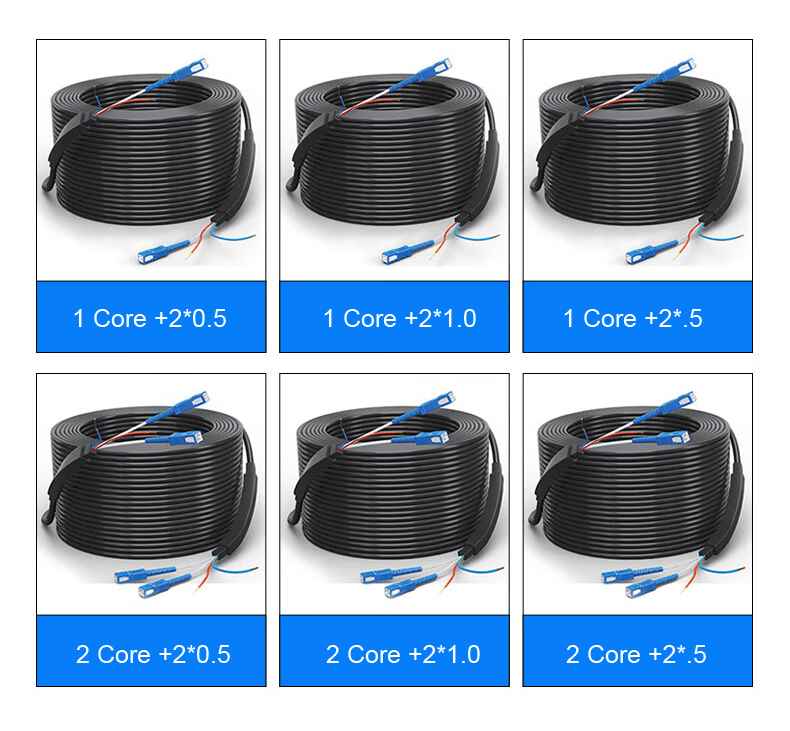

| RW | 1core 2*0.52 | 1core 2*1.02 | 1core 2*1.52 | 2core 2*0.52 | 2core 2*1.02 | 2core 2*1.52 |
| Power（220V） | 700W | 1540W | 2310W | 700W | 1540W | 2310W |
With above power cords, Yingda provide all types of fiber patch cable with 1 core, 2 core single mode fiber composite cable.
