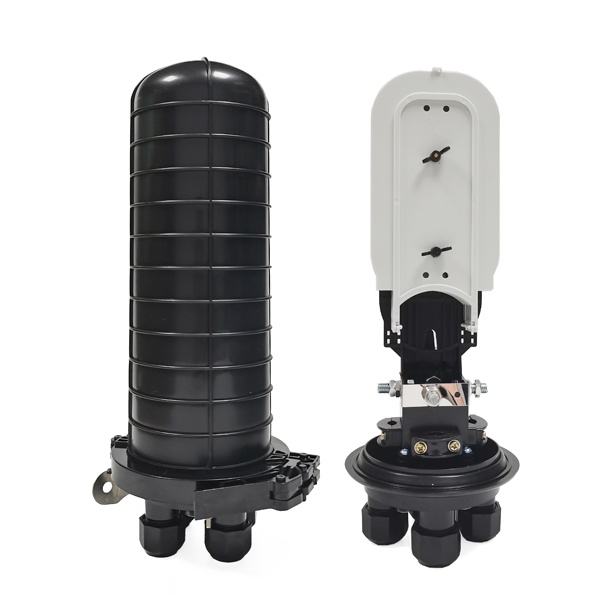

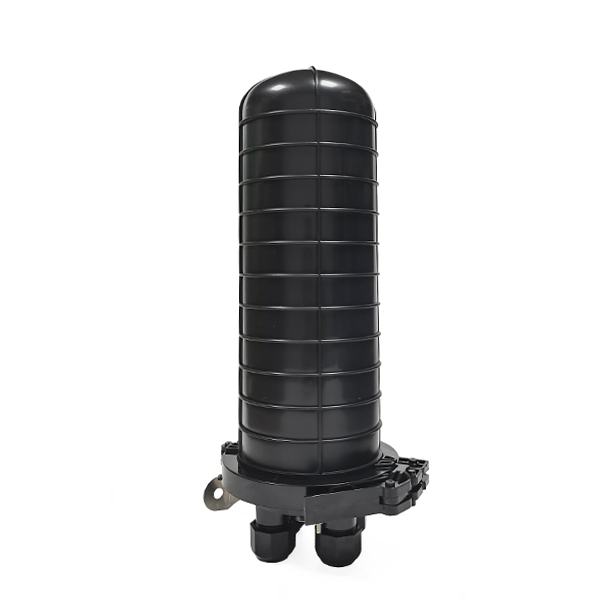

The GJSM3-JF Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four round entrance ports. The shell of the product is made from MPP. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by thread plastic device. The closures can be opened again after be sealed, reused again without changing the sealing material.
Transportation and Storage
(1) The package of this product adapts to any transportation ways. Avoid collision, drop, direct shower of rain & snow and insolation.
(2) Keep the product in a draughty and dry store, without corrosive gas in.
(3) Storage Temperature Range: -40℃ ~ +60℃.
Specification
| Item | GJSM3-JF |
| Dimension (D*H) mm | Φ 190×410 |
| Weight (Kg) | 2.3 |
| Diameter of Cable(mm) | Φ7~ Φ22 |
| No. of Cable Inlet/Outlet | four |
| Number of Fibers per Tray | 24（single core） |
| Max. Number of Trays | 4 |
| Max. Number of Fibers | 96（single core） |
| Sealing of Inlet/Outlet ports | Thread plastic device |
| Sealing of Shells | Silicon rubber |
