Description
Product Feature
- All functional indicators are in line with the national YD1-2004 standard for distribution box.

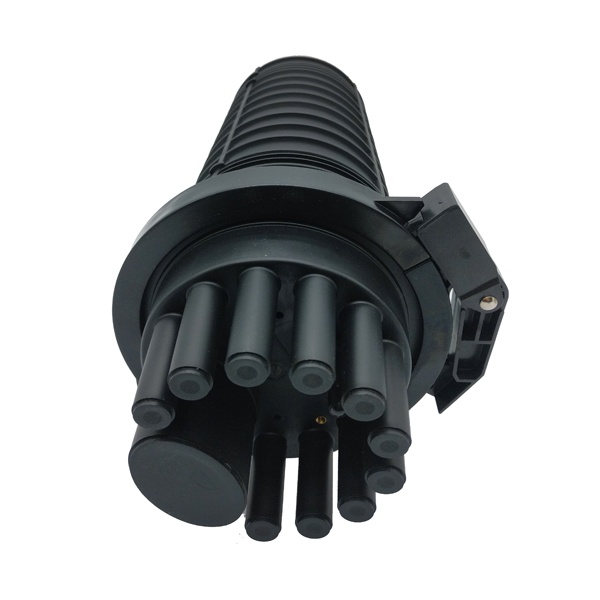

- Four-in and four-out cable ports; there are 1 large and 6 small circular holes, which can enter and exit the Φ7~Φ22 optical cables.

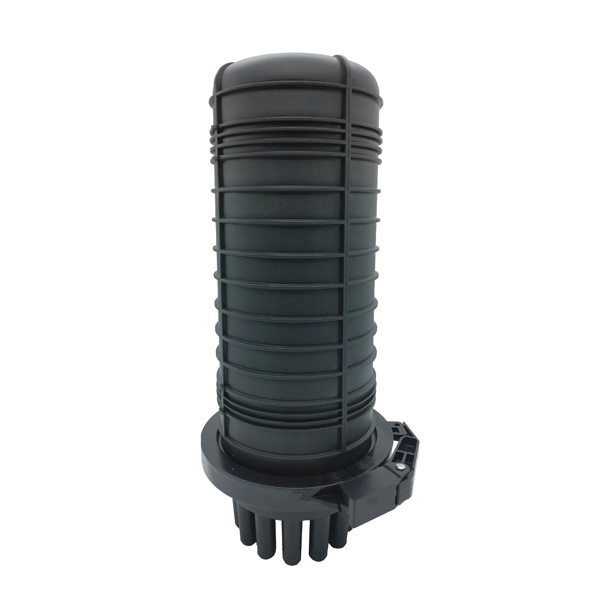

- The outer box body is made of high-strength engineering plastics. It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.

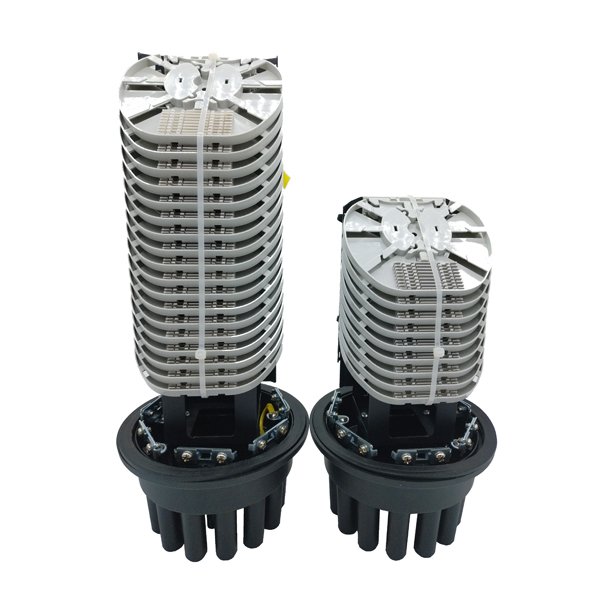

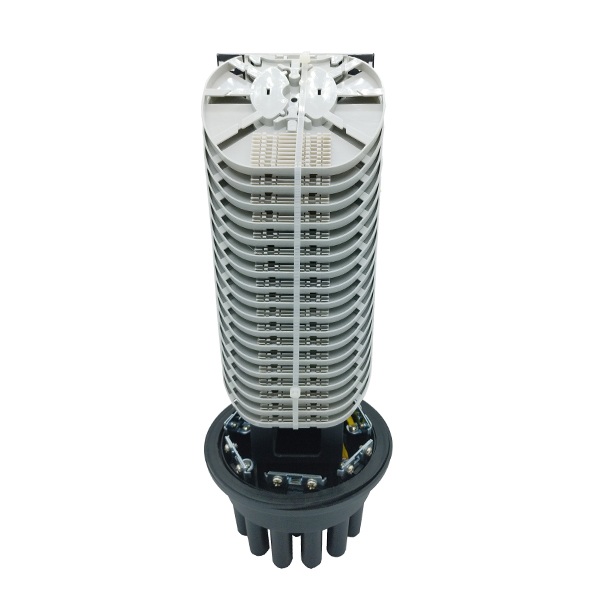

- Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
- The splice tray is equipped with splicing slots and a PLC splitter holder, which can be configured at any time according to the needs of direct or divergent connection.
Technical Index
- Fiber radius of curvature: ≥40mm
- Optical disk additional loss: ≤ 0.01dB
- Temperature Range: -40°C ~ +70°C
- Anti lateral pressure: ≥2000N / 10 cm
- Shock resistance: ≥20N.m
- Protection level: IP65
PRODUCT SPECIFICATION
| type: | G JS-M 7/RS-B-288 | G JS- M7/RS-B-144 |
| size(mm) | Ø230*440 | Ø230*320 |
| max splitting | 1:4(1pcs)and1:8(1pc | 1 :4(1 pcs )and1 :8 (1 pcs ) |
| cable diameter(mm ) | Ø7~ Ø22 | Ø7 ~Ø2 2 |
| splice try capacity: | 16 ( singe core ) | 16( singlie ) |
| max splice tray No. | 18 | 9 |
| max capacity: | 288(single core) | 144 (single core ) |
| sealing type: | silicon rubber | silicon rubber |
