Description
Features
- The body is made of high quality engineering plastic with good strength;
- With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.

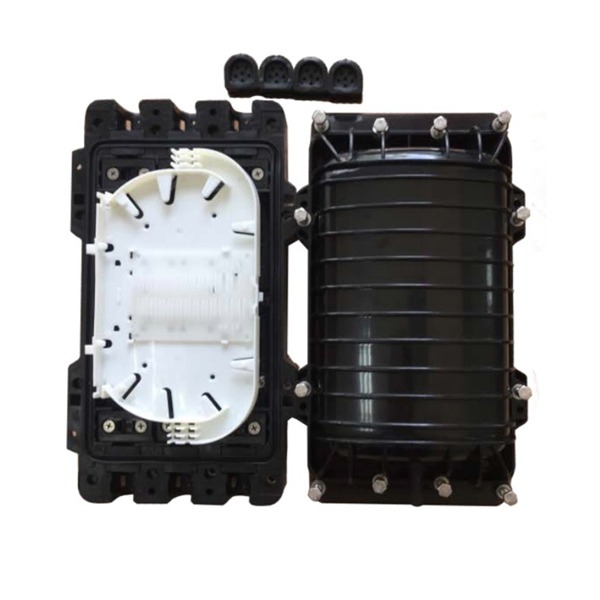

- Be equipped with 5 splice trays (each capacity is 24 cores) (Pic#4 for details);
- Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space.
Technical Index
| Model No. | GJS-H120 | Color | Black |
| Capacity | 120 cores | Protection Level | IP68 |
| Material | PC, PC+ABS,ABS | Inlet/outlet | 3+3 |
| Dimension(MM) | 369*186*146 | Sealing Method For Inlets | Screw mechanical |
| Inlet cable port | Ф14.5，Ф12，Ф9.5 | Outlet cable port | Ф14.5 ，Ф12 ，Ф9.5 |
