Description
Features

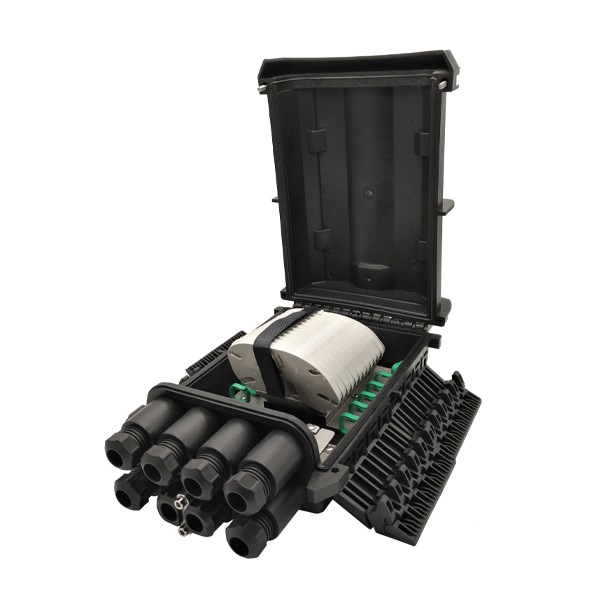

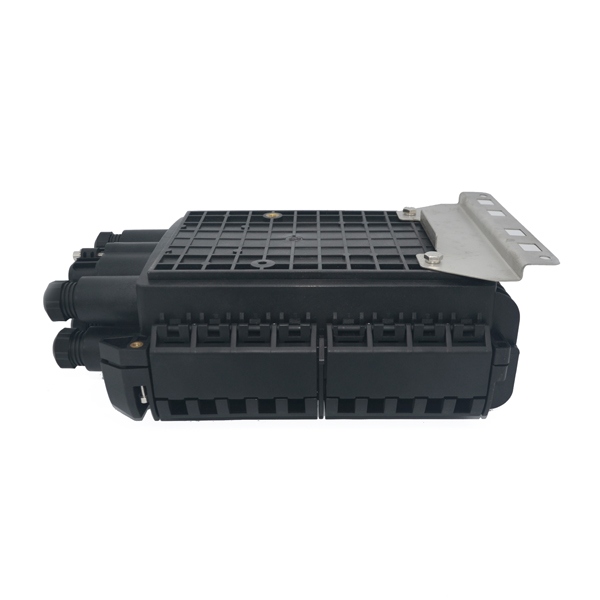

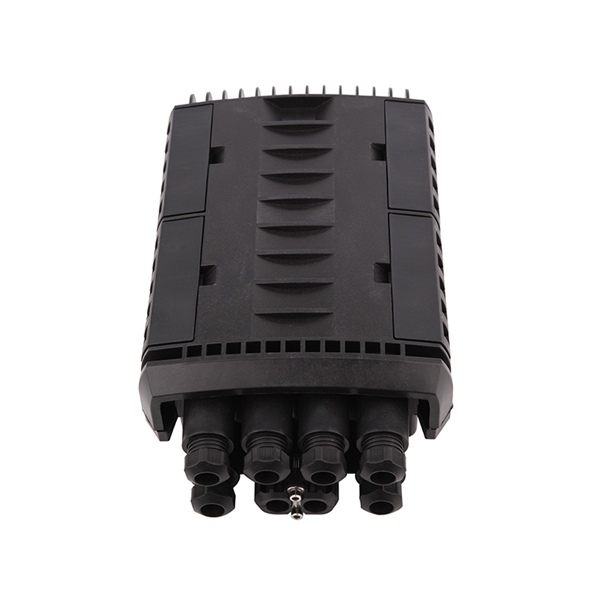

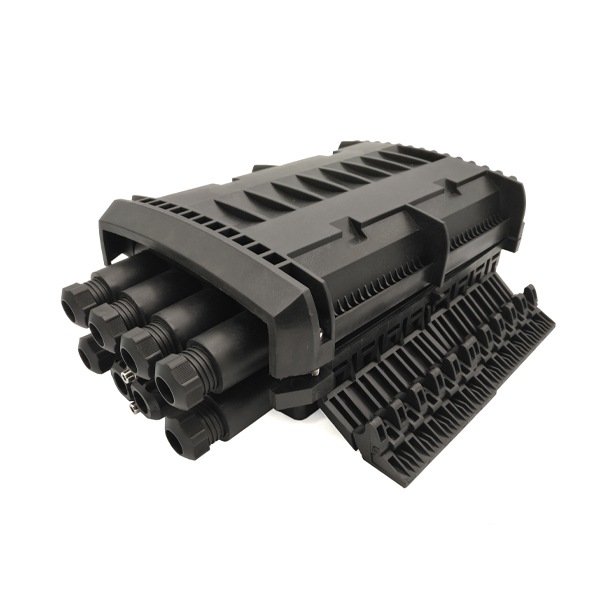

- Total enclosed structure.
- Material: ABS, wet-proof, water-proof, dust proof, anti-aging, protection level up to IP68.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution, etc. all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor, installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
configuration
| MateriaI | size | Max capacity | Nos of PLC | Nos of Adaptor | weight | ports |
| Strengthen
Polymer Plastic |
A*B*C(mm)
385*240*128 |
Splice 288 Fibers
(12trays,24 fiber/tray) |
/ | / | 4.8kg | 4 in 4out |
