Description
The scope of application is: aerial, underground, wall-mounting and wall-mounting in duct and handhole. The ambient temperature ranges from -40 to +65℃.
Features
- Advanced internal structure design
- Easy to re-enter, it never requires re-entry tool it

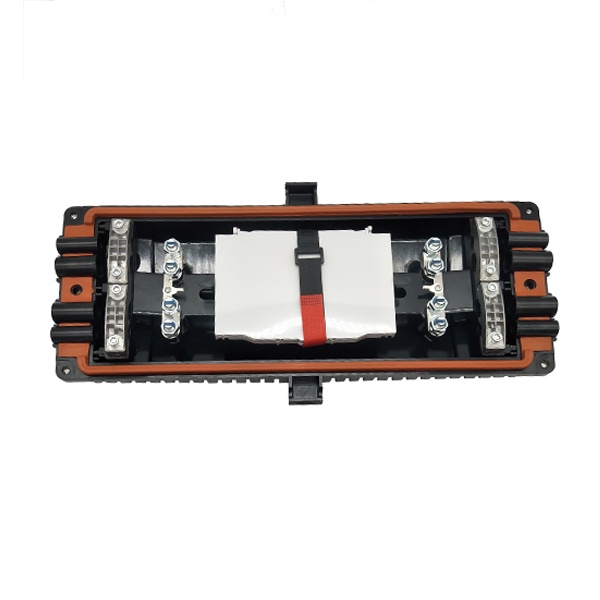

- The closure is spacious enough for winding and storing fibers
- Fiber Optic Splice Trays (FOSTs) are design in SLIDE-IN LOCK and its opening angle is about 90°
- The curved diameter meets with international standard
- Easy and fast to increase and reduce FOSTs
Application
- Suitable for bunchy& ribbon fibers
- Aerial, underground, wall-mounting, handhole-mounting
- Pole-mounting and duct-mounting
Dimension and capacity
| Outside dimension (LxWxH) | 450×220×110(mm) |
| Weight (excluding outside box) | 2800g-3300g |

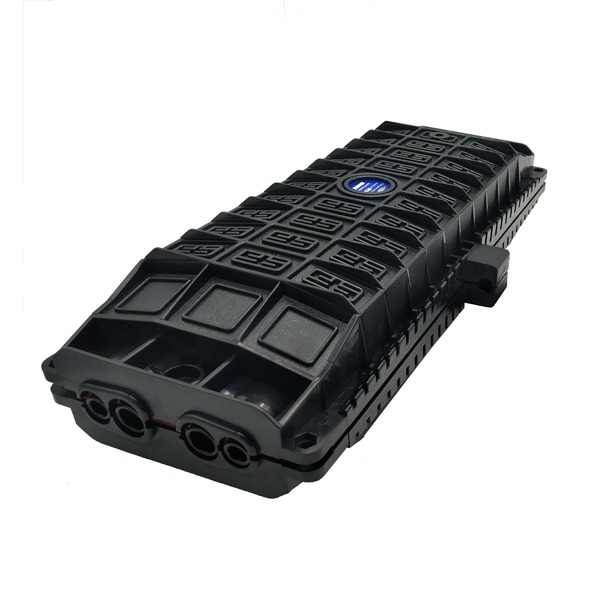

| Number of inlet/outlet ports | 4 (pieces) on each side (total 8 pieces) |
| Diameter of fiber cable | Φ7—Φ20(mm) |
| Capacity of FOSC | Bunchy: 12—96(Cores) Ribbon: max. 144(Cores) |
