Description
The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.
Features
- Advanced internal structure design.
- Easy to re-enter, it never requires re-entry tool it.
- The closure is spacious enough for winding and storing fibers.

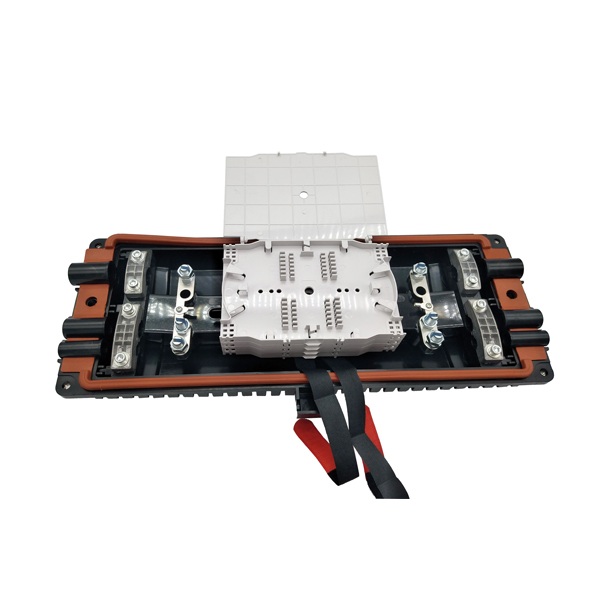

- Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN LOCK and its opening angle is about 90°.
- The curved diameter meets with international standard.
- Easy and fast to increase and reduce FOST.
- Straight-through for uncutting and branching for cutting the fiber.
Specification
| Model | GJS-H004 |
| Dimension | 450*220*110mm |
| Max capacity | 96 Cores |
| Splice tray qty | 4 pcs |
| Splice tray capacity | 24 fibers |

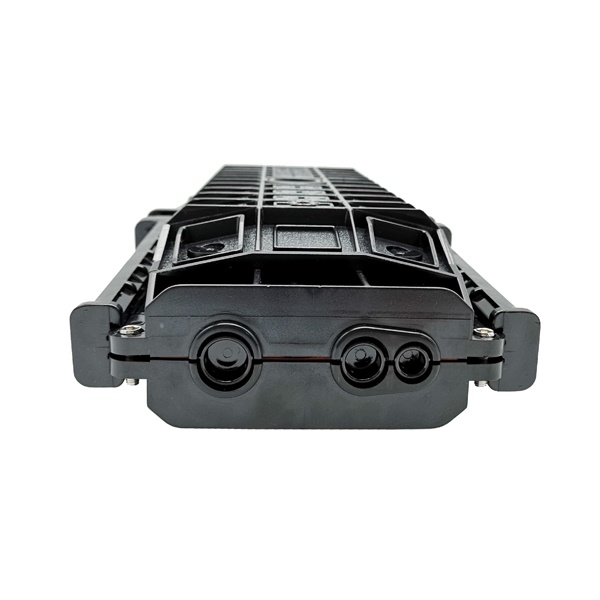

| Cable ports | 3in 3 out |
| Cable diameter | 8-23mm |
| Sealing | Rubber seal |
Standard accessory:
- Hexagon wrench*2, nylon ties, special plastic wrench, heat shrink protection sleeve, hanging hook, labeling paper, insulation tape, earthing wire, seal tape, sand paper, etc.
Optional accessory:
- Air valve, buffer tube, pole mount kits, wall mount kits, etc.
