Description
Features
- Advanced internal structure design
- Easy to re-enter, it never requires re-entry tool it

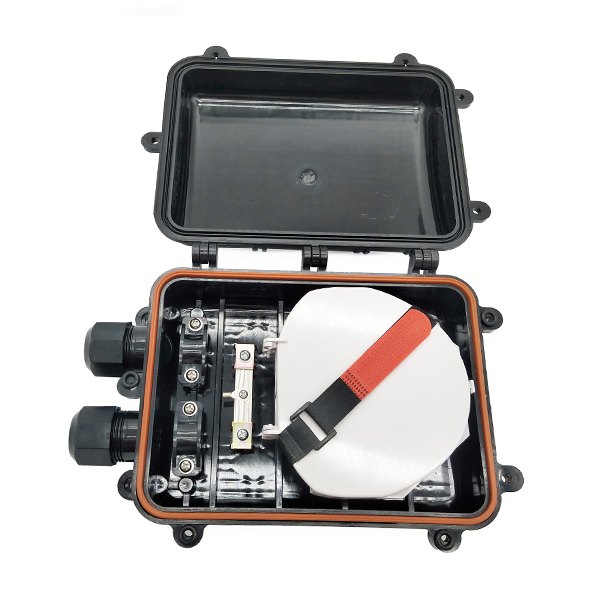

- The closure is spacious enough for winding and storing fibers

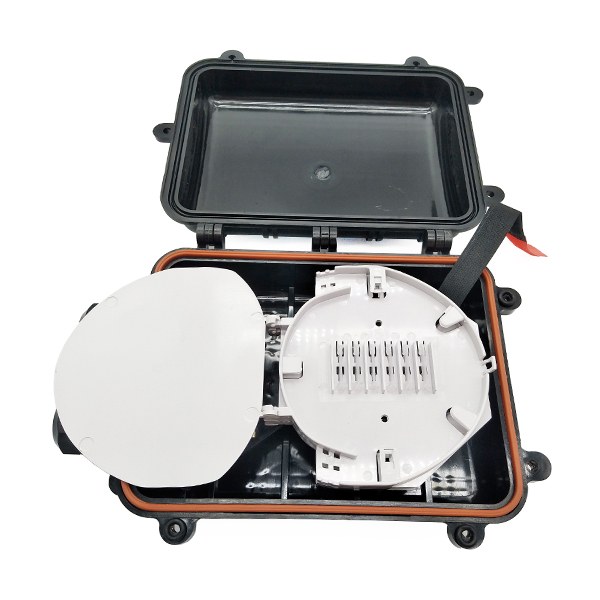

- Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN LOCK and its opening angle is about 90°
- The curved diameter meets with international standard
- Easy and fast to increase and reduce FOSTs
Application
- Suitable for bunchy& ribbon fibers
- Aerial, underground, wall-mounting, handhole-mounting
- Pole-mounting and duct-mounting
Specification
| MODEL | GJS-H003 |
| Dimension (L*W*D) | 280x200x90mm |
| Max capacity | 96 Cores |
| Splice tray qty | 4 pcs |
| Splice tray capacity | 24 fibers |

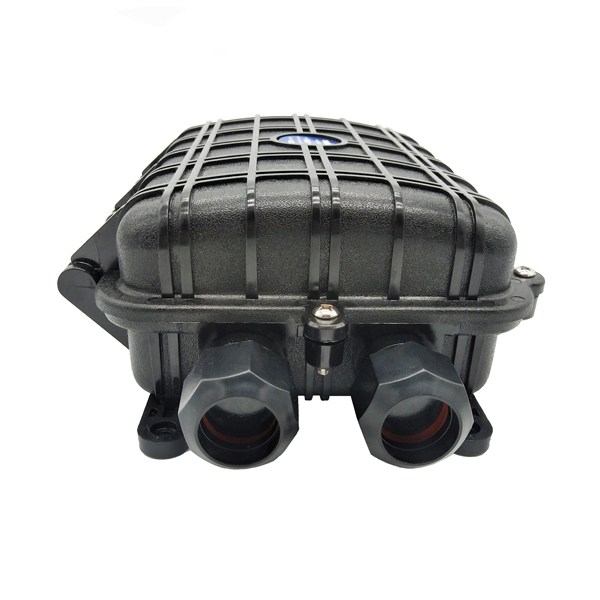

| Cable ports | 2 cable glands |
| Cable diameter | Φ8-14mm |
| Weight | 1.5kg |
