Description
Features

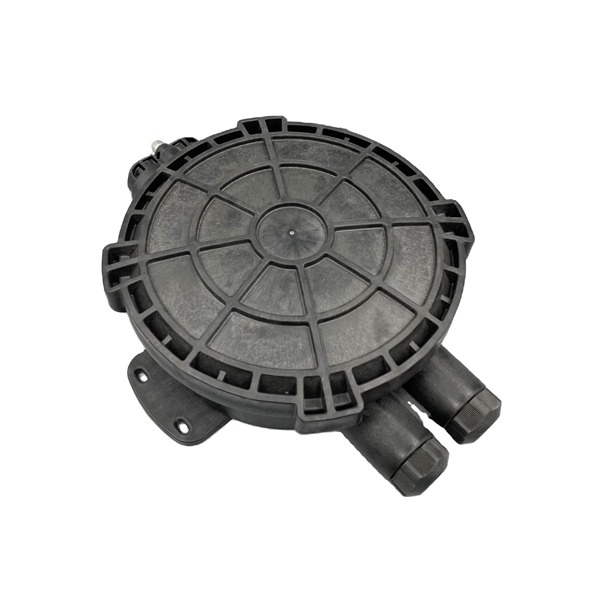

- The closure casing is made of quality engineering PP plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.

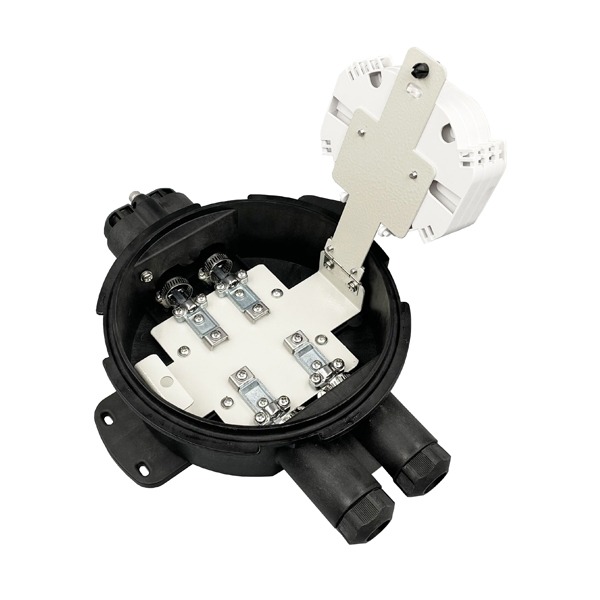

- The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
- The closure is of small volume, big capacity and convenient maintenance. The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
Applications
- Used for direct transmission of outdoor cable in aerial, duct and direct buried application.
- Used for branching connection and protect the joint.
Configuration
| Material | Size | Max Capacity | Diameter of Cable | Weight | Number of Cable Entrance/Exit |
| Strengthen PP+GF | A*B*C(mm) 295×220×90 | Splice 36 Fibers (3 trays,12 core/tray) | φ ：17.5mm | 1.55kg | 2 in 2 out |
