Description

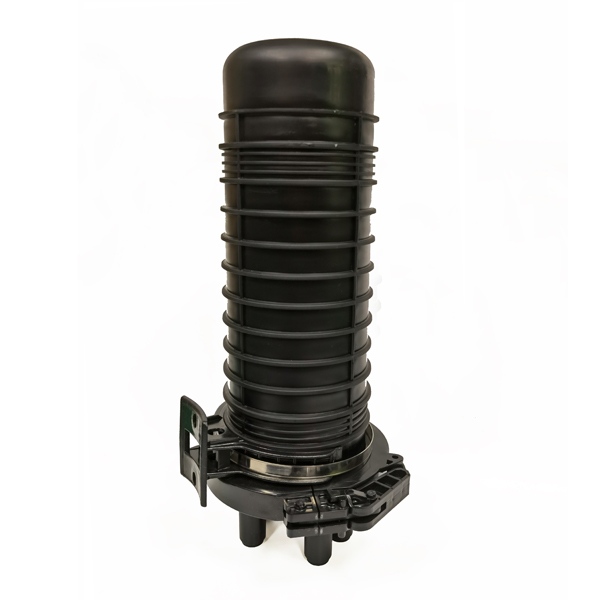

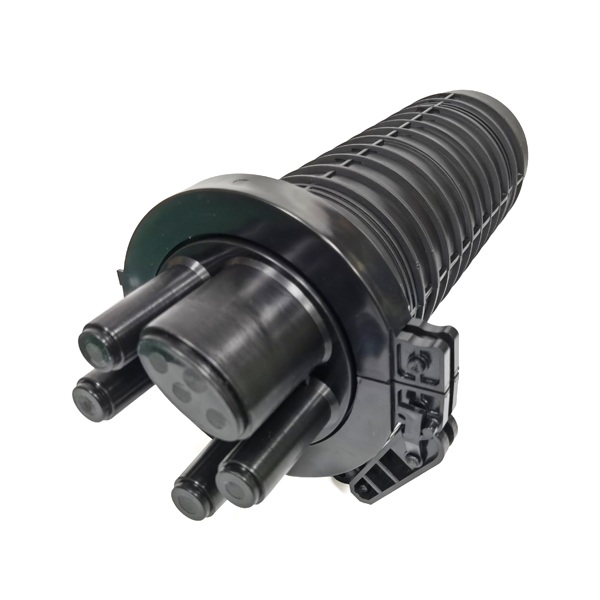

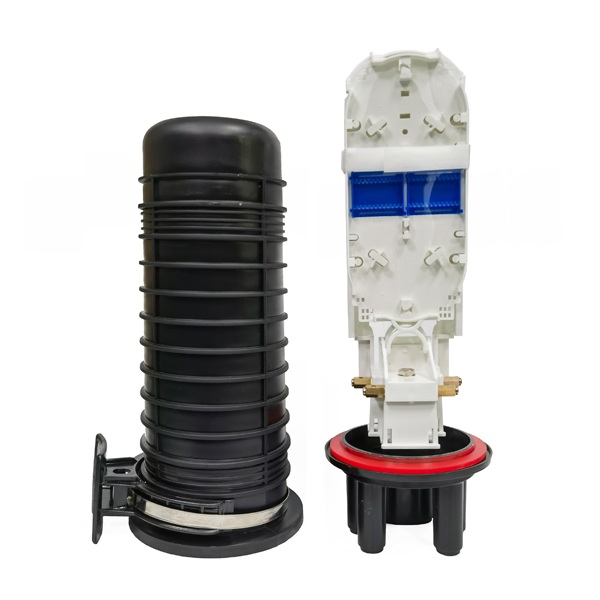

The closure can be used in duct, buried, overhead..etc.
Features
- High quality impact material.pp and internal is ABS.
- Designed for ftth with adapter if need.
- Fiber storage with big basket.

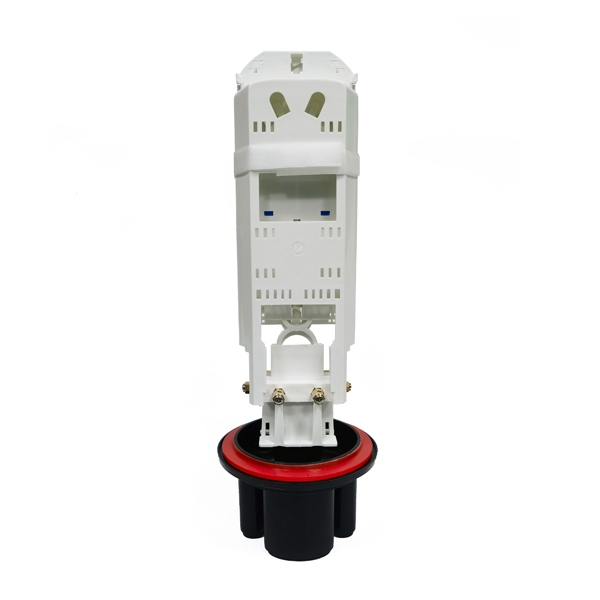

- Modular fiber management system.
- Sealing way of cables: heat shink seal cable port+mechanical shell.
- Quality warranty: 2 years.
- Life span:more than 25 years.
- IP rating is IP68
Specification
| Model | GJS-DR02A |
| Dimension | 130×Ø 440mm |
| Weight | 2kg-3kg |
| Max capacity | 96cores single fiber |
| Splice tray capacity | 12/24cores |
| Max trays | 4pcs |
| Ports | 5port (1oval+4round) or 6 round ports. |
| Suitable cable diameter | φ8-20mm |
| Material | PP+ABS |
Standard accessory:
- dome, cover, clamp,tray, buffer tube, nylon tie, cable tie, cable sealing gromments, aerial mount kits, number mark, sand paper, wrench, silver paper, Hexagon wrench, split card, grounding wire, heat shrink sleeve, etc.
