Description

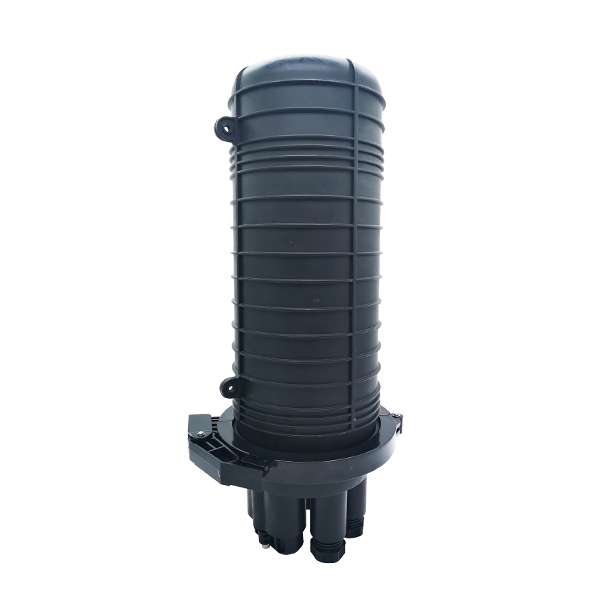

GJS-D033 Fiber Optic Splice Closure (FOSC) is a member in dome series of optical fiber cable splice closure. The cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws (nuts) and the circular plastic hoop. This model is suitable for different methods of branch connection, including branching and splicing of uncut cables.
Features
- The design receives creatively practical patents and keep the box under sustainable seal performance in regular operations.
- The port of discontinuous cable adopts spinning mechanical seal, and the port of uncut cable adopts direct pressure mechanical seal.
- It applies to the seal demand of Φ8~18 cable.
- Multiple seal accessories of soft cable are applicable.
- Each tray also can be installed with 6 pieces of 1:8 micro splitters.

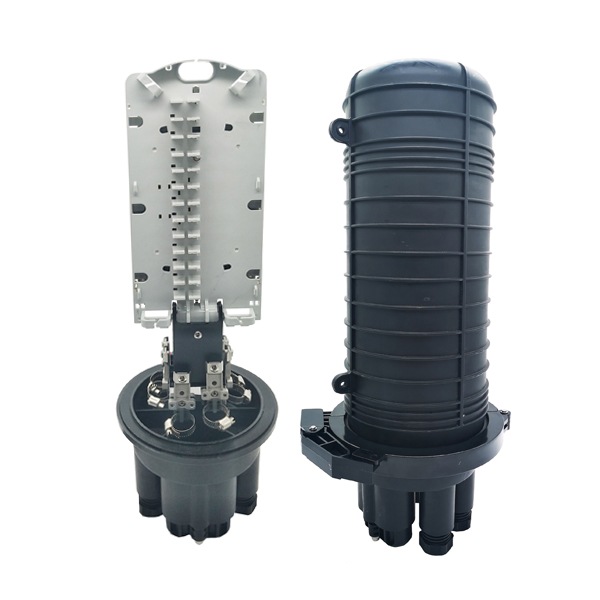

- Most can accommodate 6 fiber trays. Ribbon cable is available, which can be installed with 6C or 12C ribbon cable, corresponding max capacity is 432 core, 576 core.
- Mechanical seal: Excellent sealing performance,reusable. Protection grade is IP 68.
Specification
| Model | GJS-D033 |
| Dimension | 450×Ø 230mm |
| Weight | 4.2kg-4.8kg |
| Max capacity | 144cores single fiber |
| Splice tray capacity | 24cores |
| Number of splice tray | 6pcs |
| Sealing type | Mechanical |
| Suitable cable diameter | Pinholeφ5-7mm, express cable φ10-17mm |

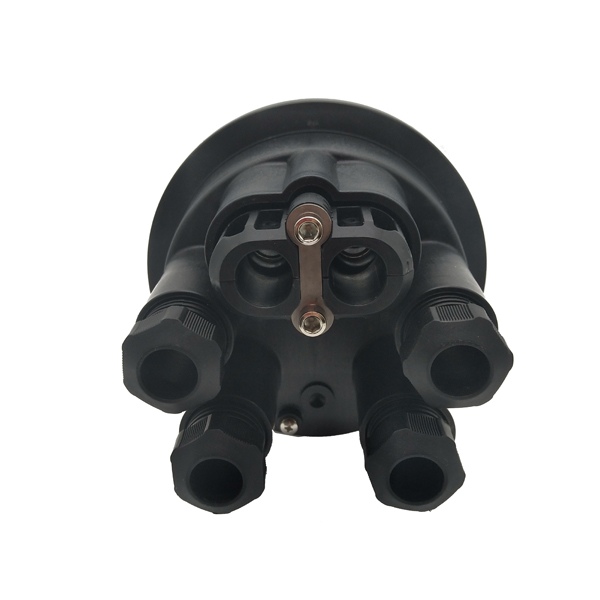

| Cable entry & exit | 1oval+4round (1express cable&4drop) |
| Material | Body:PP+GF, tray:ABS |
Standard accessory:

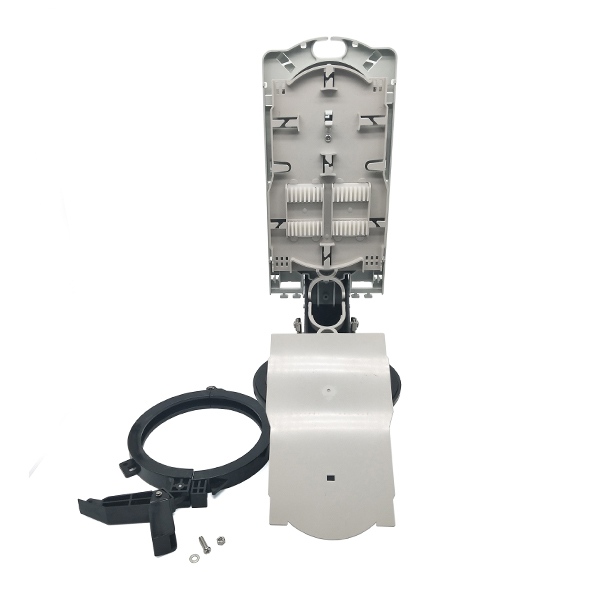

- dome, cover, clamp,tray, buffer tube, nylon tie, cable tie, cable sealing gromments, aerial mount kits, number mark, sand paper, wrench, silver paper, Hexagon wrench, split card, grounding wire, heat shrink sleeve, etc.
Application:
- It could be used for aerial, pole-mounting, wall-mounting and underground applications.
NOTES:
- This closure can hold max. 24pcs SC adapters on the back of the tray, max. Steel tube Splitter 3pcs1x8 or 1pc 1×16.
