Description
Features
- The design receives creatively practical patents and keep the box under sustainable seal performance in regular operations.
- The port of discontinuous cable adopts spinning mechanical seal, and the port of uncut cable adopts direct pressure mechanical seal.
- It applies to the seal demand of Φ8~18 cable.
- Multiple seal accessories of soft cable are applicable.
- Each tray also can be installed with 6 pieces of 1:8 micro

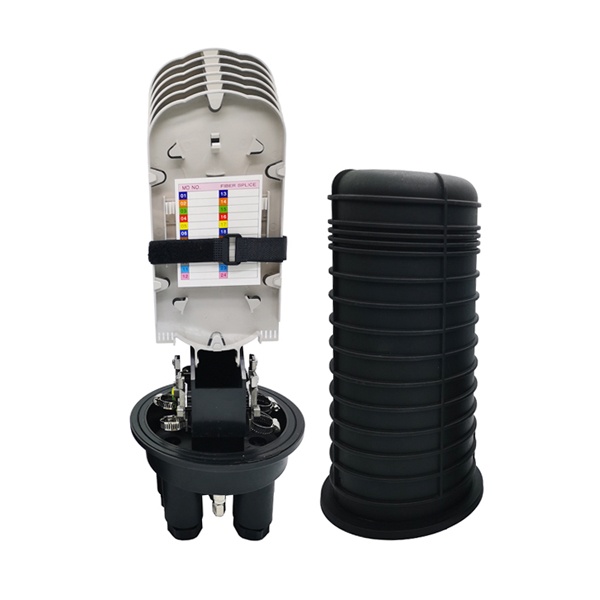

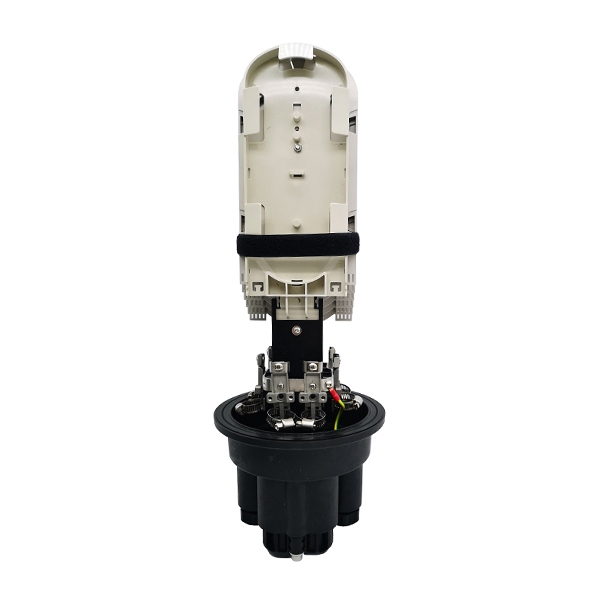

- Most can accommodate 6 fiber trays. Ribbon cable is available, which can be installed with 6C or 12C ribbon cable, corresponding max capacity is 432 core, 576 core.
- Mechanical seal: Excellent sealing performance, reusable. Protection grade is IP 68.
Specification
| Model | GJS-D033 |
| Dimension | 450* φ230mm |
| Max capacity | 144cores single fiber |
| Splice tray capacity | 24cores |
| Number of splice tray | 6pcs |
| Sealing type | Mechanical |
| Suitable cable diameter | Pinholeφ5-7mm, express cable φ10-17mm |

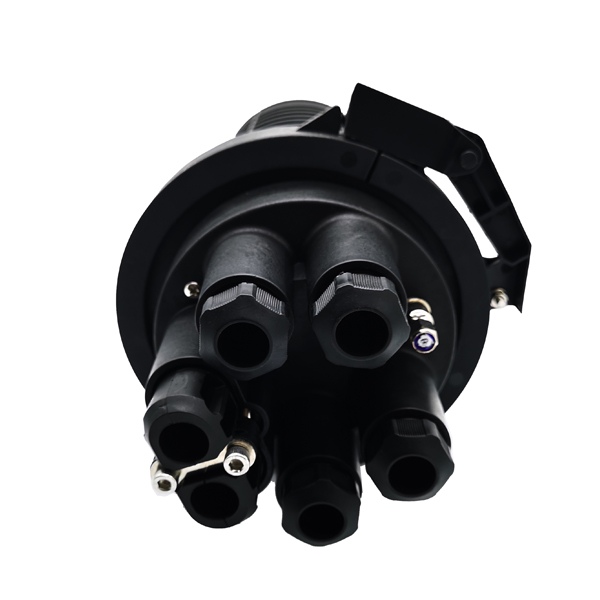

| Cable entry & exit | 1oval+4round (1express cable&4drop) |
| Material | Body: PP+GF, tray: ABS |
| Net weight | 4.2-4.8kg |
