Description
Specification
- The casing of enclosure is made of PP, which is a kind of high-strength engineering plastic.
- Reliable cable introducing, fixing, protection, grounding devices, easy for re-entry and re-open.

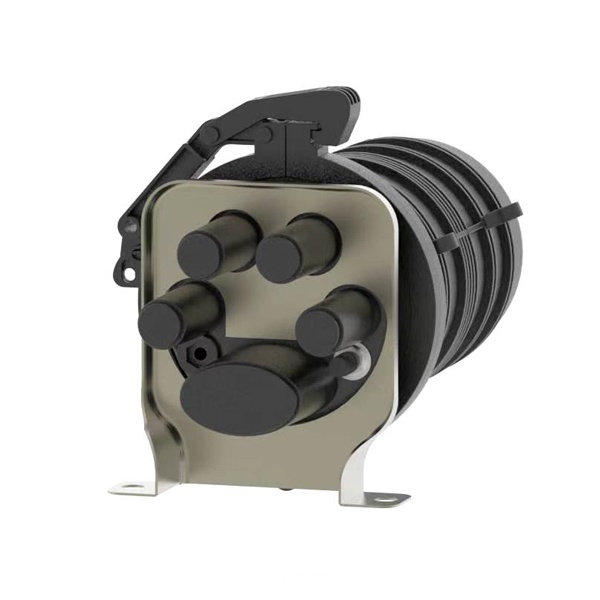

- The base has a variety of ports for different type of cable, the oval port is used for uncut cable.
- High-strength modified polypropylene material ,Protection grade: IP68.
Configuration Table
| Model | GJS-D015B |
| Environment | Aerial, direct buried, pipelined, wall, underground, manhole |
| Splice Capacity | 12 Cores |
| Splice Trays | 4 Pcs |
| Cable entry ports | 5 Ports (Max Φ18mm, 2 Ports For Uncut Access) |
| Protection Level | IP68 |
| Color | Black |
| Body Material | PP |
| Dimension | H × D = 310 × Φ140 mm |
| Operating tempertaure | -10~+70℃ |
| Incoming Cable Port | 4x(Φ10~14mm), 1x Mid-span 10~ 14mm |
| Tension force | 50N |
| Electric | Screw grounding system |
| Seal | Mechanical, brooches optional 2 screws |
