Description

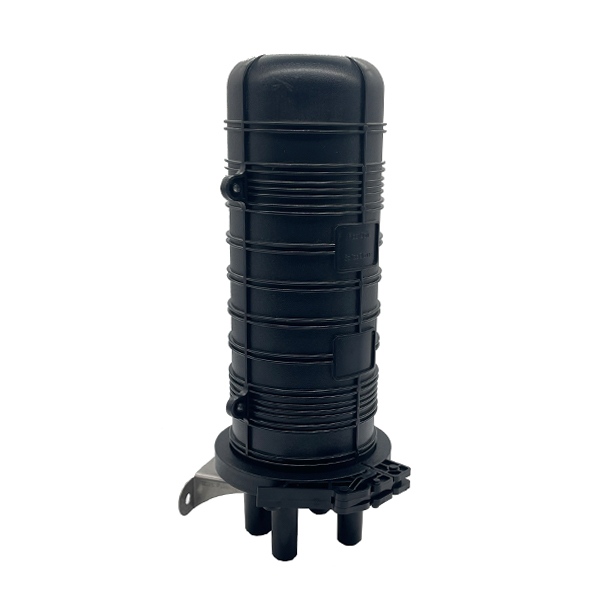

GJS-9601 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 4 trays to splice total 96 fibers. This model is suitable for different methods of branch connection, including branching and splicing of uncut cables, it can also be used for splitting function with adapters internal.
Features
- Advanced internal structure design.
- Easy to re-enter, it never requires re-entry tool kit.
- The closure is spacious enough for winding and storing fibers ,Protection grade is IP 68waterproof.

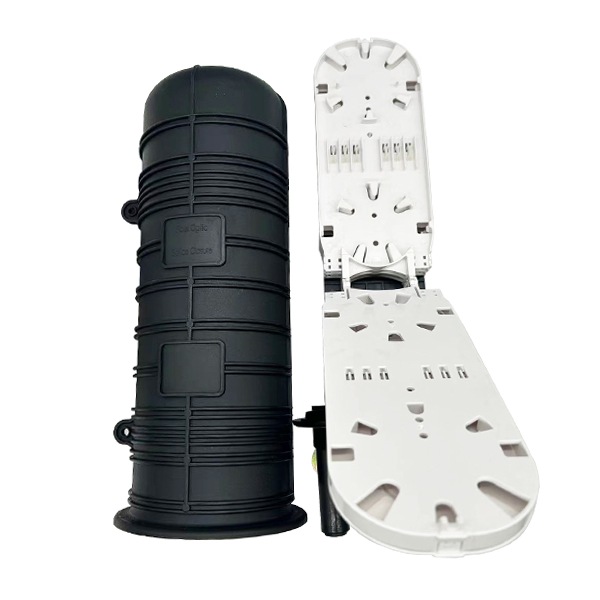

- Fiber Optic Splice Trays are design in SLIDE-IN-LOCK and its opening angle is about 90°.
- The curved diameter meets with international standard.
- Easy and fast to increase and reduce FOSTs.
- Innovative elastic intergrated seal fitting.
- Suitable for brunch fiber.
Specification
| Model | GJS-9601 |
| Dimension | 435*190mm |
| Max capacity | 96cores (single fiber) |

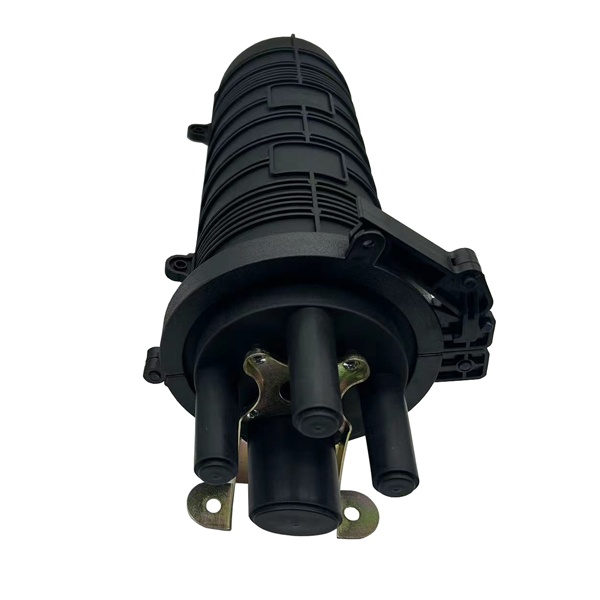

| Cable ports | 1oval+3round ports |
| Cable diameter | Oval:φ25mm; round ports:φ16mm |
| Material | Body: ABS+PC, Tray: ABS |
| Seal material | Vualcanized silicone rubber |
| Tray capacity | 24cores single fiber |
| Tray qty | 4pcs |
| IP grade | IP68 |
| Net weight | 1.6-1.8kg |
Standard accessory:
- Closure body(with hoop),Heat shrink protection sleeve,Heat shrink tubes,Special wrench,Abrasive tape,Labeling paper,Nylon tie,Insulation tape,Pole mount kits,Air valve,Grounding wire.
Installation Method:
- wall-mounted, Pole mounting, Aerial mounting ,Underground
