Description
Feature
- 5 ports,good in practicality.
- It applies to various ways of bifurcations including bifurcation of uncut cable.
- It applies to the installation of Φ8~18 cable.
- Ribbon cable is available, which can be installed with 6C or 12 C ribbon cable, corresponding max capacity is 432 core, 576 core.
Installation Method: wall-mounted, Pole mounting, manhole
Specification
| Model | GJS-9501-B |
| Dimension | 460*φ225mm |
| Max capacity | 96cores (single fiber), 288/384cores (ribbon) |

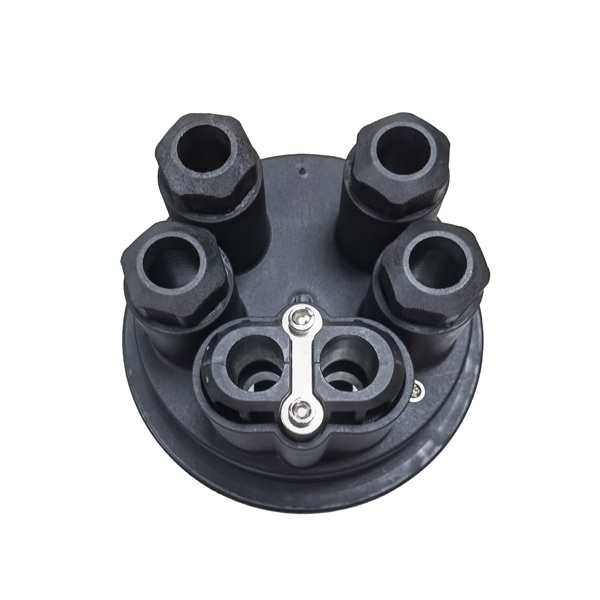

| Cable ports | 1 oval+4 round ports |
| Cable diameter | Oval: φ8-25mm; round:φ8-18mm |
| Adapter quantity | 36pcs SC simplex |
| Material | Body: PP, Tray: ABS |
| Seal material | Vualcanized silicone rubber |
| Tray capacity | 24cores single fiber |
| Tray qty | 4pcs |
| IP grade | IP68 |
| Net weight | 3.5-4.5kg |
