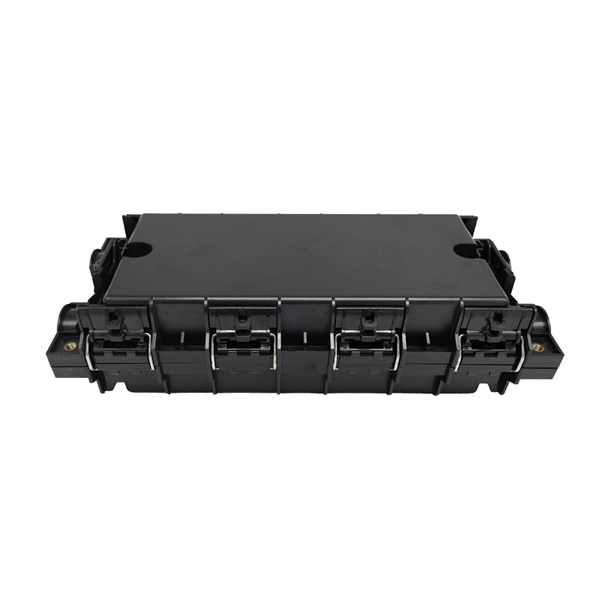

Description
GJS-2048 Fiber Closure can be applied in the straight line and branch line(one into two, one into three)connections of optical cables(single fiber and ribbon fiber) within the diameter of 16mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.
GJS-2048 Fiber Closure Features
- All property indexes are in accordance with National YD814.1-2004

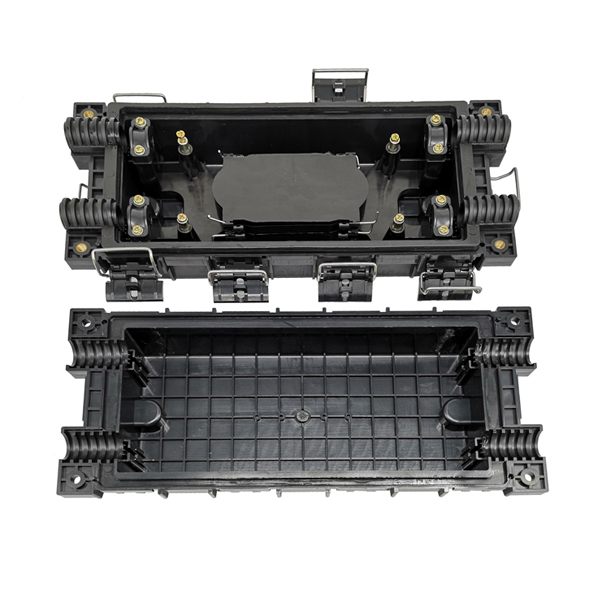

- The case body is made from imported high-intensity engineering plastics(ABS) ,added anti-aging agent and formed the shape with mould plastics under high pressure. It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
- The box body adopts the buckleconnection mode, which makes the installation and maintenance more convenient.

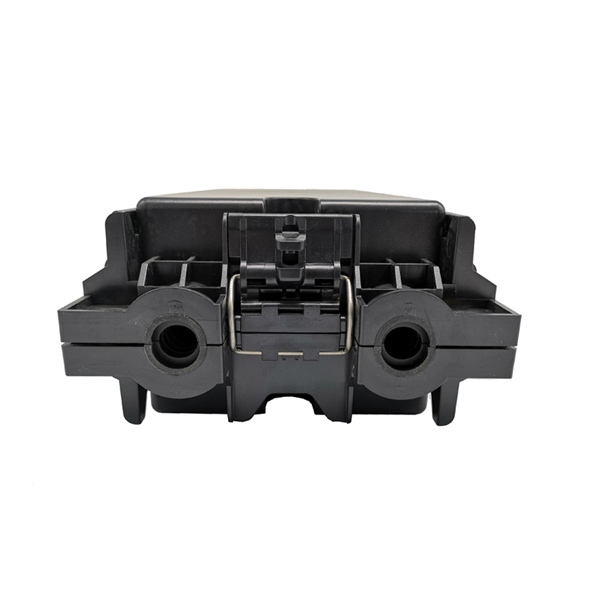

- The case body and cable entrance are sealed with silicon gum material.It has reliable sealing capability. It can be re-opened and easy to maintainwithout loss.
- Unique configuration of the plug, so users can be selectedflexibly according to the number of fiber optic cable out of actual use.

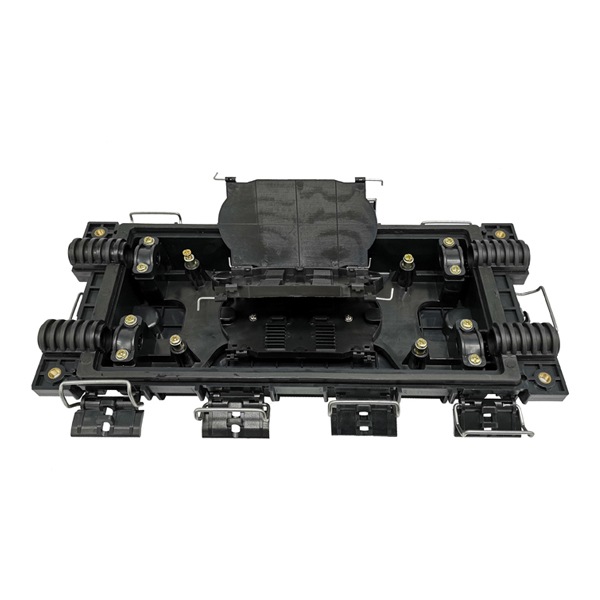

- Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
- Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.
GJS-2048 Fiber Closure Specification
Model | GJS-2048 |
Dimension | 420*190*120 mm |
Cable ports | 2 in 2 out |
Tray capacity | 12 cores (single fiber) |
Tray quantity | 8 pcs |
Max capacity | 96 cores(single fiber) |
Optical fiber winding radius | ≥40 mm |
Extra loss of fiber tray | ≤0.01 dB |
Working temperature | – 20 C ~ + 60 C |
Lateral pressure-resistance | ≥2000 N / 10 cm |
Shock-resistance | ≥20 N.m |
