Description

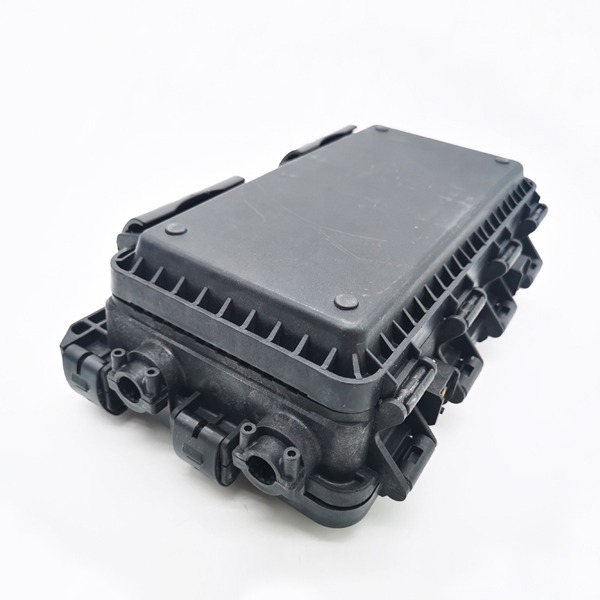

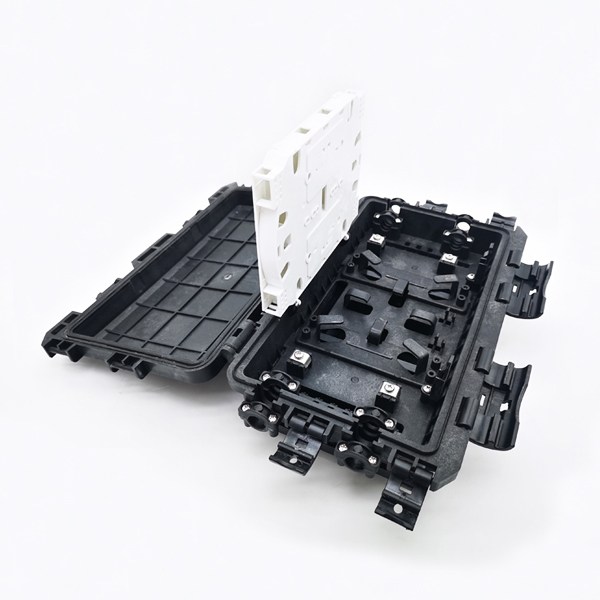

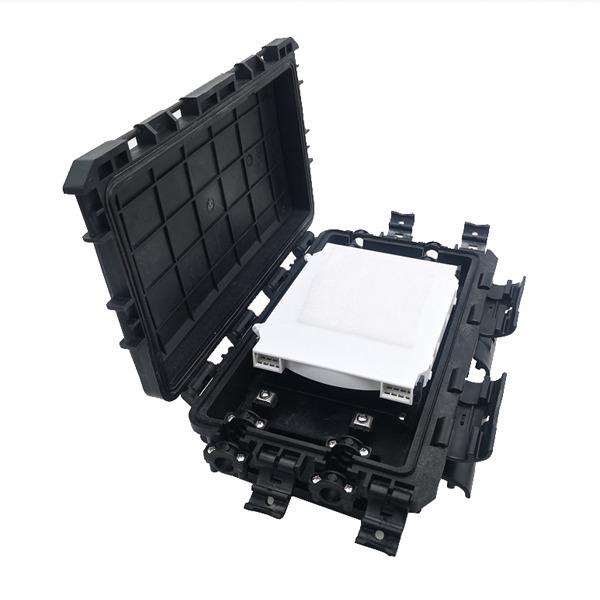

This fiber joint closure adopt high strength engineering plastic, with aging resistant, anti-UV, and anti-corrosion material. It is waterproof and anti-dust, simple inner structure, reasonable arrangement, easy installation and reopen. It is a good choice for secondary cable splice in ftth project.
Features
- Outdoor use, IP65 protection level.
- Made of high strength engineering plastic, with aging resistant, anti-UV, and anti-corrosion material.
- Light weight, high mechanical strength, lighting protection, with long life span, etc.
- Silicon rubber seal for all cable ports, stable and easy to open and maintenance.
- 16 sc adapters, and 1×16 mini splitter with SC connectors.
- All metal parts are stainless steel, repeat use in various environments.
Application
- Wall, pole, aerial mounting installation
- FTTH pre-installation and filed installation
Specification
| Model | GJS-2024 |
| Dimension | mm |
| Max capacity | 24 cores single fiber |
| Splice tray qty | 1 pc |
| Cable ports | 2in 2out uncut ports, 16pcs flat drop cable ports |
| Cable diameter | Uncut port: Ø7-13mm, flat port: 2x3mm |
| Splitter | 2pc 1:8 or 1pc 1:16 mini splitter |
| Adapter qty | 16 SC simplex |
| Material | PP+GF |
| Color | black |
| Protection level | IP65 |
| Impact resistance strength | ≥20N.m |
| Lateral pressure resistance | ≥2000N/10cm |
| Working temperature | -40 ~+70 ℃ |
| Fiber bending radius | ≥37.5mm |
| Return loss | ≤0.01dB |
| Fiber length in the tray | ≥1.6m |
