Description
Features

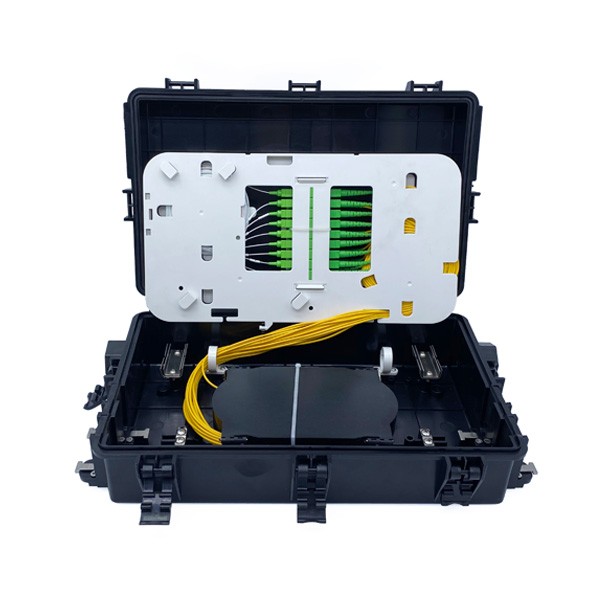

- The closure adopts horizontal mechanical sealing and advanced internal structure design.
- It can be installed two 1:8 or one 1:16 PLC splitter.
- 16 pcs 2*3mm drop cable both ends in and out.
- The closure is spacious enough for winding and storing fibers.
- The patented sealing structure keep good sealing performance after re-entry and re-using.
- Easy open and close of closure without special tool, bracket lock.
- 24cores Fusing Splice tray, if use for fusion, max. load 6pcs tray to 144fibers, if use for splitter, max. hold 3pcs tray to 72cores.
- The whole box is made of high impact engineering PC material, IP65 protection grade.
Application
- Suitable for bunchy fibers
- Aerial, wall-mounting
- It’s especially applicable to FTTH optical fiber distribution
Specification
| Model | GJS-2020 |
| Dimension | 340*220*110mm |
| Max capacity | 144cores single fiber; or 72cores with splitter |
| Max. Splitter | 2pc 1:8 or 1pc 1::16 splitter lgx module |
| Max adapter qty | 16pcs SC simplex |
| Cable ports | 6round (3in 3out), 16pcs for drop cable |
| Cable diameter | 4round: 8-16mm; 16pcs: 2*3mm drop cable |
| Material | PP/ABS |
