Description

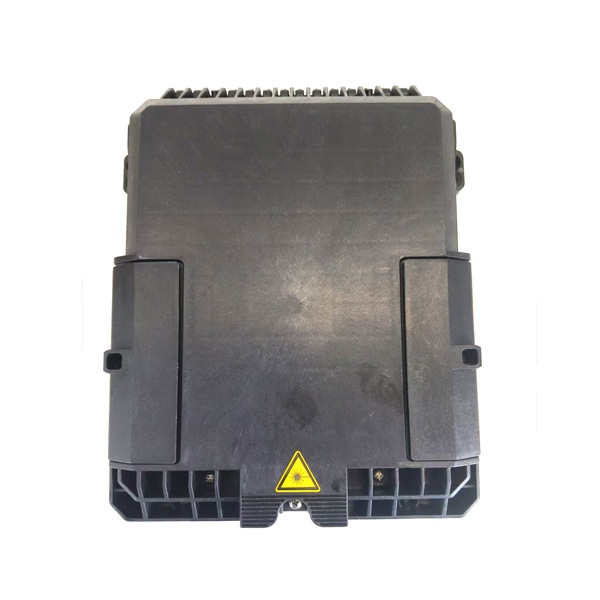

FT T-A08 is used as a termination point for the feeder cable to connect with drop cable in FTTX Communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.
Main Features
- Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability.

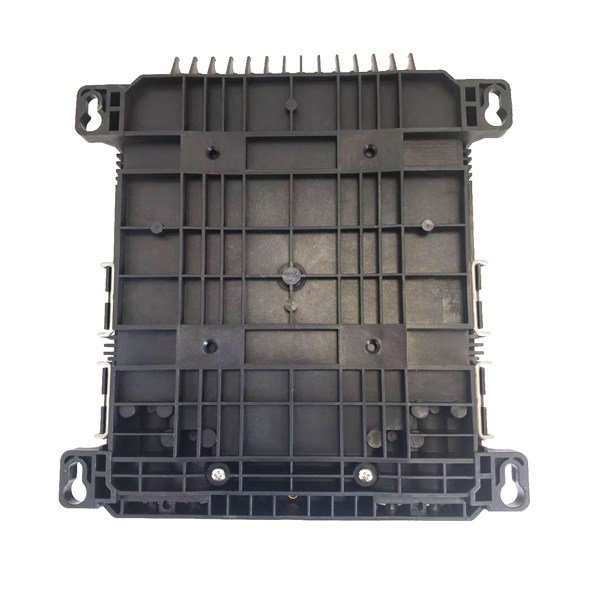

- Suitable for indoor or outdoor, wall-mounted, pole installation.

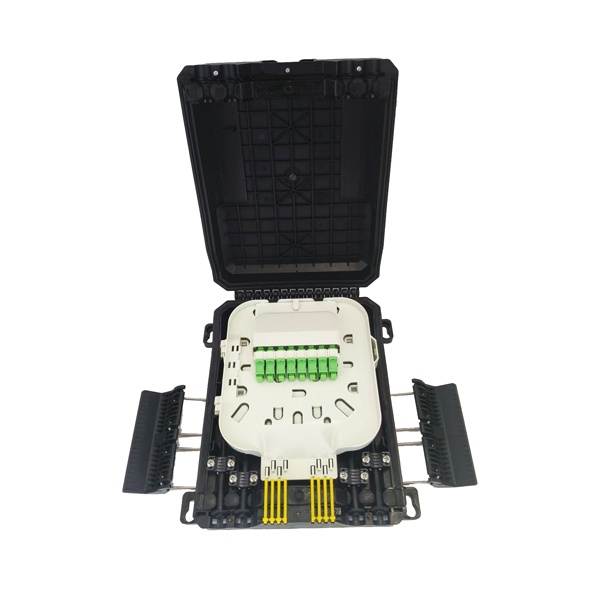

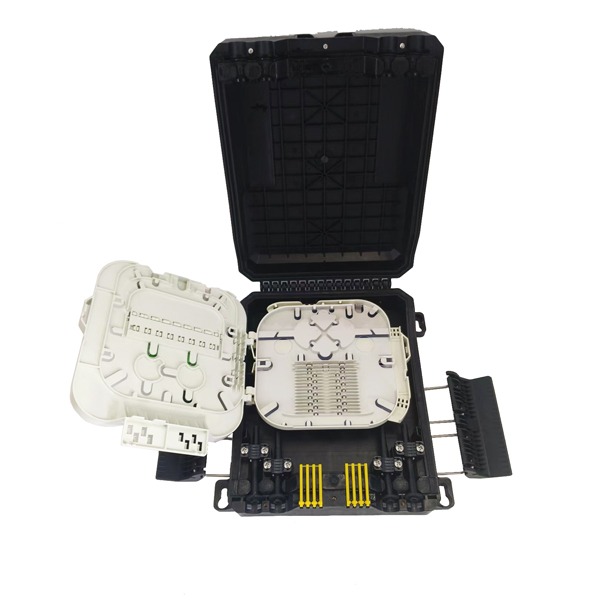

- Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
- Fiber routing is reasonable.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. all in one.
Specification
| Model | Size(Pic 1) A*B*C | Max
Capacity |
Hang a wall to install size D*E | Capacity ofFOSC (Bunchy) | Into the largest
cable diameter |
||||||
| GJS-2008 | 268*237*75.5mm | 8(sc/apc) | 220*197.5mm | 24cores | 14mm*4 | ||||||
