Description
Splitter Enclosure Features
- The splitter enclosure body is made of high quality engineering plastic with good strength
- 2 x stainless steel buckles one side, cover and bottom with hinge design, easy to open and close the box
- The whole enclosure box is enclosed with sealing ring, good sealing performance

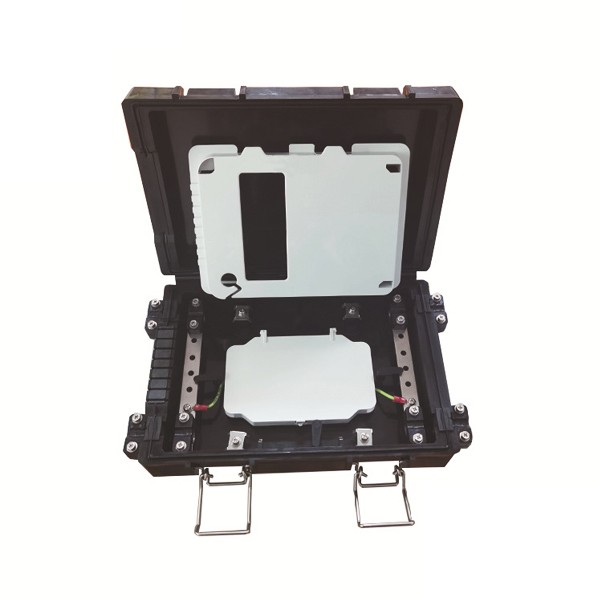

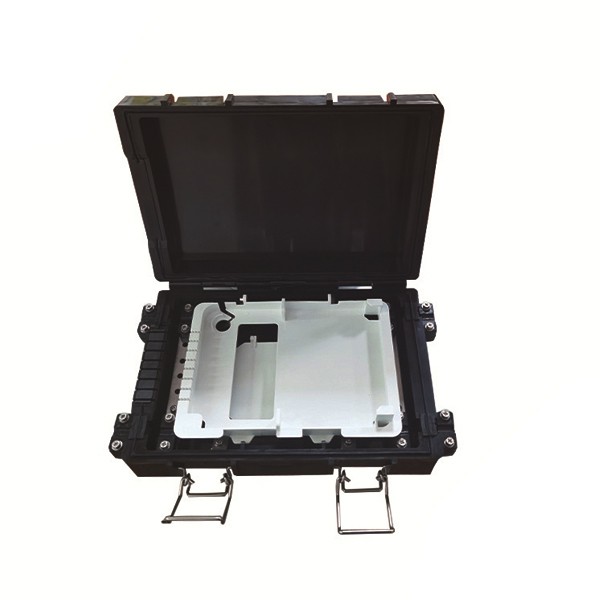

- With rotate plate with different area for splitting, splicing, storage, easy to install and maintenance
- The drop leaf can be installed 1 pc of 1*8 cassette splitter
- flat drop cable with separate slots to hold them tightly
Splitter Enclosure Specification
| Model | GJS-1803 |
| Dimension | 304*192*73mm |
| Max capacity | 8 cores |
| Material | PC, PC+ABS |
| Cable inlet | 2in 2out |
| Cable diameter | Ф8-Ф10mm |
| Drop cable port | 8pcs 2x3mm flat type |
| Sealing method | Mechanical sealing |
| Color | Black, gray, white |
| Protection level | IP65 |

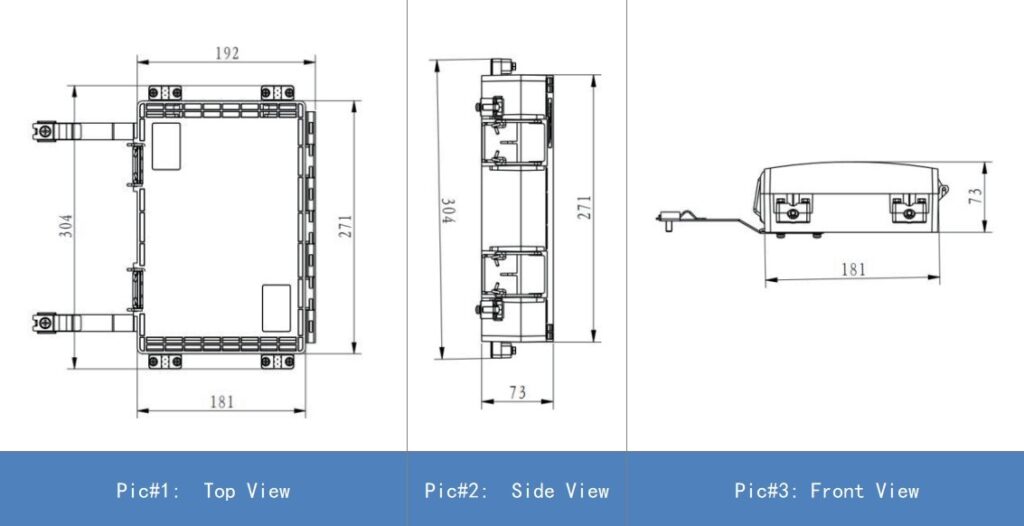

Splitter Closure Dimension
Splitter Enclosure Details

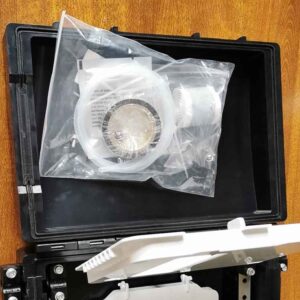

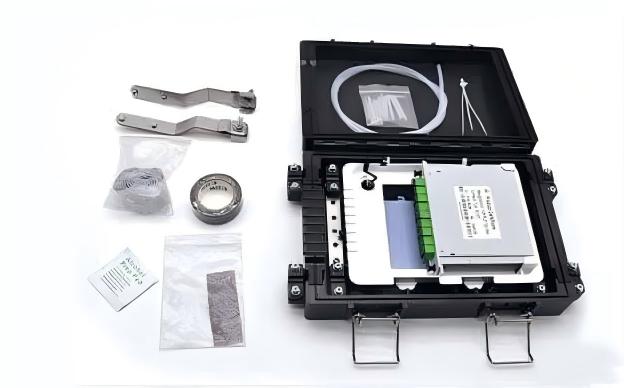

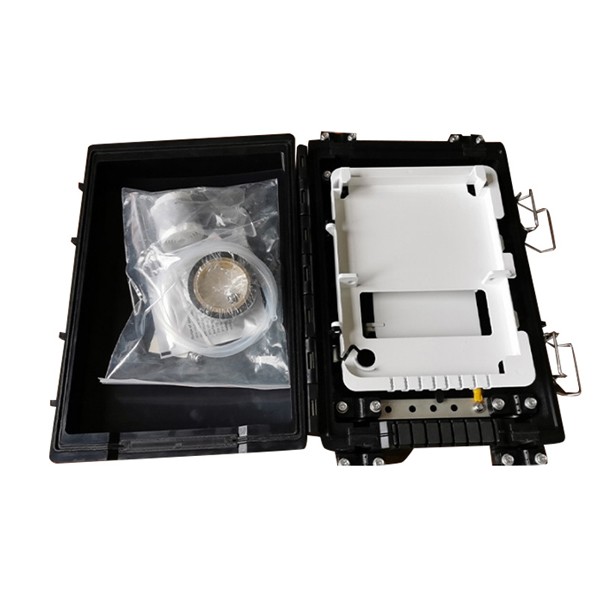

Yingda offer full mounting accessories for GJS-1803 splitter closure before delivery, there will be plastic bags to hold them all and put in the carton box or inside of the box. The standard accessory include nylon tie, buffer tube, heat shrinkable protection tubes, aerial mounting hooks, isolation tape, electronic tape, sand paper, desiccant, etc.
Yingda can assembly cassette splitter for you, if you need.
The Splitter Closure is mini size, inline closure, mechanical sealing, it is light weight, but high protection for fiber optic cabling deployment.
It mix splitting, storage, distribution in a box, and cable can go through the box from the top to bottom without cutting off.

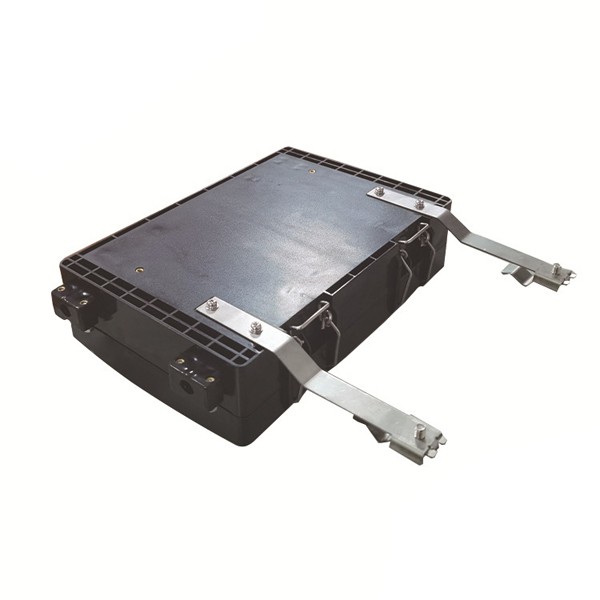

The splitter closure is standard overhead handing on the electrical wires with 2 stainless steel hooks, see bleow:
you can mounting on wall too.
The splitter enclosure is made of PP+GF material, high impact engineering plastic material, black color, anti-UV, anti-aging.

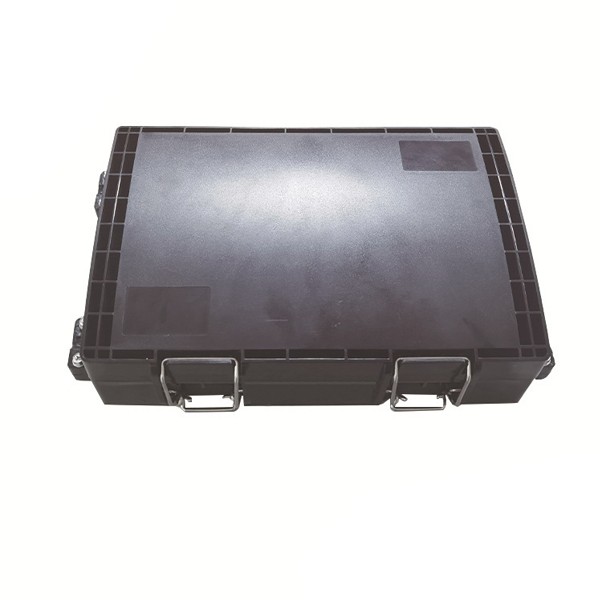

The whole closure is closed flip design with 2 buckles to open and closure, no need keys, easy to operate. And it is totallly enclosed with sealing rings around the cover, to help prevent water or dust entering. The box cover and bottom is hinge connected, not separate.
