Description
Features
- The closure made of quality engineering plastic, good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
- The closures are applicable to ribbon type optical cable and common optical cable.

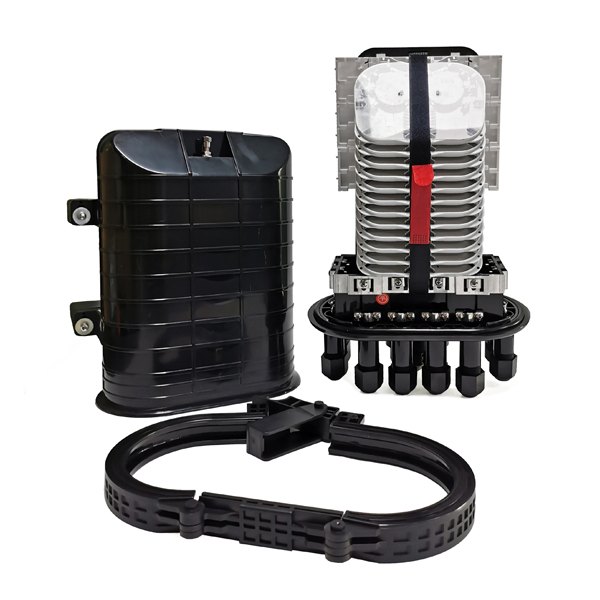

- The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
- The closure is of small volume, big capacity and convenient maintenance. The elastic rubber seal rings inside the closure are of good sealing and sweat-proof
- The casing can be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance.
Specification
| Item no. | GJS-112H/M |
| Dimension (mm) | 380*280*127 |
| Material | PC+ABS |
| Weight (kg) | 3.1KG |
| Diameter of cable (mm) | IN:8-20MM; OUT:6-12MM |

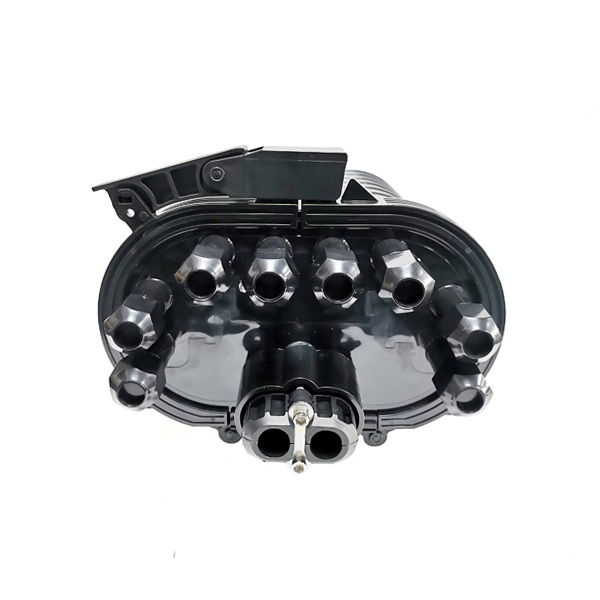

| No. Of cable inlet/outlet | 2in 8out |
| Number of fibers per tray | 12 (single core) |
| Max. Number of trays | 12pcs |
| Max. Number of fibers | 144 (single core) |
| Sealing of inlet /outlet | Heat shrink / mechanical seal |
| Sealing of shells | Silicon rubber |
| Working temperature | -40℃~+80℃ |
| Humidity | ≤95% (at 40℃) |
| Air Pressure | 70kPa ~106kPa |
| Protection grade | IP68 |
