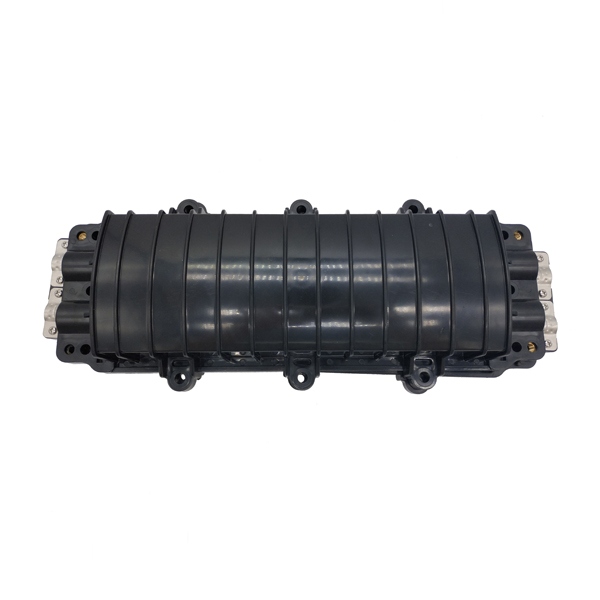

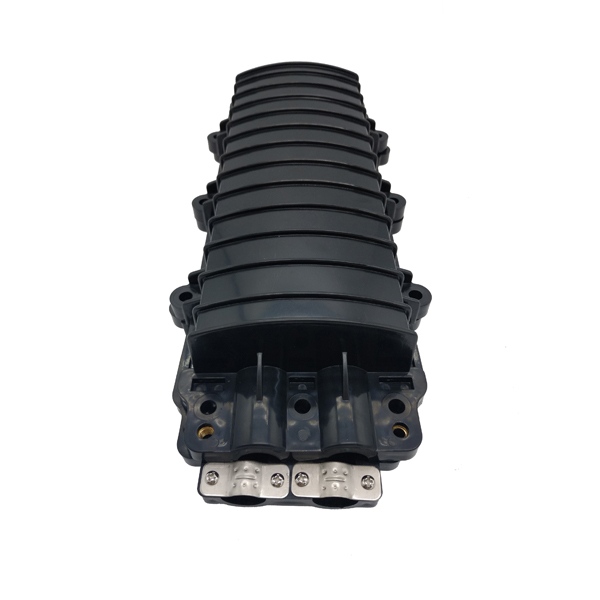

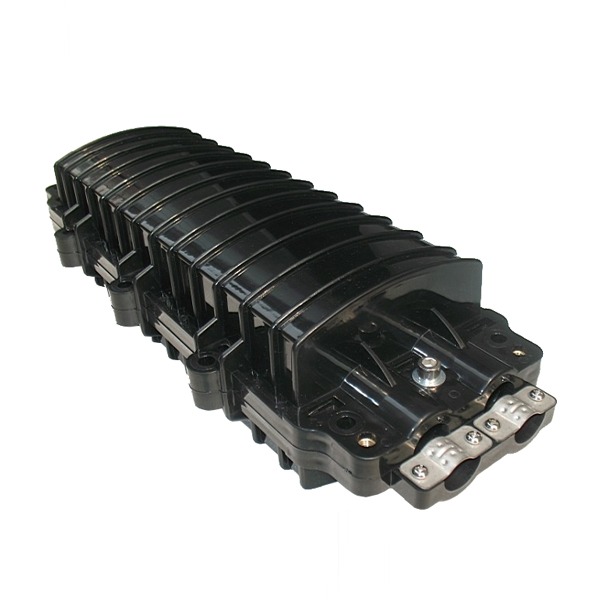

This product is suitable for various models optical cables with different structures within φ22mm direct and branch connection of overhead/aerial, pipeline, direct burial and well laying, and it is also suitable for the connection of all plastic local telephone cables.
Features
Specification
| MODEL | GJS(04)3Y |
| Dimension(L*W* H) | 465* 180* 120mm |
| Max capacity | 144cores bunchy fibers |
| Capacity of each tray | 24cores |
| Max qty of trays | 6pcs |
| Cable ports | 2in 2 out |
| Cable diameter | φ22mm |
| Net weight | 2.5kg |
| Material | ABS |
| Curvature radius of optical fiber | ≥ 40mm |
| Additional loss of optical fiber | ≤ 0.01dB |
| Length of reserved optical fiber | ≥ 1.6m |
| Temperature range | – 40 ℃ ~ + 70 ℃ |
| Lateral pressure resistance | ≥ 2000N / 10cm |
| Impact resistance | ≥ 20n m |
