Description
Features
- The protection grade reaches IP 68
- Aerial and wall-mounting.
- Ambient temperature ranges from -40 to 65℃.
- The closure is of small volume, big capacity and convenient maintenance.
- The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti- aging, as well as smooth appearance and reliable mechanical
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

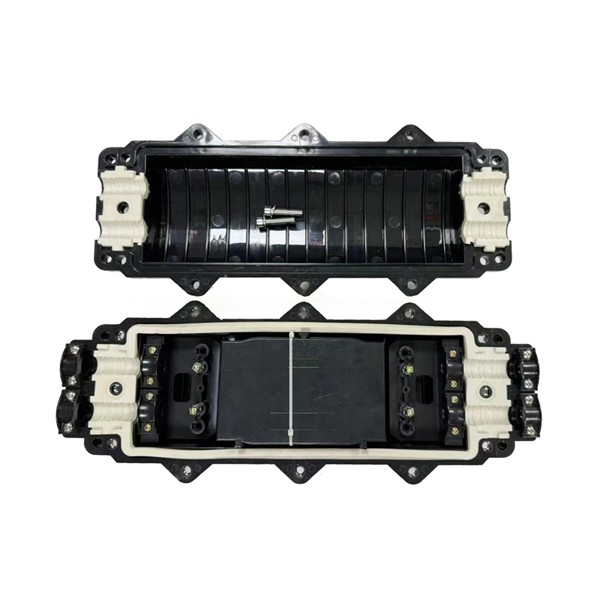

- The splice trays (FOST)inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individual.
Dimensions and Capacity
| Outside Dimensions (L*W*H) | 457mm*179mm*110mm |
| Weight (excluding outside box) | 1900g -2200g |
| Number of Inlet / Outlet Ports | 2 pieces on each side (total 4 pieces) |
| Diameter of Fiber Cable | 4-Φ20mm |
| Capacity of FOSC | Bunchy: 12 cores -96 cores |
