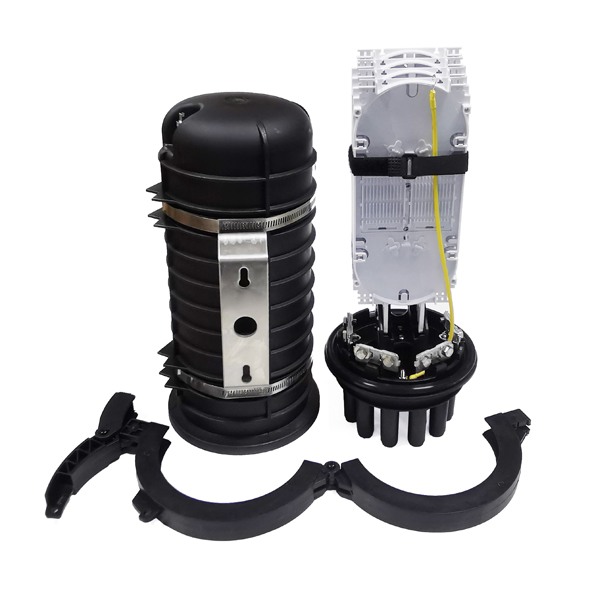

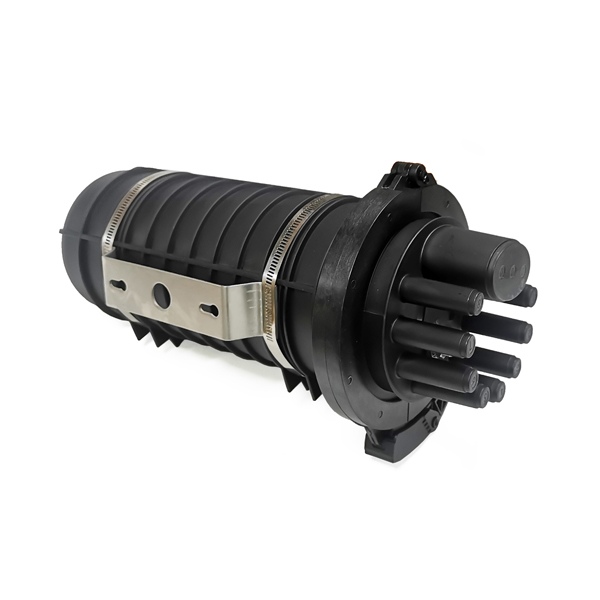

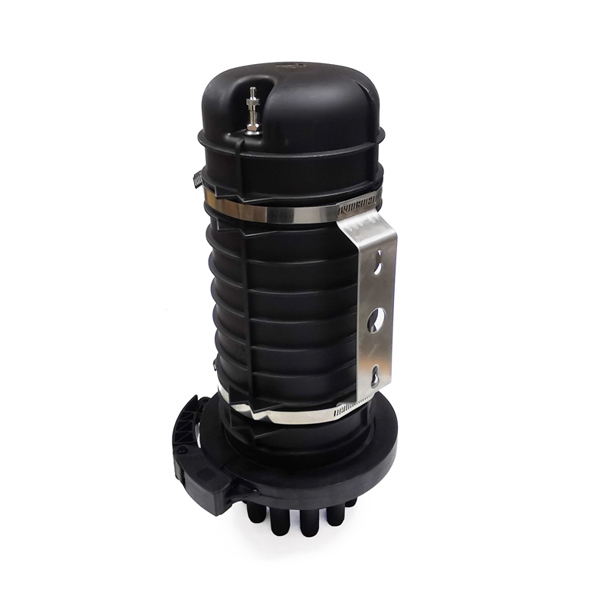

96 Cores Fiber Optic Splice Closure 1Oval+4 Round Ports, Heat Shrink Sealing, With Air Valve, Grounding Wire,6 Splice Cassette, IP68 Wall Mount

Description

Features

1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

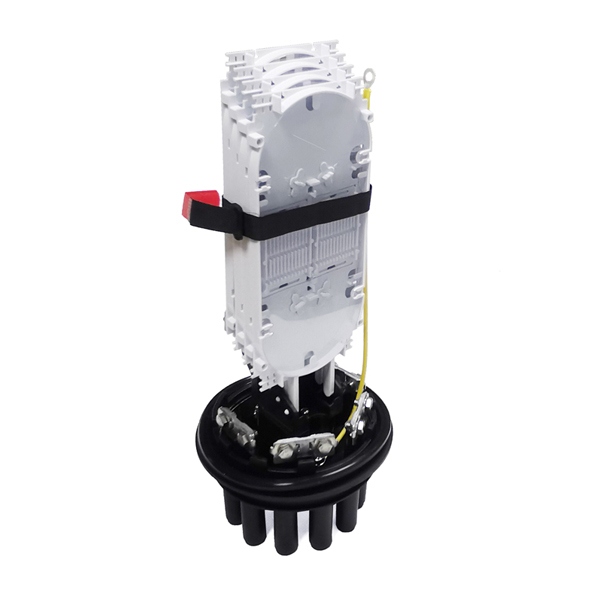

4. The splice trays are hinged for access to any splice tray, without disturbing other trays.
5. The inner parts and fixing parts are made of stainless steel
6. With a earthing device protect it from damage by lightning
7. Compatible with most cable types(single fiber or ribbon), and cable constructions (loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications (tap-off, expressed, branch, and repair)

Application

It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.

Technical Parameter

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~ 150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimeter (1min)
5. Insulation resistance: >2*104MΩ
6. VoltageStrength:15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius: 30mm. Low optical loss.
