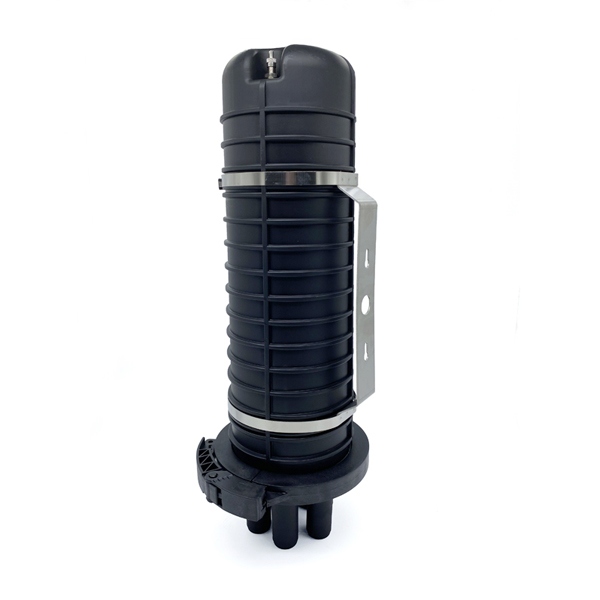

Description
Features
- Excessive fibers can be stored in storage baskets. Easy in fiber management.
- Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
- Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

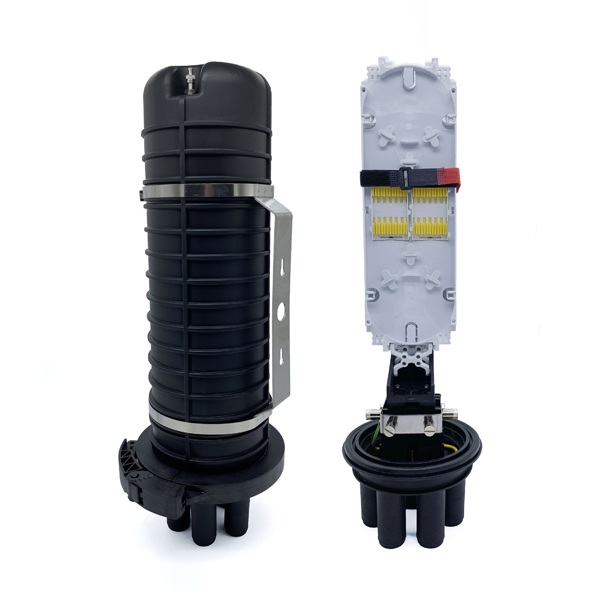

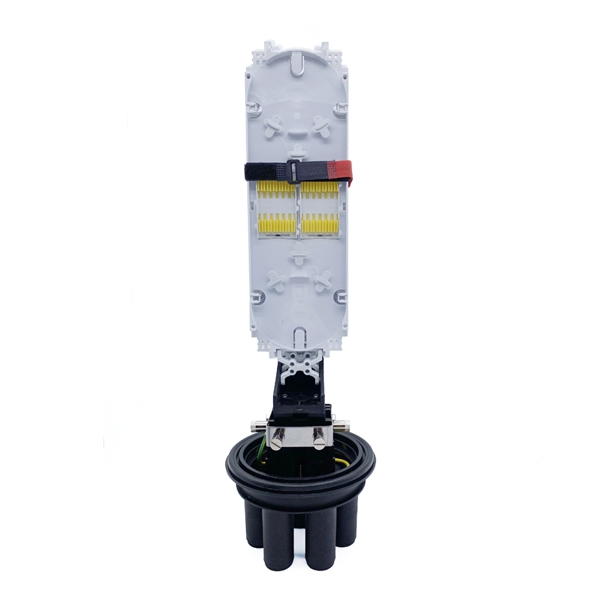

- The splice trays are hinged for access to any splice tray, without disturbing other trays.
- The inner parts and fixing parts are made of stainless steel
- With a earthing device protect it from damage by lightning
- Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular).
- And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair).
Application
It can be installed in aerial locations, duct applications, direct buried, manholes. Small volume but large capacity.
Specification
| Model | FOSC400B4 |
| Max capacity | 144 cores |
| Dimension | 522* 185mm |
| Tray quantity | 6pcs |
| Tray capacity | 24cores single fiber |

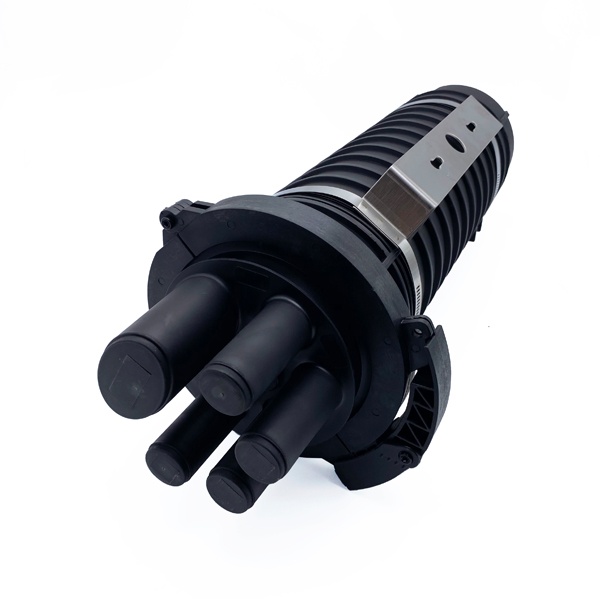

| Cable ports | 1oval+4round ports |
| Cable diameter | 4round ports available for cable dia. < 11.5mm;
1 oval port available for two pcs dia.≤ 20mm |
| Material | Dome & base :Modified P.P +GF Tray: ABS |
| Sealing method | Heat shrink seal |
| Waterproof grade | IP68 |
Technical Parameter
| Working Temperature | -40 C +70 C |
| Atmospheric Pressure | 70~150Kpa |
| Axial Tension | >2000N/1min |
| Stretching Resistance | 2500N/10cm2 (1min) |
| Insulation resistance | >2* 104MΩ |
| Voltage Strength | 15KV/1min, no arcover or breakdown |
| Pressure in the water | 50m/72hours |
| Splice tray with optical taking-in radius | 30mm. Low optical loss. |
