Description
Duplex LC Cable Features
- Open structure, allowing direct connection to transceivers (SFP)
- Fully floating design in the Z-axis direction, compatible with various mainstream transceivers on the market
- Separate fiber optic cable and protective cover connection design, ensuring a perfect connection between the LC connector and SFP
- The connection mechanism provides clear mechanical feedback to help operators confirm the connection is in place, allowing for one-handed installation and operation
- Direct replacement of the RHER optical transceiver without opening the RHER enclosure
- Convenient, quick, and safe mounting bayonet design
- Waterproof, dustproof, and corrosion-resistant
Fullaxs Duplex LC Cable Specification
- Design tensile strength ≥150N
- Design protection rating: IP67

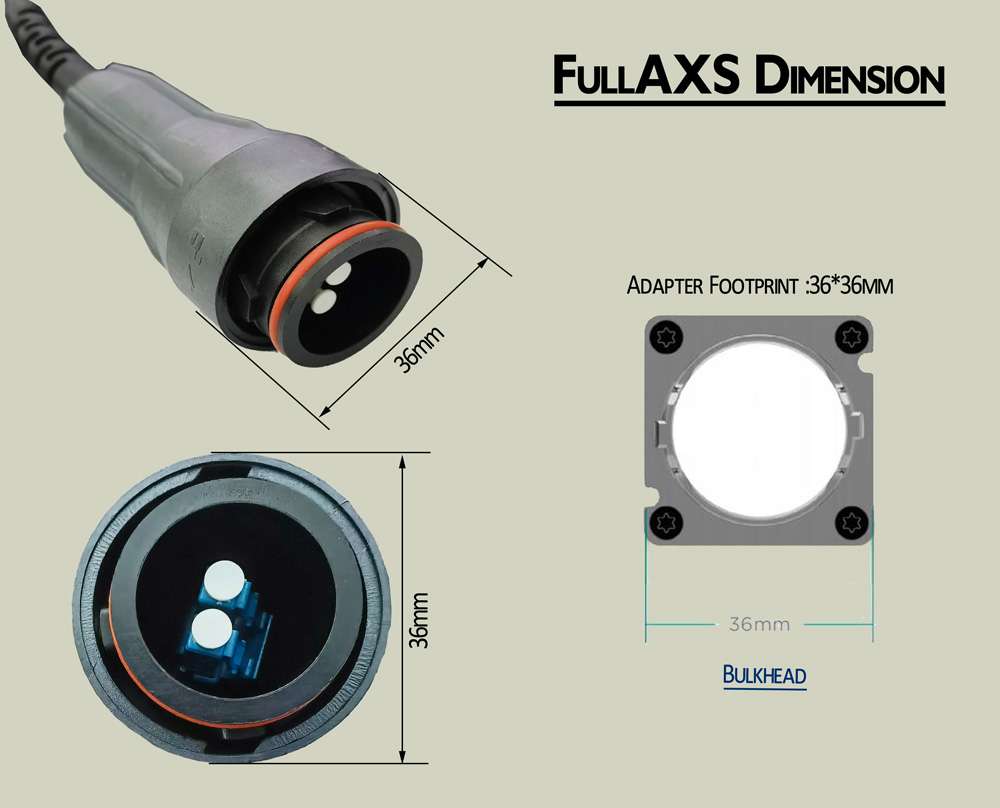

- Adapter size: 36mm×36mm
- Installation structure: Bolt-lock type, tool-free
- Operating temperature: -40℃～+70℃
- Number of installation cycles ≥100
- Single-mode and multi-mode fiber
- Relevant technical standards: IEC 61300-2-1, IEC 61300-2-26, IEC 61300-2-12, IEC 61300-2-22
Fullaxs (DLC) to Duplex LC Cable Details

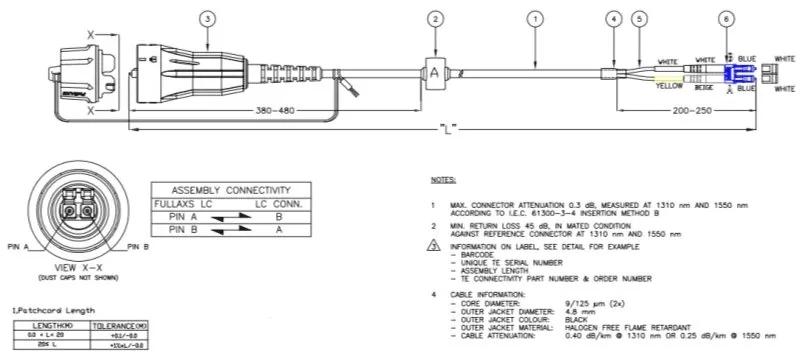

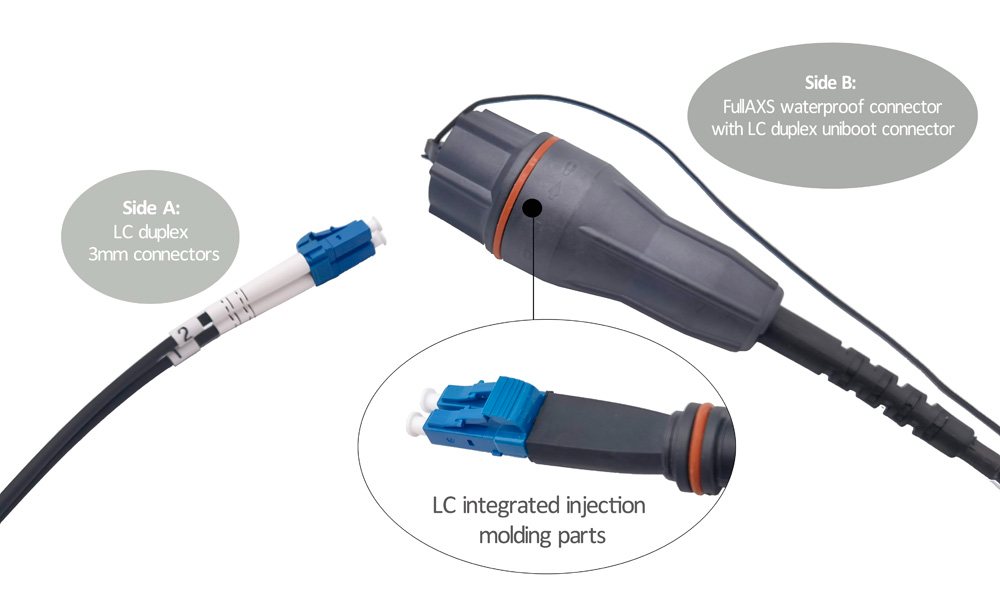

The patch cord cable structure will be as below, one side is Fullaxs waterproof plug, internal configure with dual LC connectors, and the other side is LC duplex connectors with 2mm diameter fiber optic pigtails, fanout length can be customize.
The LC duplex connector at both sides can be separately with 1 2 mark, or wit uniboot for option. There is IP67 waterproof sealing rinds in the Fullaxs housing or its dust cap.

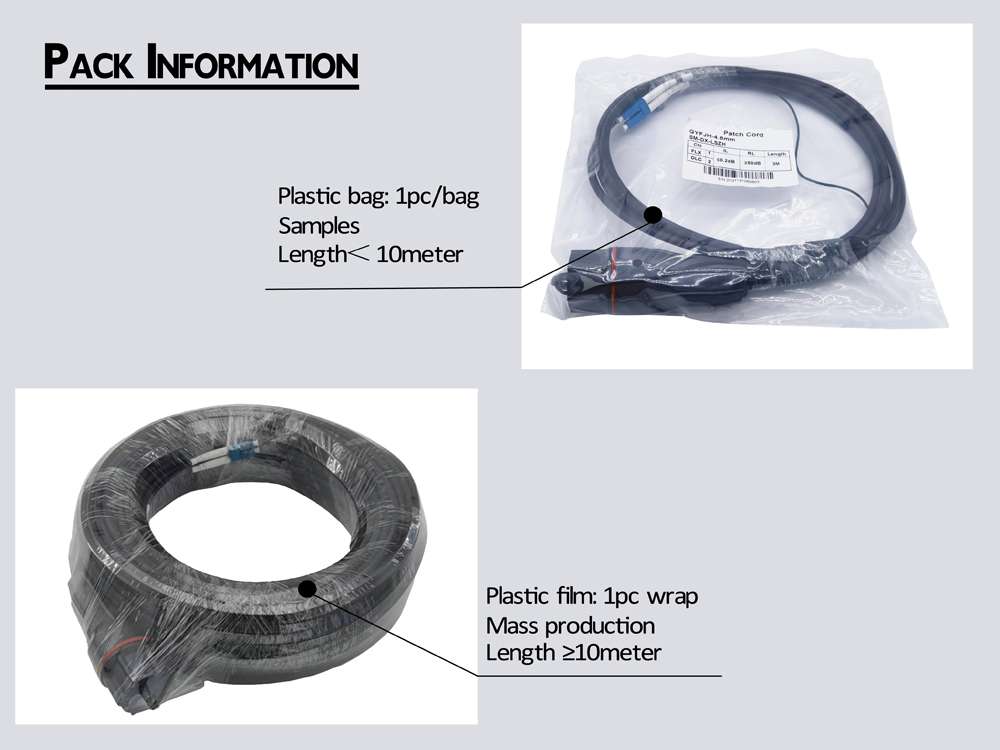

Yingda will pack each piece of duplex LC cable in a plastic bag for short length, if longer, will wrap with plastic film to hold the connectors and cables in place. Then in master carton boxes for shipment. The test report data lable will be pasted on product itself including insertion loss, return loss, product specification and serial number. Only qualified fiber patch cords can be packed for delivery.
The fullaxs connector interface internal LC dupelx connectors, which is suitable for any standard LC duplex adapters with square frame outer diameter 36*36mm.
