Description
Fullaxs Patch Cord LC UPC Features
- Open bulkhead for easy access to SFP
- Positive mechanical feedback to operator when fully mated
- One-hand mating
- Duplex LC interface
- Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
- Robust bayonet locking for easy, fast, and secure mating
- Multimode and single mode both available
- Water proof, dust proof and corrosion resistant
- Expansion to RJ45 and Power possible
- Plug has tolerance free design, fully free floating on Z-axis
- No cable buckling during or after installation
- Cost effective metal die cast bulkhead
- Field installable version available
Fullaxs Patch Cord LC UPC Application
- WIMAX and LTE Base Stations
- Remote Radio Heads (RRH)
- Industrial outdoor applications
- Robotics
- Aerospace & Defense
Fullaxs Patch Cord Specification
| Fiber Type | SM(G657A1/ G657A2) ; MM(OM1/OM2/OM3/OM4) | ||
| Fiber Count | DX | Cable Diameter | 5.0mm |
| Jacket Color | Black | Outer Jacket Material | LSZH/TPU |
| Connector | A: Fullaxs(LC) Connector; B: Fullaxs(LC), LC, SC | ||
| Insertion Loss | SM/UPC≤0.3db; MM/UPC≤0.3db | ||
| Return Loss | SM/APC≥60dB; SM/UPC≥55db; MM/UPC≥35db | ||
| Cable Length | 1~150m or Customized | Branch Length | Customized |
| Cable Type | Armored or Un-armored | Mechanical Life | 500 mating cycles |
| Working Temperature | -20°C~+70°C | Storage Temperature | -20°C~+70°C |
| Tensile Data | Tensile between the junction and fiber cable≥100N | ||
Fullaxs Patch Cord Details

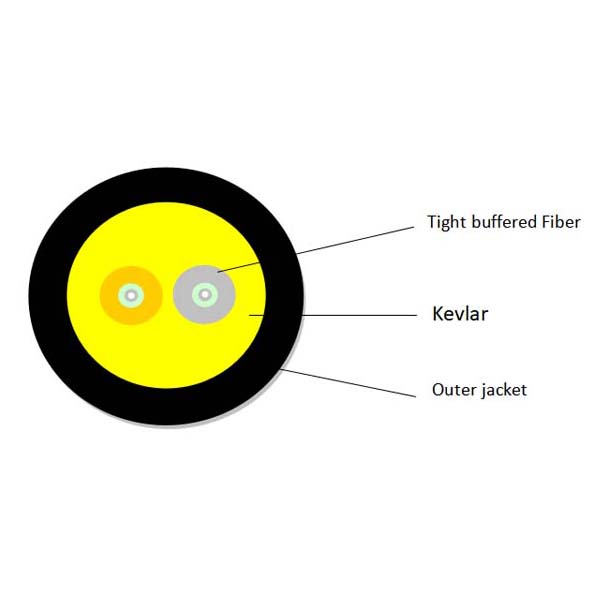

This fullaxs patch cord use 2 cores outdoor cable as below, 0.9mm tight buffer fiber optic cables with aramid yarn. Outer jacket can be LSZH, TPU or PE for option.

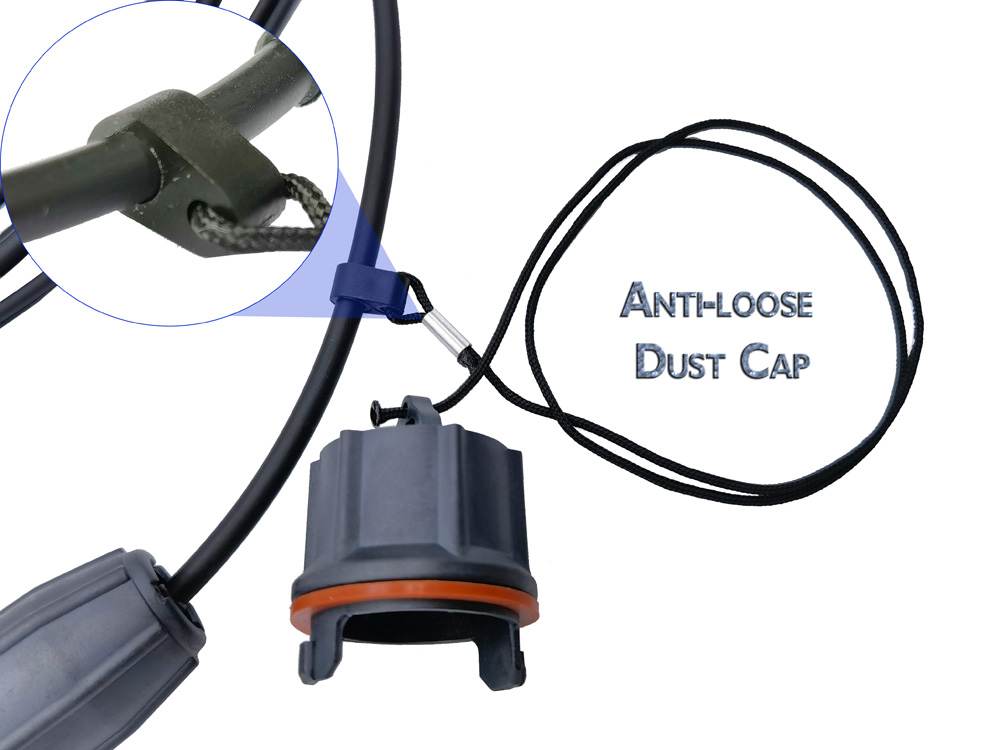

Unlike ordinary fiber optic connectors, Fullaxs waterproof connectors have a more sophisticated design and sealing protection. Even the dust cap has a special pull and hook to prevent it from falling off when the connector is opened.

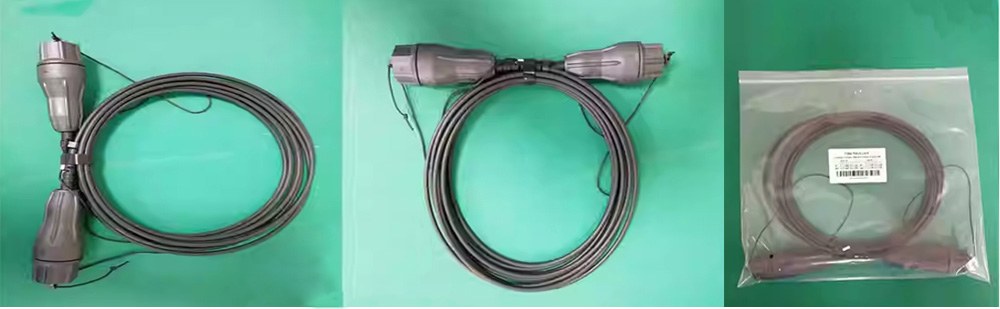

Every jumper cable undergoes rigorous testing before being shipped. Test reports are printed out and affixed to the packaging for customer inspection and traceability.
