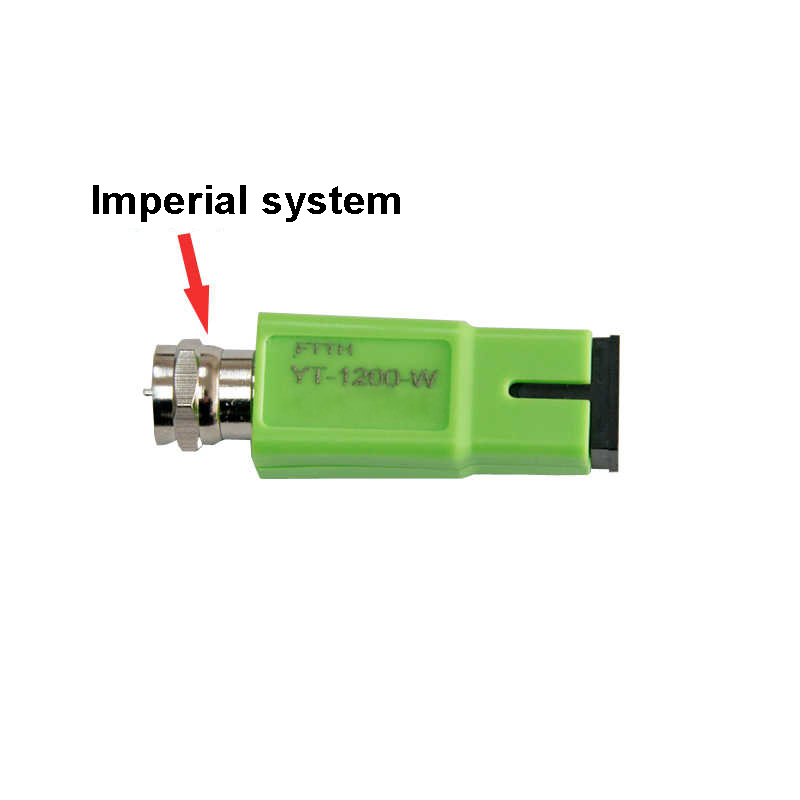

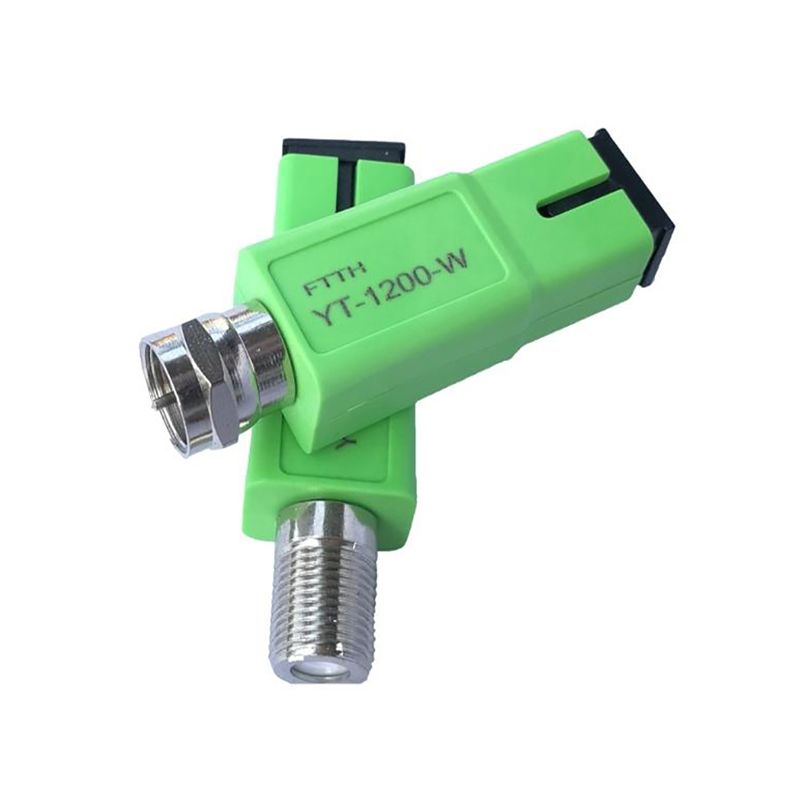

Indoor FTTH Passive Optical Receiver is widely used for Cable TV like integrated with three networks: VOIP, and Broadcasting. Unless otherwise specified, it is the imperial system delivered, not the metric system.
| Optical parameters | Unit | Value |
| Input optical power | dBm | -15 ~0 |
| Accepting light wavelength | nm | 1310~1550 |
| Input optical interface | SC/APC | |
| Link performance | ||
| C/N | dB | ≥51 |
| C/CTB | dB | ≥65 |
| C/CSO | dB | ≥62 |
| RF parameters | ||
| Frequency range | MHz | 47~1000 |
| In-band flatness | dB | 1.5 |
| Output level | dBuV | 40 (-15dBm test)
50 (-10dBm test) 60 (-5dBm test) 64 (-3dBm test) 70 (0dBm test) |
| RF output impedance | Ω | 75 |
| MER | dB | 30 (-15dBm test)
35 (-10dBm test) 37 (-5dBm test) 37 (-3dBm test) 36 (0dBm test) |

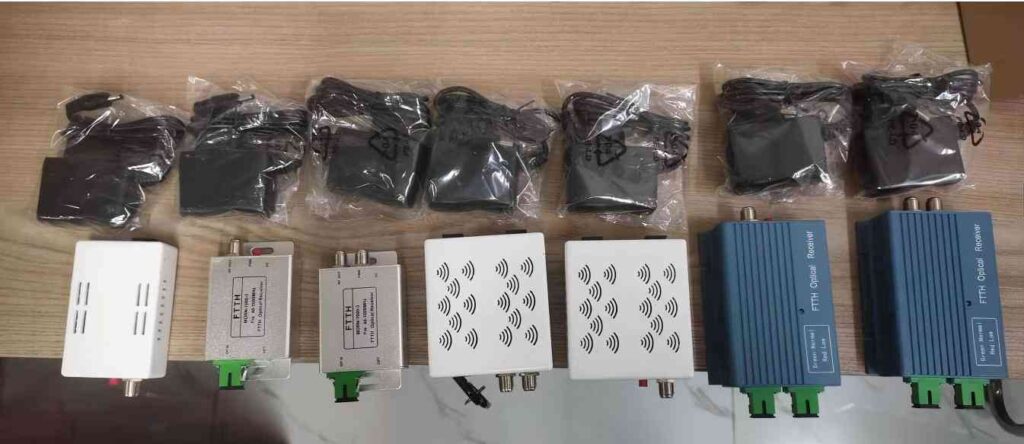

Yingda can offer all types of FTTH optical receivers like below:
EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.
TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.
Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.
Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.
If urgent, please CHAT ON WhatsApp:+8618688982406
Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.
Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.
High-precision testing equipment and top industry quality control system ensure high quality standards.
Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
The more details, the better offer, will reply you in 24 hours.
