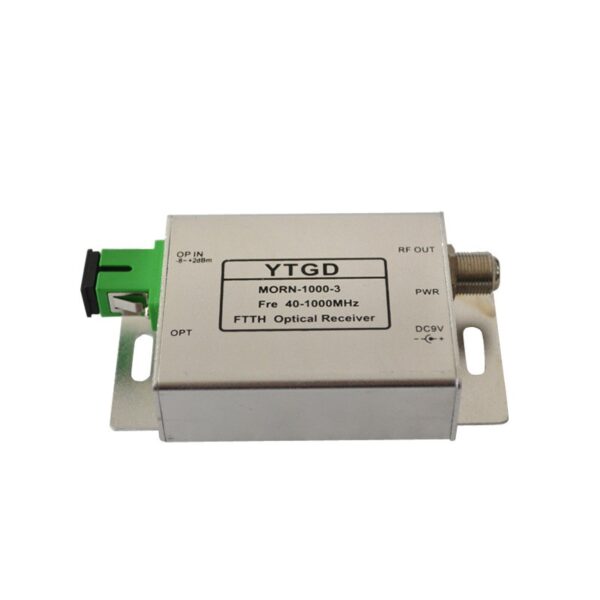

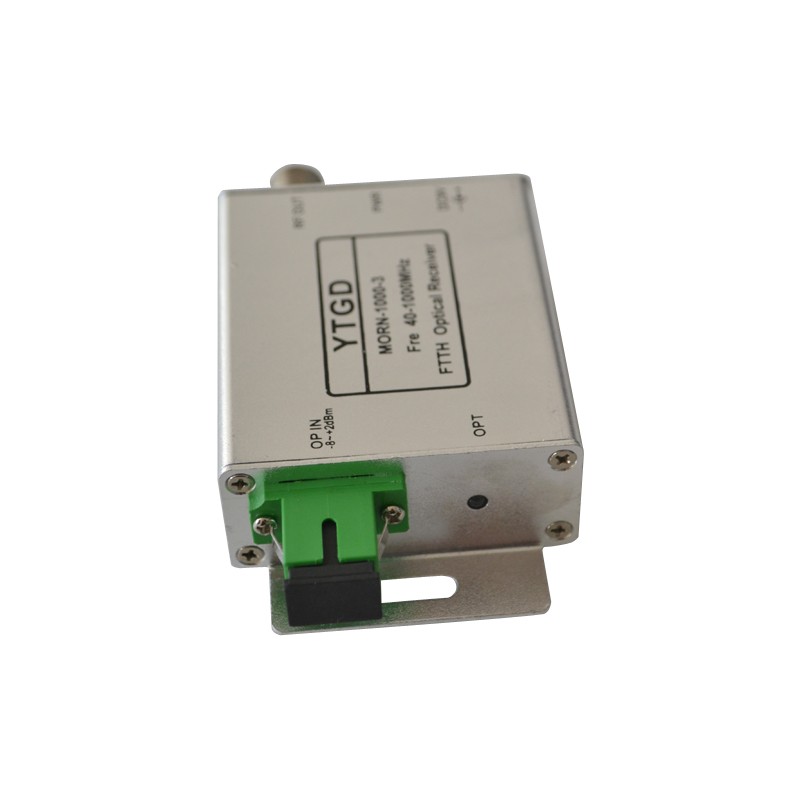

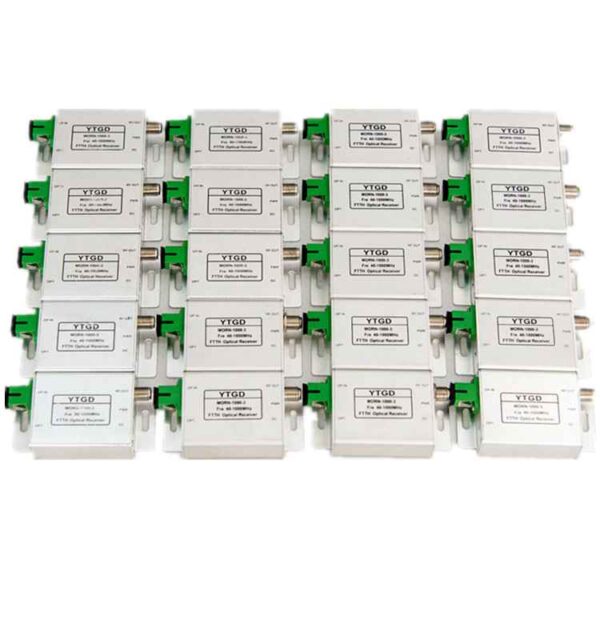

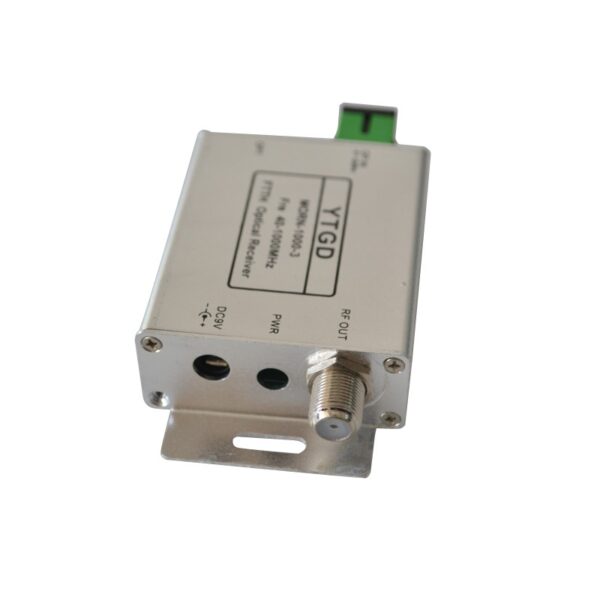

FTTH Optical receiver, SC APC iput, RF output for Cable TV network, Wall mount

Yingda make all types of FTTH optical receivers in different package box, but all with good stability, low loss and long life span. All FTTH optical receiver are test 100% and qualified before delivery.

SKU YT-1200-W-1 Category Tags ,

Description

  • Model:MORN-1000-3
  • Color: Gray

ftth optical receiver, sc apc iput, rf output for cable tv network, wall mount

FTTH Optical Receiver Specification

Optical parametersUnitValue
Receiving optical powerdBm-18 ~+2
Light emission lossdB>45
Light receiving wavelengthnm1100~1600
Type of optical receiver FC/APC, SC/APC optional
Link performance
Carrier to Noise Ratio (C/N)dB≥50
Carrier combination third-order beat to beat ratio (C/CTB)dB≥65
Carrier combination second-order beat ratio (C/CSO)dB≥63
RF parameters
Frequency rangeMHz45~1100
In-band flatnessdBuV82 (±1dBuV)
AGC rangedBm-10 ~0
apply to GEPON network
Light power indicator light





Red<-9dBm
Green>-9dBm
Orange>+2dBm
Supply VoltageV5
MERdB>33



Yingda can offer all types of FTTH optical receivers like below:

indoor catv ftth passive optical receiver, green plastic housing, sc/apc input
