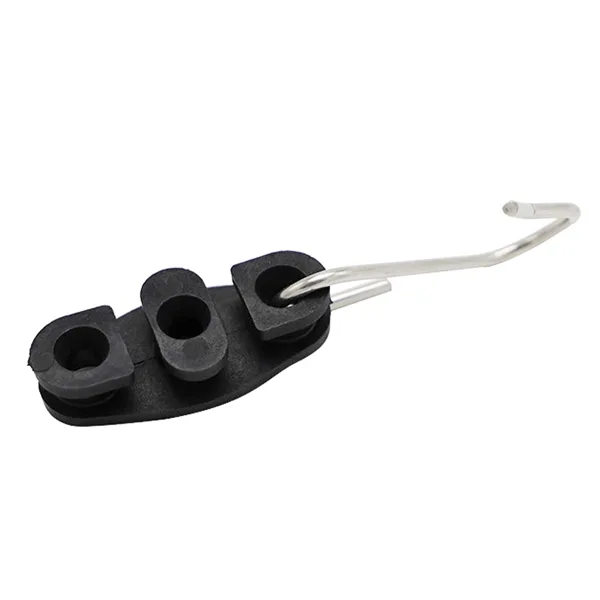

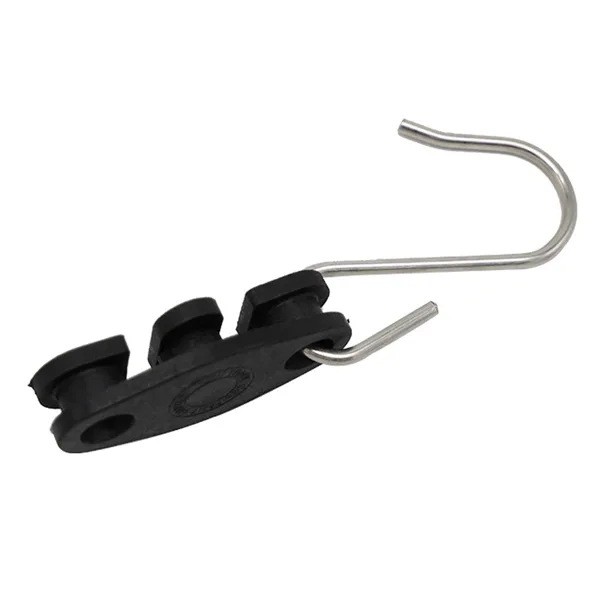

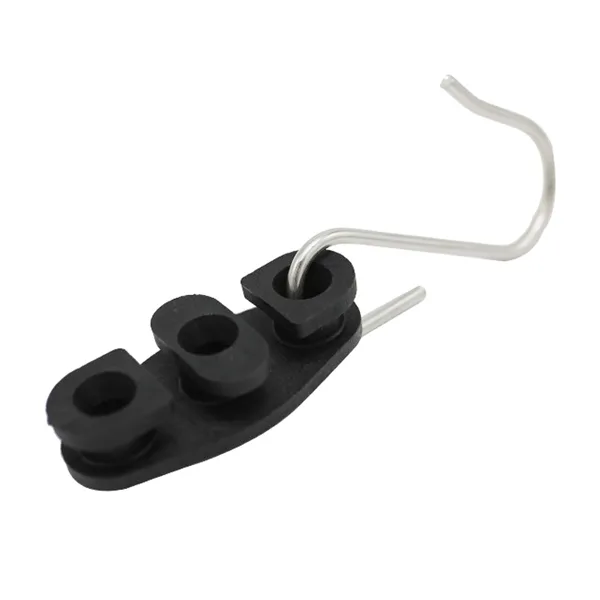

Description
The S-Type Fixed Part FTTH Cable Holder Plastic Drop Wire Clamp is a kind of drop cable clamps, which is widely used for securing drop wire on various house attachments. Drop wire clamps can be used with telephone drop wire cable, and optical fiber cable in FTTH, FTTX, FTTB solutions.
Plastic Drop Wire Clamp Features
Clamp prevent electrical surges from reaching the customer premises.
Effectively reduced the working load on support wire.
Good corrosion resistant performance, good insulating property and long life service.
Plastic Drop Wire Clamp Specification
| Model | FTTH-S03 | |
| Plastic tensioner | Metal hook | |
| Dimension | Width*length:38.1*76.2mm | Diameter*length:6.35*150mm |
| Material | PP /ABS Plastic,black, resistant to ultraviolet light, moisture, salts and temperature changes and do not conduct current. | Hot galvanized steel,with a minimum zinc deposition of 3. 36 g/ dm2. |
| Material | 201. 304 SS +PA66 | |
| Supported cable | 2.20AWG and 2.17 AWG, fiber optic cable max. Diameter:5mm | |
| Net weight | 16g | 30g |
| Breaking force | 1.33KN | |
| HS code | 8535900090 | |

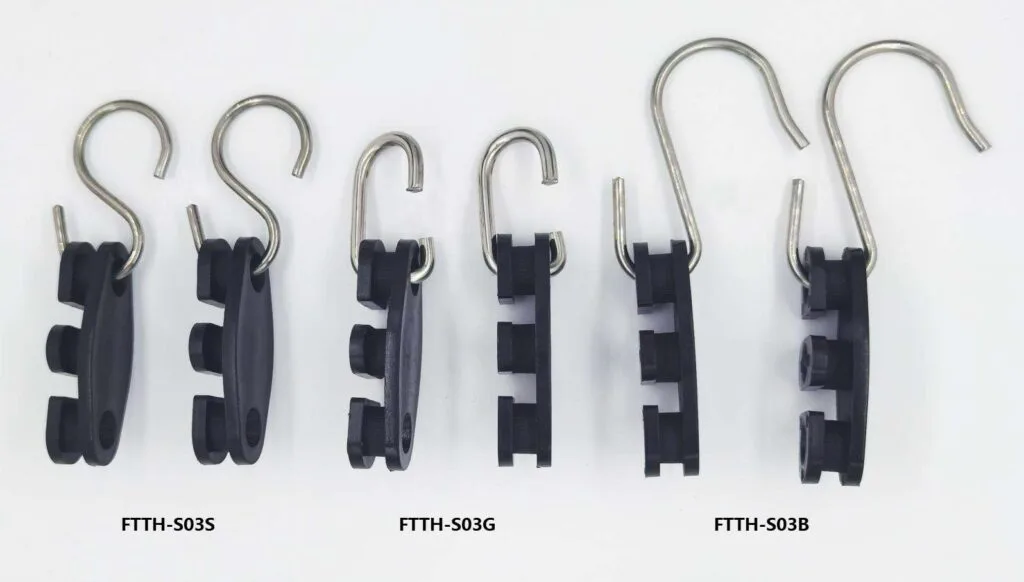

This tension clamp can deliver with different types of hooks:
| Model | Dimension | Material | Cable diameter | Weight | Breaking load |
| FTTH-S03S | 125*35*33mm | 201/304SS+PA66 | 2-5mm | 35g | 1.2KN |
| FTTH-S03G | 110*35*30mm | 201/304SS+PA66 | 2-5mm | 36g | 1.2KN |
| FTTH-S03B | 140*35*60mm | 201/304SS+PA66 | 2-5mm | 38g | 1.2KN |
Plastic Drop Wire Clamp Pack information
| Quantity/carton box | Carton size | Gross weight/carton |
| 300pcs | 38*26*30cm | 13kg |
