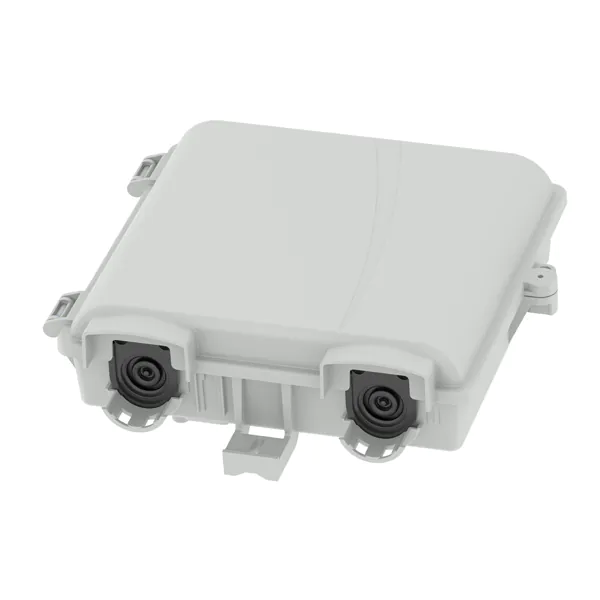

FAT-506F series indoor fiber termiantion boxes are designed and manufactured to endure harsh environmental conditions. Our fiber termination boxes are specially built to accommodate various amounts of pre-connectorised connectors for your fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), or fiber-to-the-curb (FTTC) project. And the pre-connectorised connectors are easy to be connected by the drop cables. It is suitable for wall mounting.
| Model | FAT-506F |

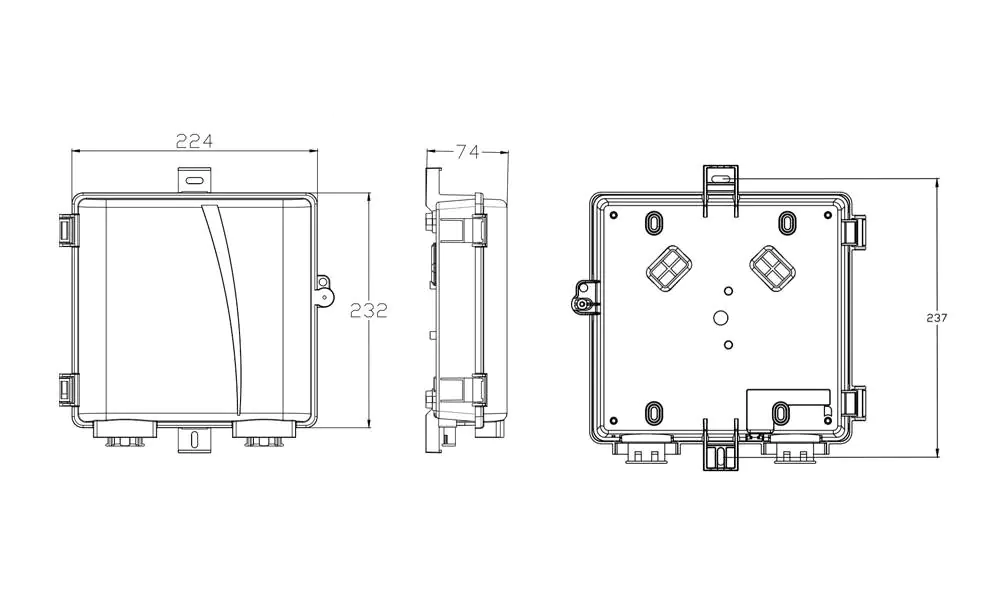

| Size (Pic 1) | H×W×D = 232×224×74 (MM) |
| Material | PC+ABS |
| Color | Light Gray |
| Adapter Type | 1SC Simplex or duplex |
| Cable Port | 2 Pcs |
| Installation Method | Wall Mounted |

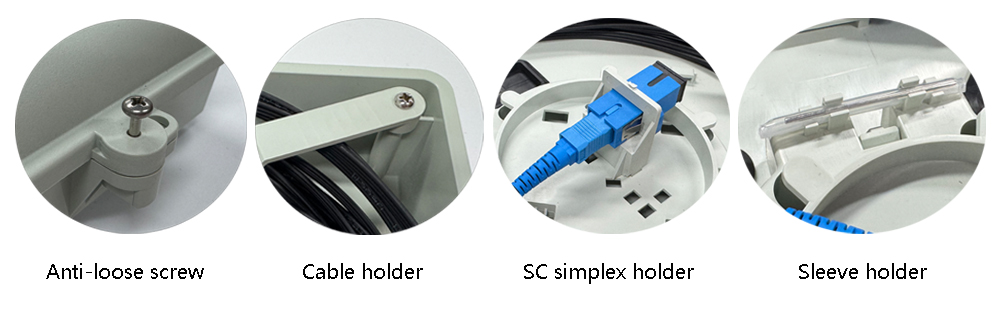

This FTTH box 2 port are newly design, with a anti-loose screw, no need other special tool only a screwdriver, anywhere you can find. All the metal parts for this box is stainless steel, and there is a SC simplex adapter in the middle, you can insert the pre connectorized drop cable patch cord into this adapter for active connetion. If you need to splice, there is a sleeve holer on the side of the SC adapter.

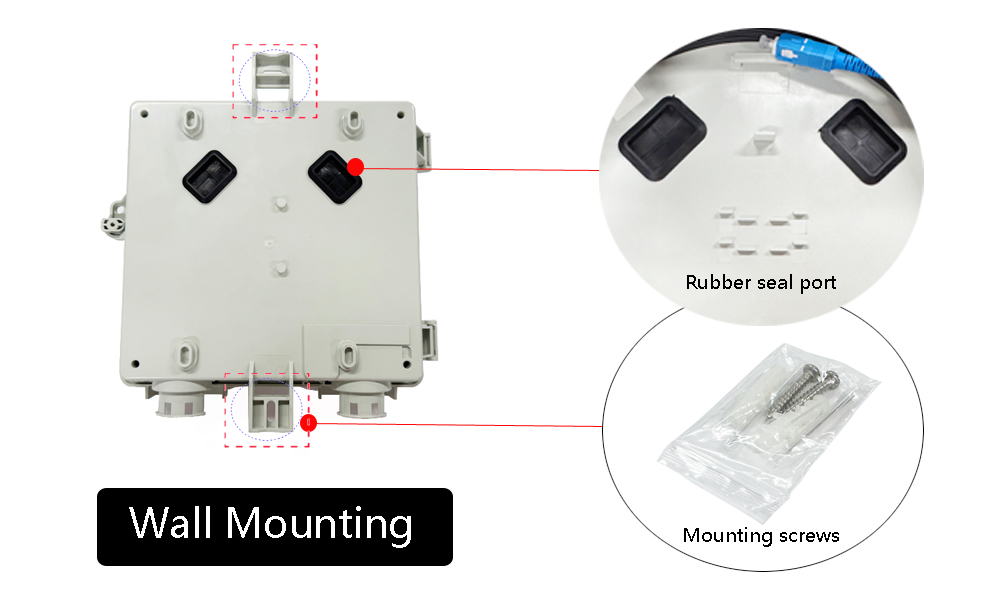

This box can can be wall mounted, there is mounting holes on top and bottom of the box, only drill holes with expansion screws. and the accessory is configurated with the box itself.

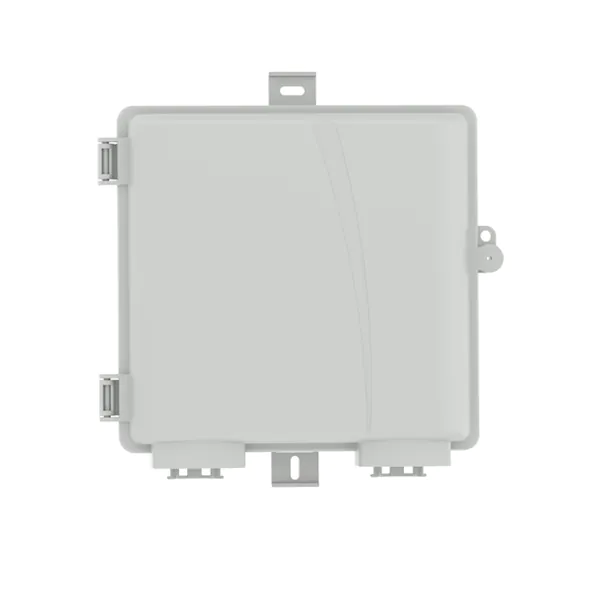

The box is total enclosed with key lock, can print customer logo or part no. on surface with screen printing or laser printing. The FTTH box cover and main body is connected with hinge, no loose when installation.

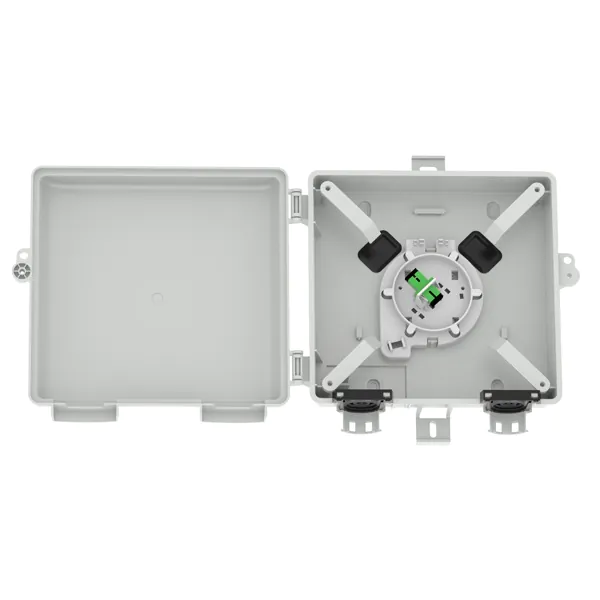

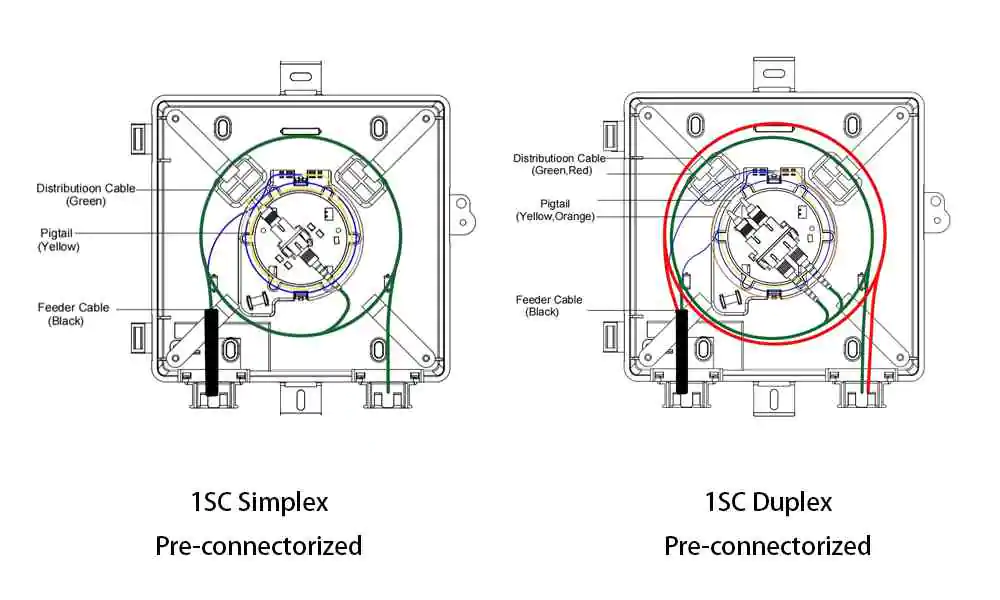

The box internal with 4 cable clamps around 4 corners, large space for cable winding inn the box, and reasonable bend rasius for cable go through the box, and internal can be preconnectorized SC pigtails or patch cords docking, there is 1 SC simplex or SC duplex coupler in the middle.
We can bring the cable from the box bottom with rubber seals, and mountting the box on the wall with expansion screws.

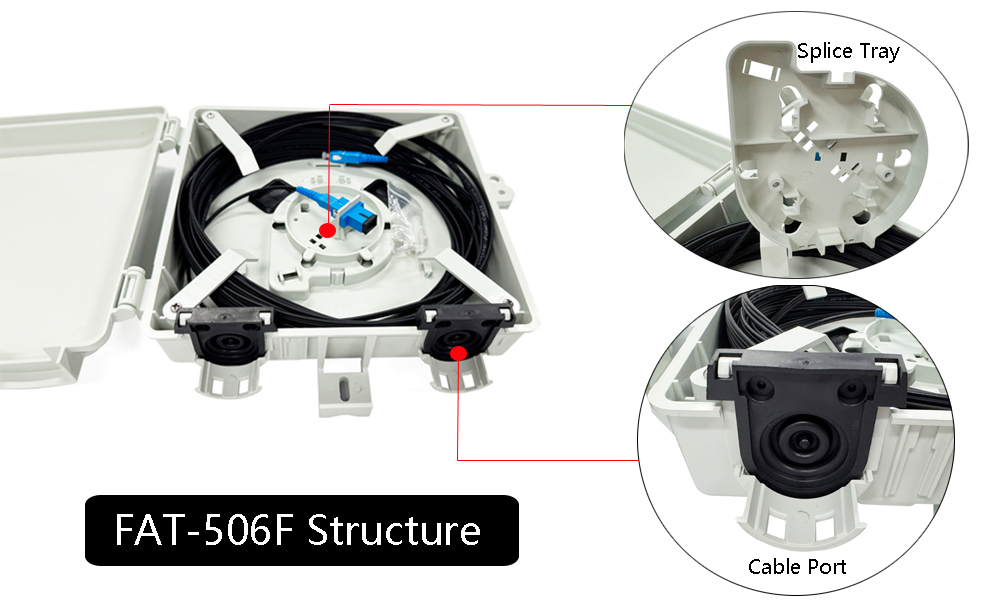

FAT-506F fiber optic FTTH box configure with 2 rubber ports, which support mid span access, we can use this box as a fiber slack bracket, it can hold more than 20meters drop cable 2x5mm inside. The middle splice tray can be changed into other kits, like 1x SC duplex, 6SC duplex or wiring holder as well.
