Description
FAT Box In FTTH Features
- Made of quality engineering plastic ABS, brand new materials, not have second hand, white color.
- It can be installed on any vertical flat surface on wall;
- Compact size, light weight, special design;
- Box lid surface adopts gradient design, non planar;
- Large space to store 2 meters of optical cord pigtails with 0.9mm diameter;
- Cable entry from bottom hole, not side or front, hidden wiring design ensure more beautiful and safe, to prevent man-made damage to the optical fiber fracture and affect the optical fiber transmission performance;
- There are 2 card-type designs on the left and right sides, which open and close firmly, and the lid is not easy to fall off.
- It is easy to handle, no other tools are needed during construction;
- The front panel adopts the universal SC adapter, which is convenient and quick, and the construction is simple.
FAT Box In FTTH Specification
| Model | FTB86Y |
| Dimension (H*W*D) | 110*80*27mm |
| Max. Capacity | 2 core (single fiber) |
| Cable type | FTTH Flat drop cable / indoor cable |
| Adapter | 2 SC simplex, LC duplex adapters |
| Color | white |
| Material | ABS |
| Protection level | IP20 |
| impact protection | IK01 |
| Fiber type | single mode & multimode |
| Operating temperature | -10~+65°C |
| Guarantee | 12 months |
| Standards | Degree of protection: IEC 60529; Temperature variation: IEC 61300-2-22; Telcordia GR-771. |
FTTH FAT Box Details

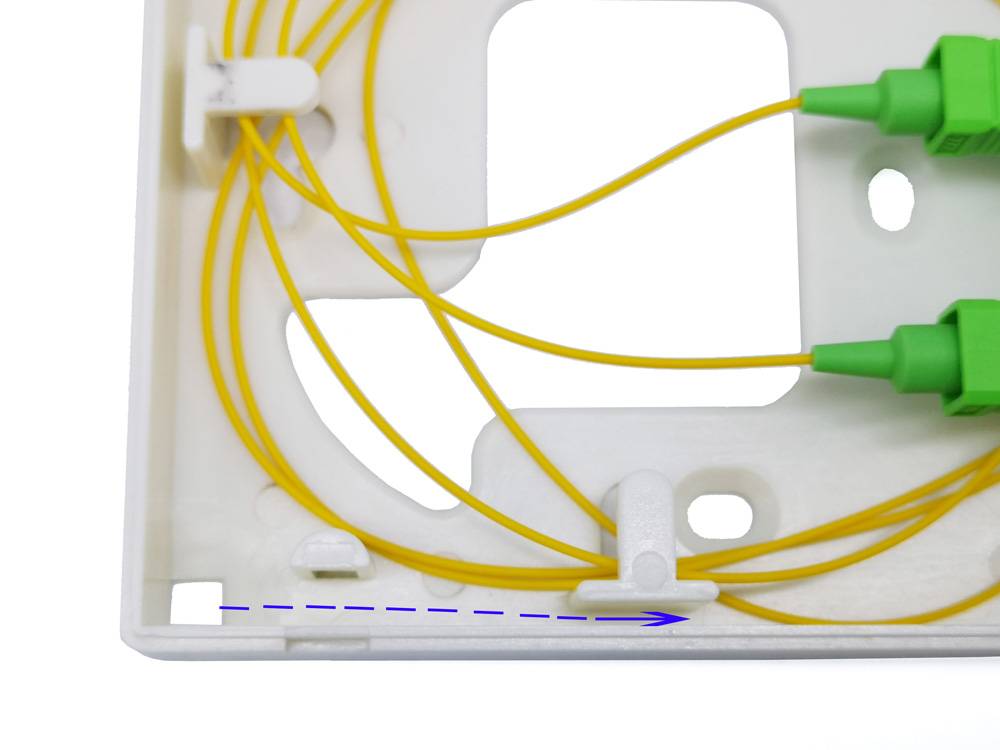

This telecome quality FTTH FAT box bring the fiber optic cable from the box bottom big holes in the middle. And there is large space to winding pigtails or surplus fiber around the box, with reasonable bend radius.

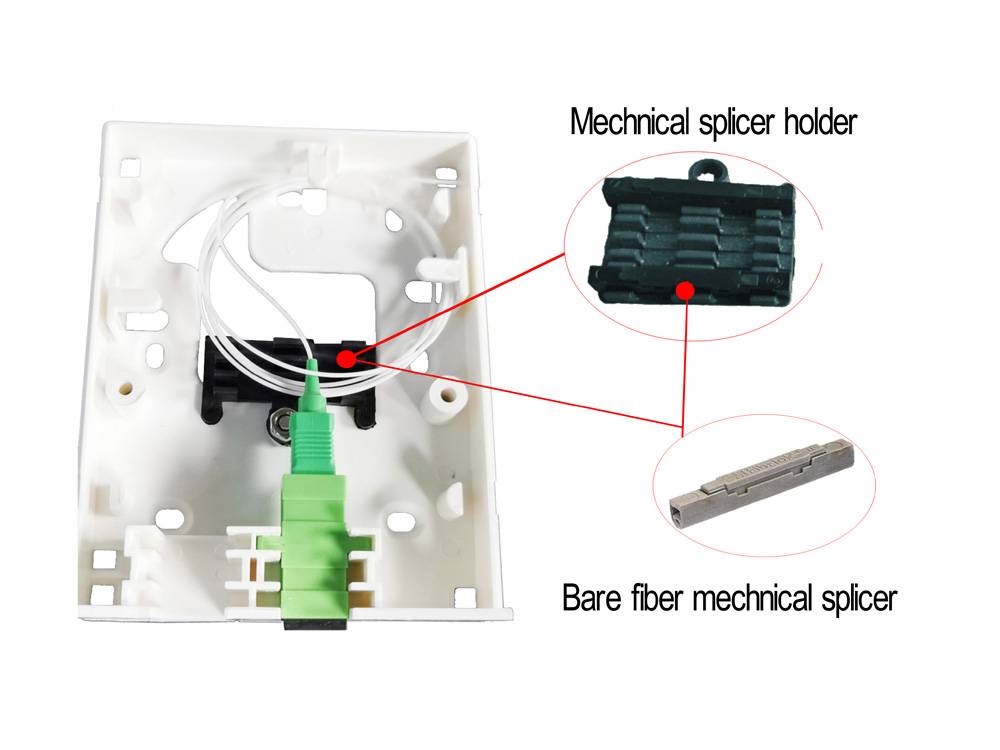

Except the original design, we can help add mechanical spilcer cassette inside, with screw fixtion on the bottom, you can use bare fiber 250um or 3mm mechancial splicer.
There are 2 ports for SC simplex adapters, due to the limited space, you can only use no flange adapter, standard with separate dust cap or with shutter adapter are optional.

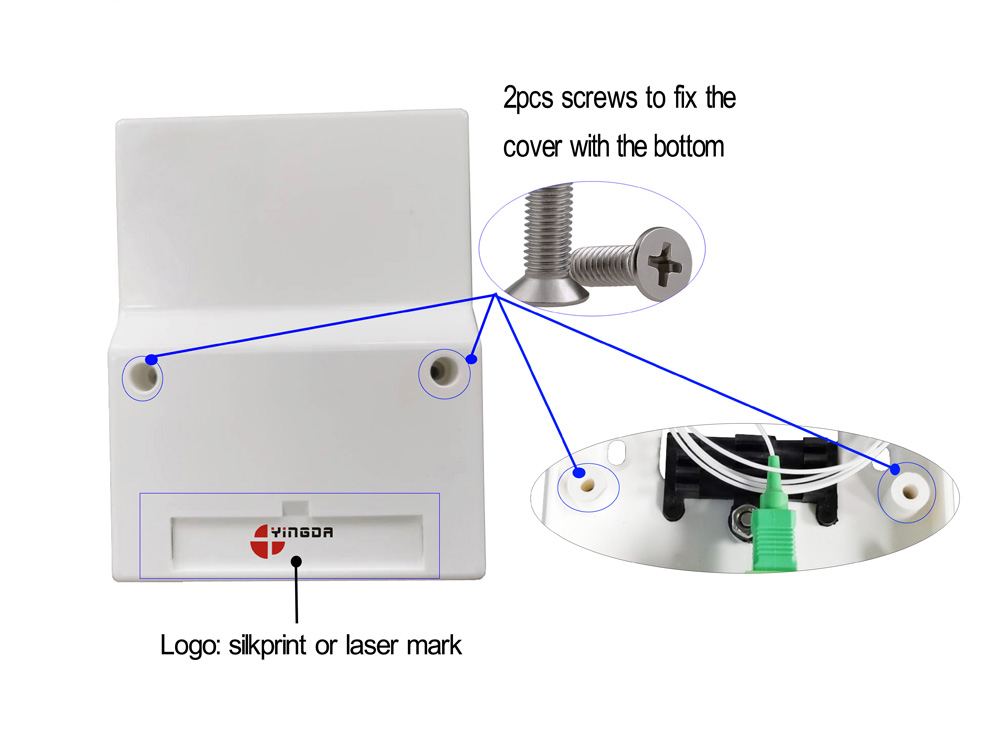

On top stepped lid, there are 2 holes for long screws to fix the lid with bottom, help close tightly, no loose. You can open it with a screw driver.
And we can help print your logo or brand name on the fiber access terminal box itself upon request. Multi-colors should charge addtionally.

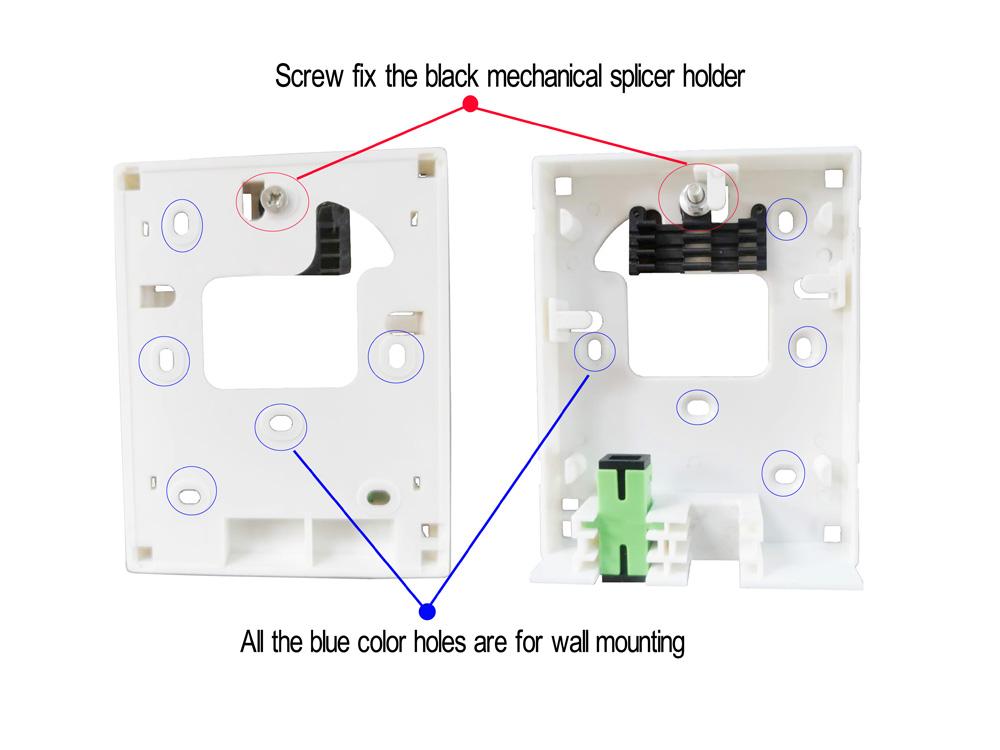

There are total 5 holes in different areas of the box bottom, which help you mounting the FTTH box in anywhere it is suitable. Flexible and fast to operate.
