Description
FTTX Box Features
- It is used for different kinds of modules and applied to the working area subsystem.
- It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty.
- Dust-proof design with Ip-45 Protection level.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- 3 ports cable entrance for patch cable.
FTTX Box Specification
| Model | FTB86T |

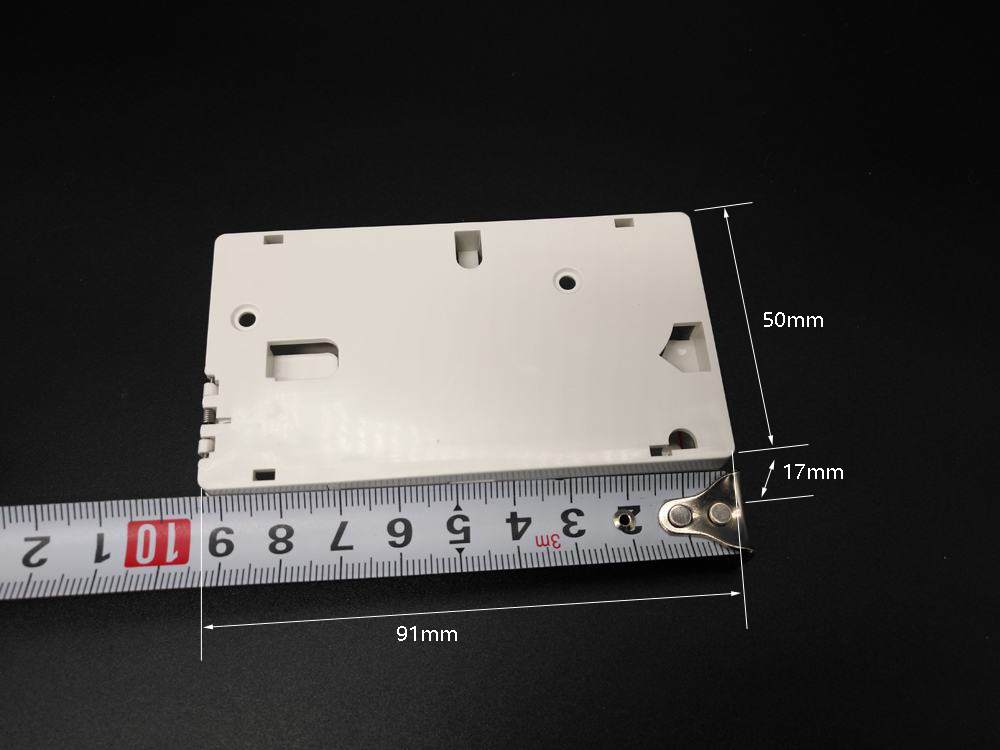

| Dimension (W*D*H) | 91*50*17mm |
| Max. Capacity | 1 core (single fiber) |
| Cable port | 3 pcs |
| Cable diameter | φ2.0mm, 3.0mm, φ0.9mm indoor GJFJV cable and FTTH drop cable 2x3mm |
| Adapter | 1 SC simplex / LC duplex |
FTTX Box Details

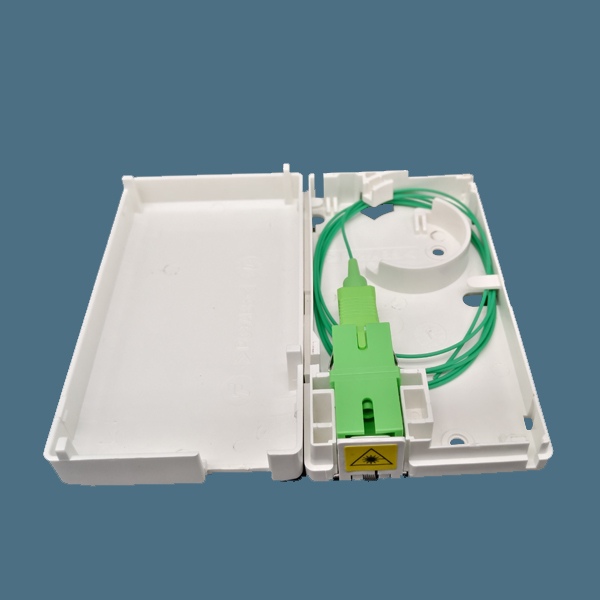

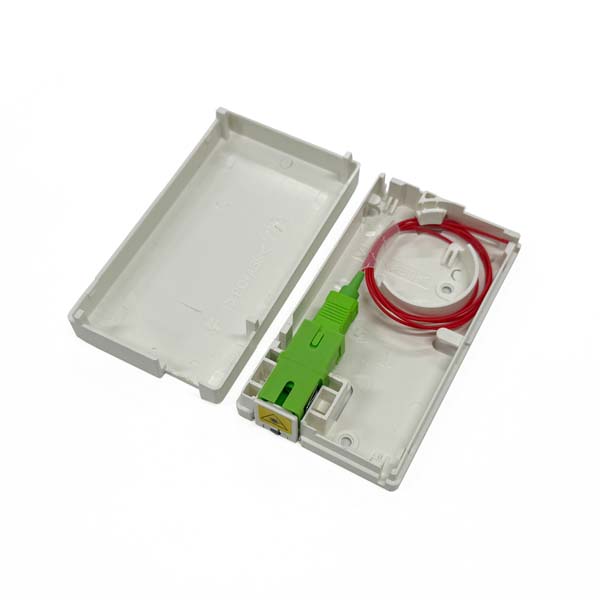

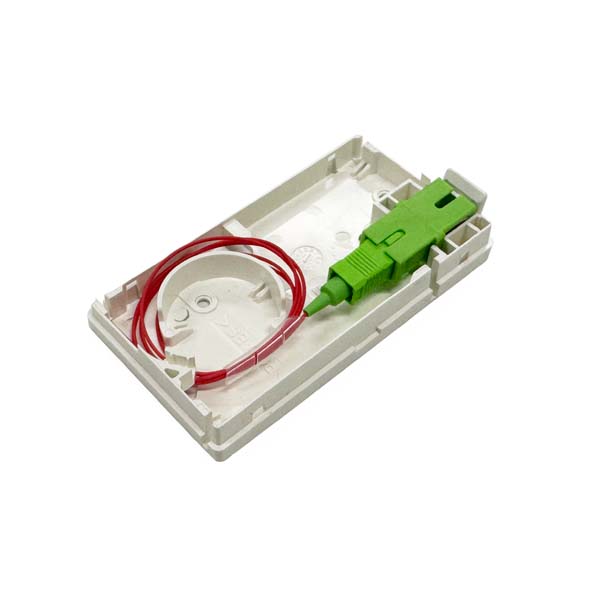

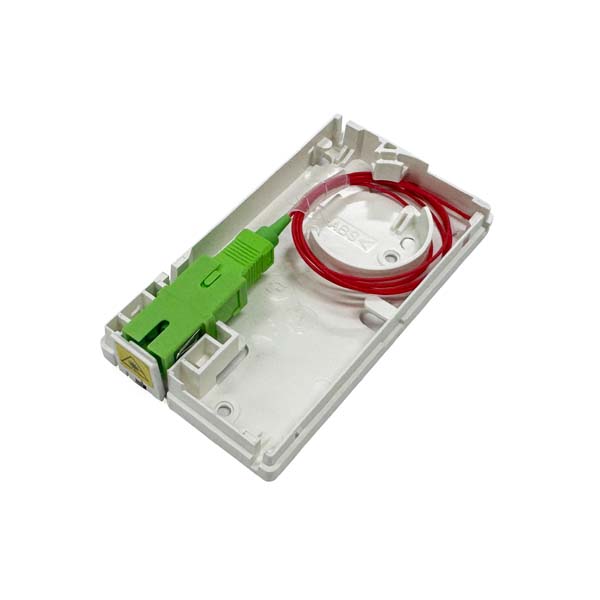

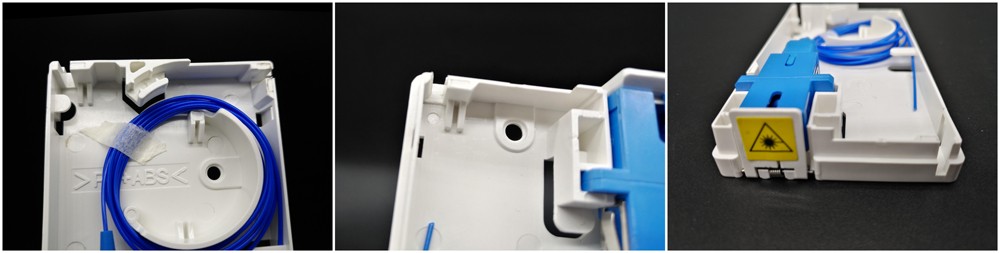

FTB86T fiber optic wall outlet is with 1pc SC adapter port, you can install 1meter long sc pigtails 0.9mm inside, there is enough space to wiring it, you can splice inside with it. We will put the mounting screws together with the box, you dont need to buy addtionally.

This fiber wall outlet is mini type, only 1 home access with SC adapter and pigtails. Due to it is very small, so it will not take much space in construction, and invisible in some distance, good choice for FTTx deployment.

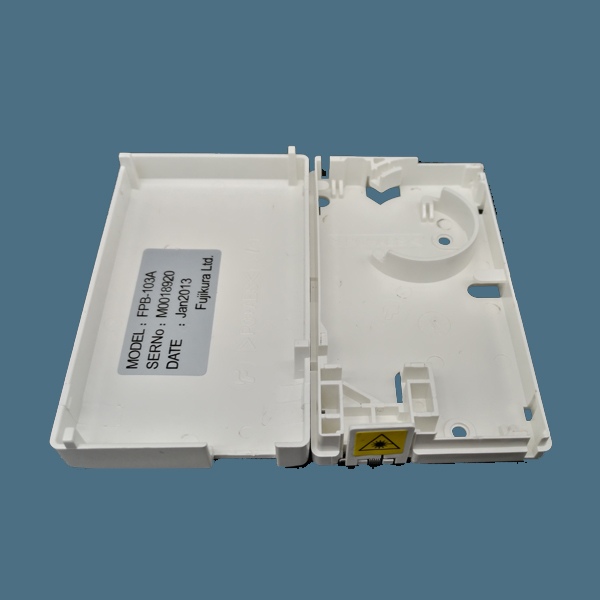

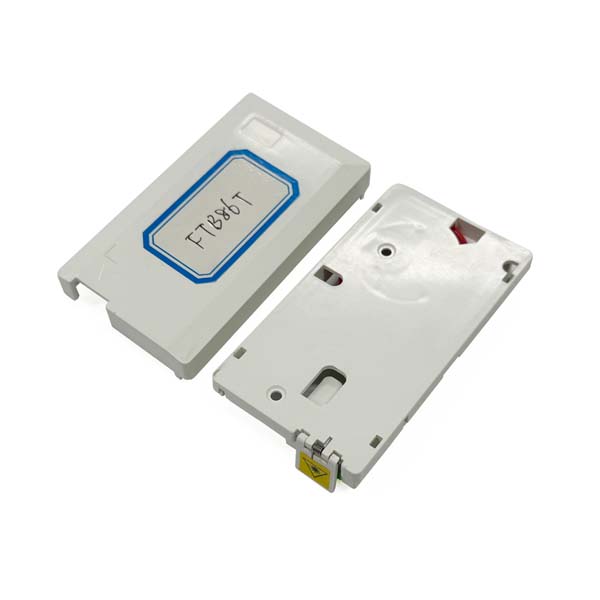

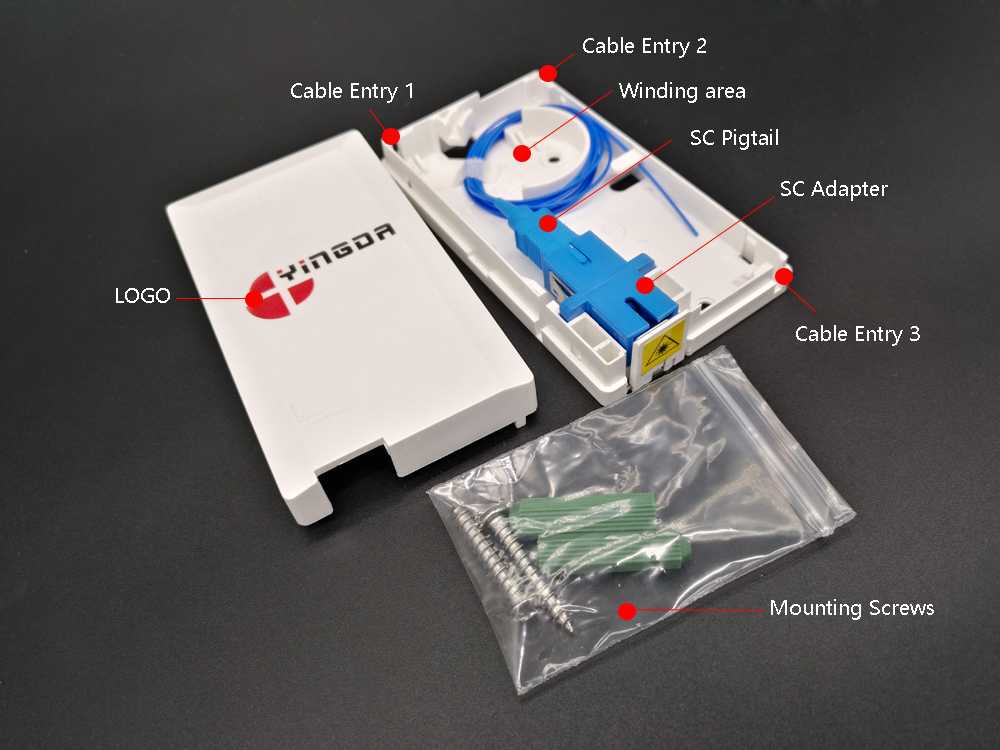

You can bring the cable from 2 ports at top of the box and 1 port align with the sc adatper, flexible wiring and humanity design. And the mounting holes are in the bottom of the optical outlet, and there is large wiring space and material mark.

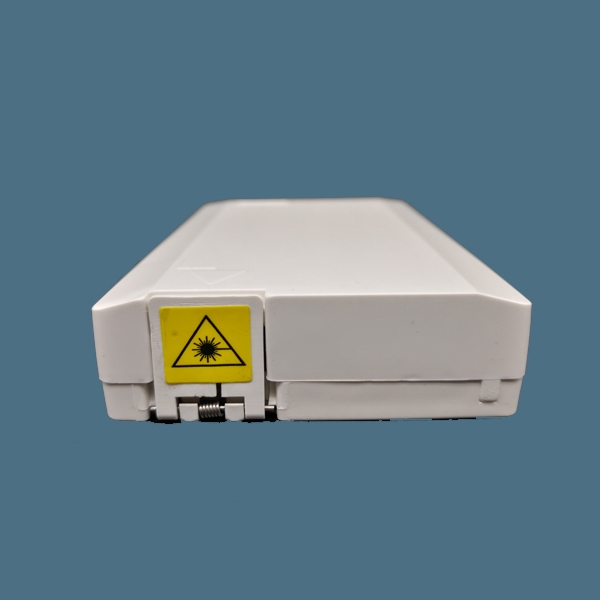

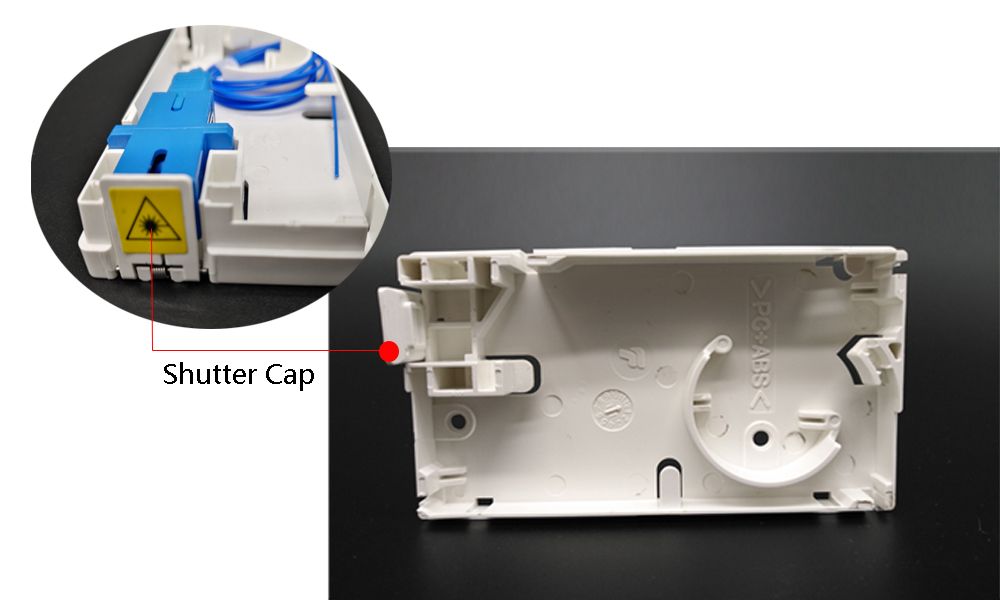

This 1 port FTTx termination box adapter port is with a automatically closed with a spring, when you need to connect with external patch cord connector, you can open it, after no use, it is closed automatically to prevent dust from entering.
