2 SC Plastic White Ftth Termination Box Supplier

Description

Ftth Termination Box Features

It can be installed on any vertical flat surface or on a box embedded in wall;
Compact dimension, light weight, special design;
Easy handling, no special tools needed;
Identification Label behind the cover;
The fiber optic reserve is inside the product;
Allows accommodation of 40mm or 60mm fusion splice protectors;
Capacity to store 20cm of optical cord with 3mm diameter;
Complies with what is specified in the recommendations of the IEC 61755-1 standard;
The lid is closed with a single screw in stainless steel and with a rotate cover to prevent dust;
Five accesses for input and output of cables or optical cords (patch cords): 2 lower,1 top, 1 side and 1 access in the back cover.

Ftth Termination Box Specification

Model	FTB86P
Dimension (HWD)	1158025mm
Max. Capacity	2 core (single fiber) or mechanical splices
Cable type	Flat cable / indoor round cable
Maximum input cable diameter	φ5.8mm
Outlet cable diameter	21.6mm or 23.0mm flat cable
Adapter	2 SC
Color	white
Material	PC+ABS
Protection level	IP30
impact protection	IK01
Fiber type	single mode & multimode
Guarantee	12 months
Standards	Degree of protection: IEC 60529; Temperature variation: IEC 61300-2-22; Telcordia GR-771.

Ftth Termination Box Details

Though this FTTH termination box is small, but it is larger than other 86 type socket panels, it is longer at 110mm, so the internal wiring space is larger and more friendly to construction workers. Not only 0.9mm cable, we can hold 2mm or even 3mm cables in certain lengths. There are 2 cable entrance with black blocks at left, and 2 SC adapter slots, which only support adapter without flange, normal type or shutter both ok.

There is a hidden anti-loose screw from top cover to the bottom which help close the box, when screw it on, rotate the lid above to open and connect the screw holes. And simple sleve holder at side of the box like middle image.

For each ftth termination box, the standard accessory include: mountting screws, cable ties, number mark, heat shrink protectors, etc.

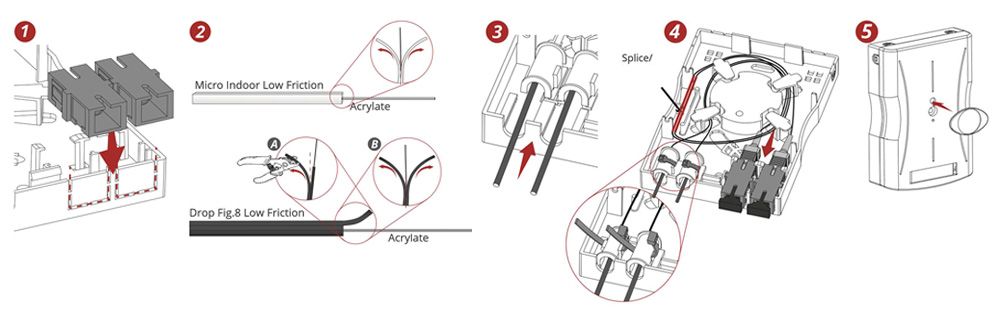

How To Bring Fiber to Home By Using FTB86P Ftth Termination Box?

Step 1: Cut off the adapter blocks, then clip the adapters into the slots
Step 2: Strip off the drop cable jacket and clean it well
Step 3: Bring the main calbe into the ftth termination box
Step 4: Tighten the entering cable in place with nylon tie or cable fixtures, then fusion splice the entering cable with the pigtails and hold the fiber joint in the sleeve holder. Then winding the surplus fibers, then insert the connector into the adapter
Step 5: Put on the lid on the box, then screw it on to complete installation.
