Description
Optical Wall Outlet Features
- FTTH indoor wall mount, home or work area
- Lid and bottom is separate, press both sides for easy open.
- Large store area for surplus fiber inside
- Suitable for 2pcs SC/LC duplex adapters
- High strength engineering plastic and ROHS proof
- Laser mark and and logo reserved position
- Cover is fix with bottom by a screw, more tight after long use
- 3 pcs round cable ports with rubber seal, dust proof
Optical Wall Outlet Specification
| Model | FTB86MS |
| Dimension (W*D*H) | 105*83*25 mm |
| Max. Capacity | 2 core (single fiber) |
| Cable ports | 3 pcs |
| Cable diameter | φ2.0mm.φ3.0mmφ0.90 mm cable and FTTH drop cable 2x5mm |
| Adapter | 2SC |
Optical Wall Outlet Details

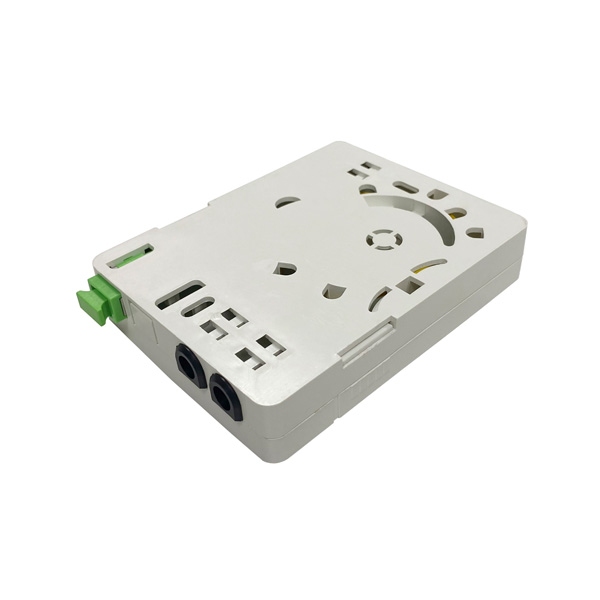

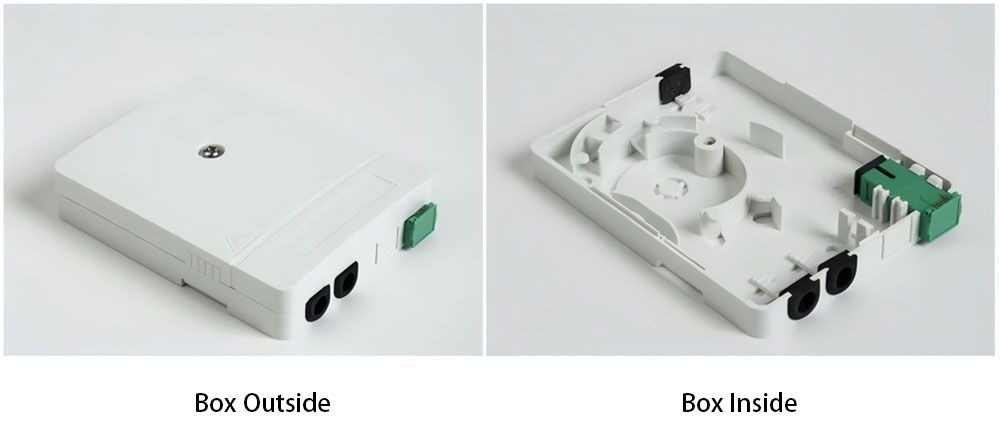

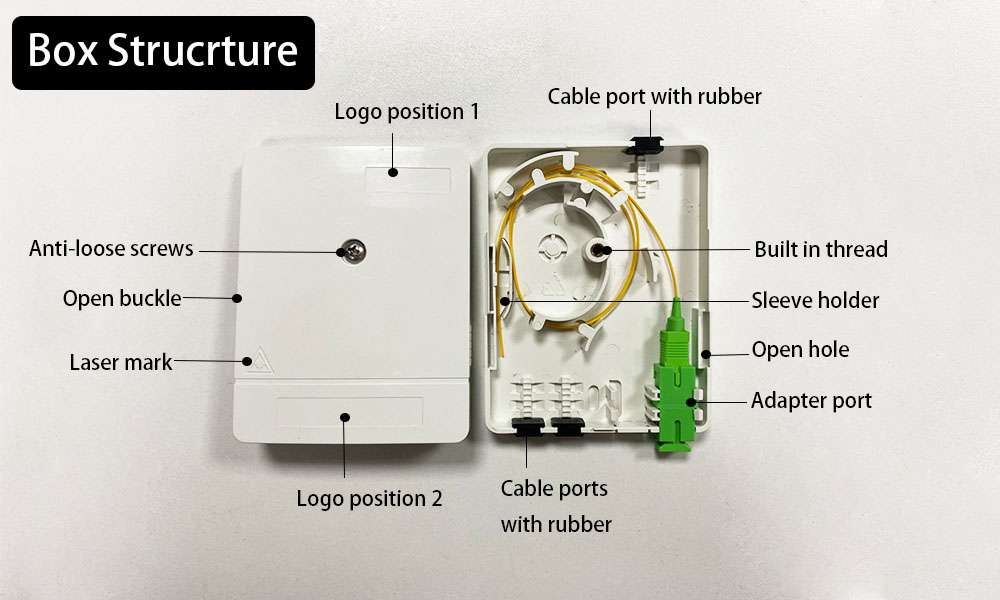

This optical wall outlet is very small size, simple structure without splice tray, with a anti-loose screw on from lid to bottom in the middle for locking. The box itself with logo poisition resevered, and made of ABS materials, high strenght, high quality for telecom, catv, FTTH wall mounted.

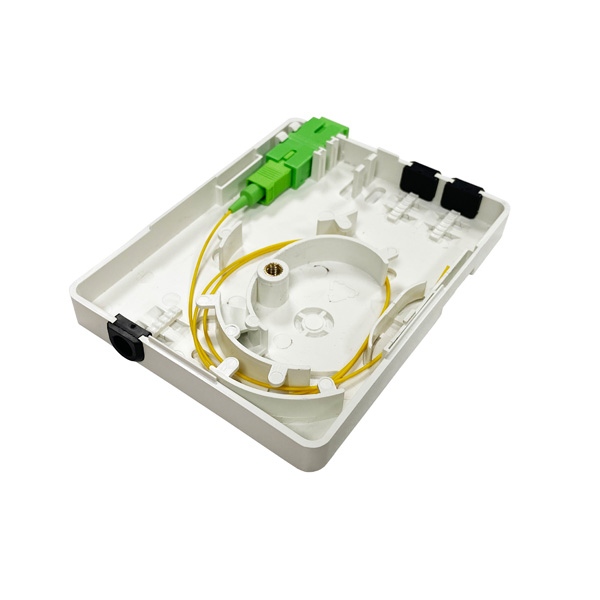

We can install max. 2 SC pigtail sand adapters inside of the box, and splicing inside, there are 3 cable ports to bring the main cable in and out. Flexibile wiring and simple operation. All cable ports with rubber seals for dust proof. The downward concave installation hole facilitates the insertion and fixation of nylon cable ties .

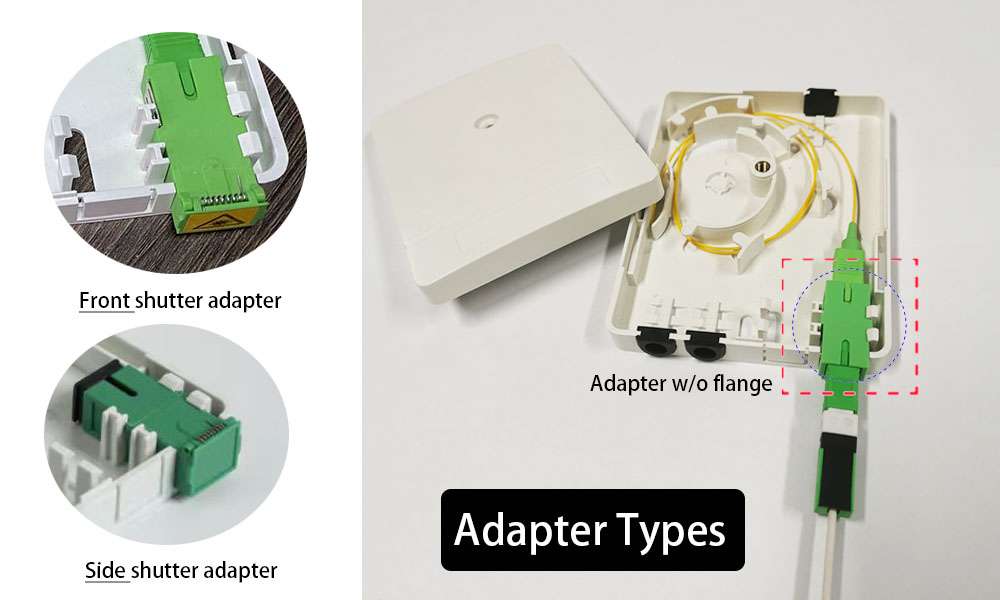

Due to special design for this fiber optical wall outlet , it can be used with various SC adapters with different structures according to customer needs, including ordinary SC adapters, SC adapters without flanges, Front SC shutter adapter, Side SC shutter adapter, etc.
Yingda has many types of fiber optical wall outlet with different structures and design features. If this box cannot meet the requirements, please consult the salesperson to recommend other styles.
