Description
Fiber Optic Wall Plate Outlet Features
- FTTH indoor wall mount, home or work area

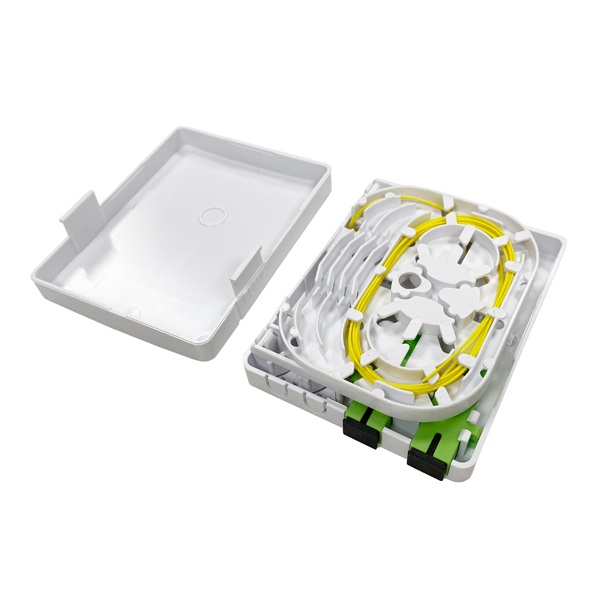

- Lid and bottom is separate, press both sides for easy open.
- Provide users with optical access or data access
- Large store area for surplus fiber inside
- Suitable for 2pcs SC/LC duplex adapters
- ABS+PC plastic and ROHS proof
- Laser mark and strength strip on lid
Fiber Optic Wall Plate Outlet Specification
| Model | FTB86M |
| Dimension (W*D*H) | 105*82*22 mm |
| Max. Capacity | 2 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | φ2.0mm.φ3.0mmφ0.90 mm cable and FTTH drop cable 2x5mm |
| Adapter | 2SC |
Fiber Optic Wall Plate Outlet Details

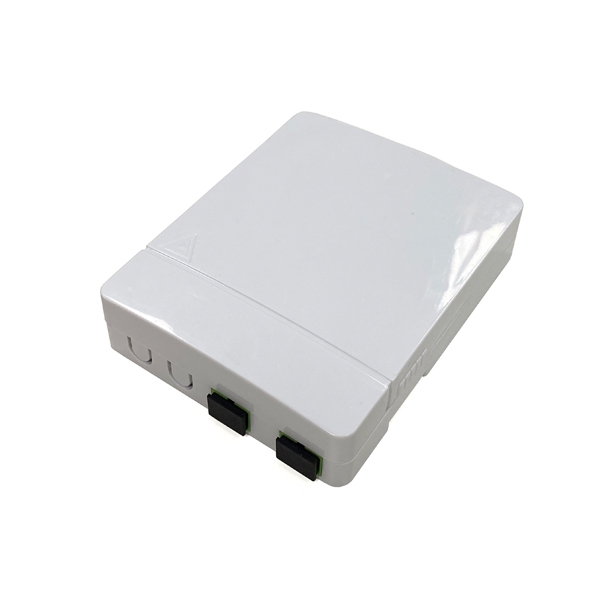

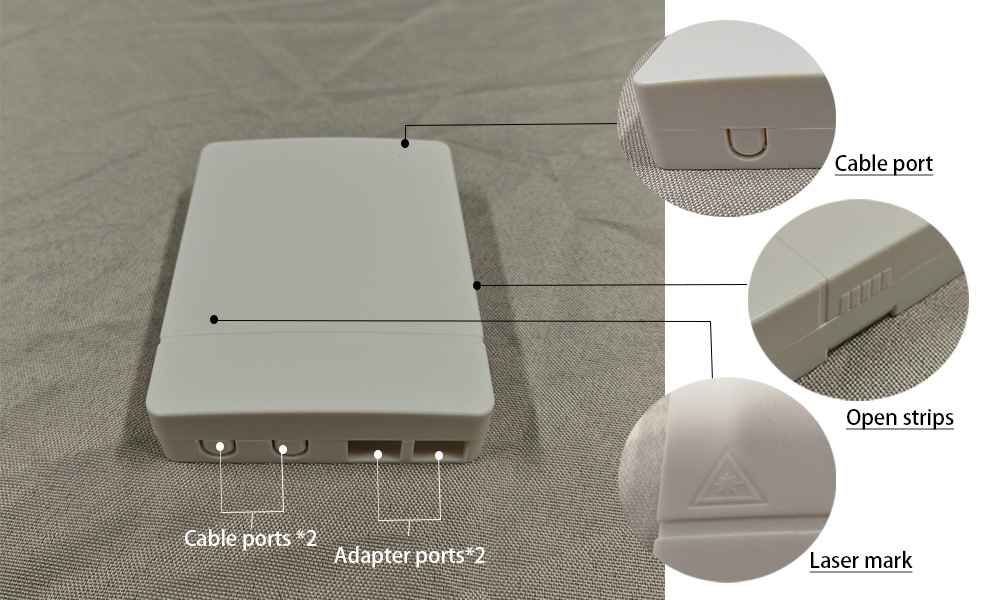

Yingda fiber optic wall plate outlet with 3 cable ports, 2 in front, 1 at back, and 2 SC adapter for fiber access to home with drop cables. This plate outlet no need screw, only press down both sides buckles to open the box.

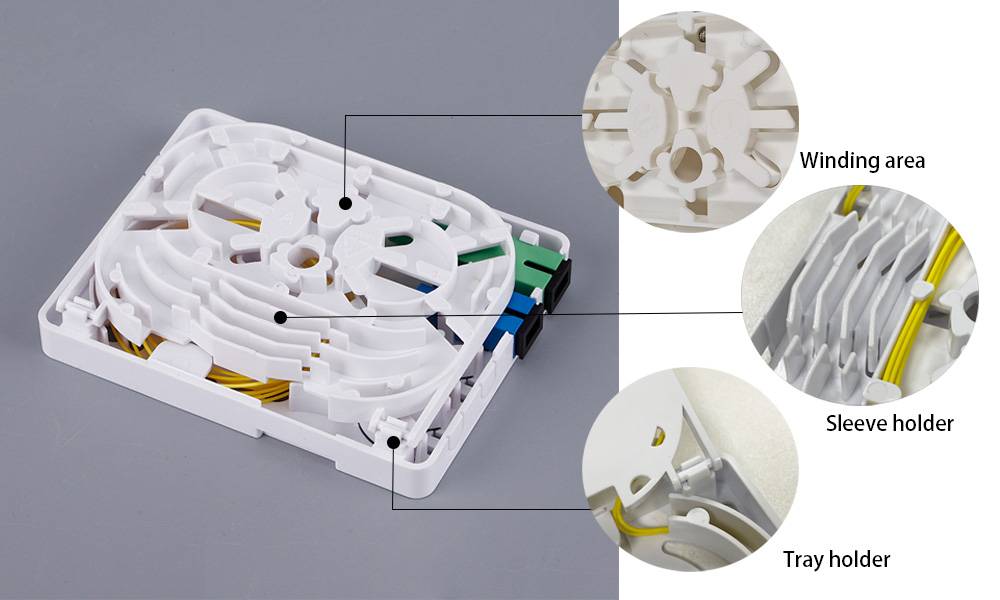

There is a mini size splice cassette for 4 cores single fiber splicing and storage, with reasonable bend radius design. When we install the adapter and pigtails, no need to install them, only after complete the connection, then press downwad the tray into the tray holder, it is ok. Flexible and easy to operate.

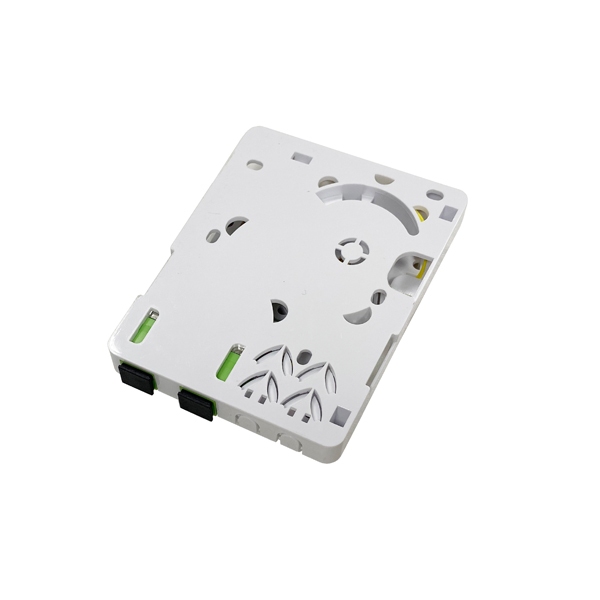

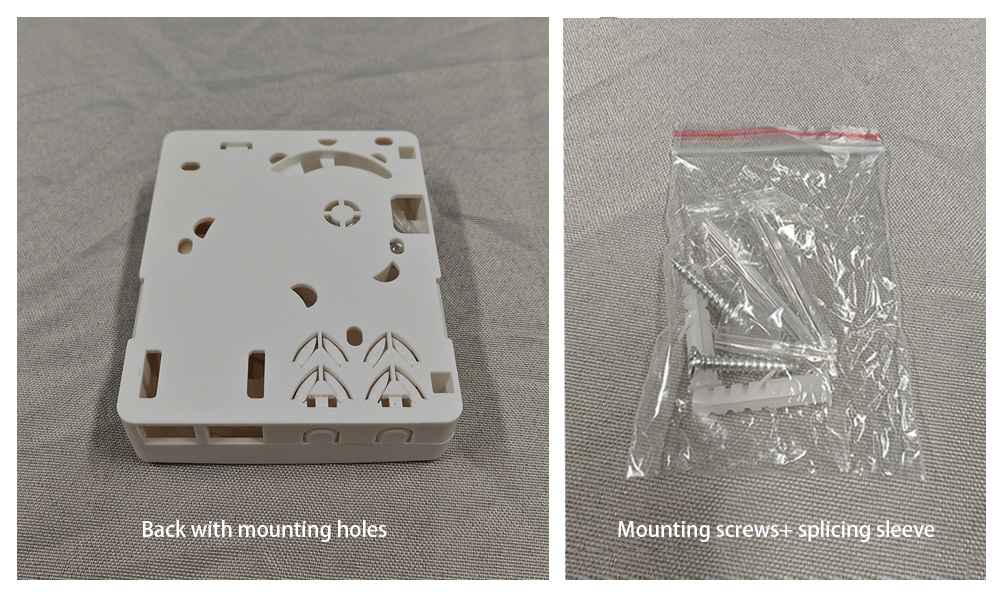

At back of tray, it is the cable come in and out area, and mountting holes at back. You can find the box material ABS mark at the middle. All able entry will be fixed well with clamps at the ports, if no use, no need to cut off the blocks, and you can use nylon tie to hold them in place, there is hole design for it. Meanwhile, we can use SC adapter with flange or witout flange, it is enough space.
We will load the mounting screws in a small bag with the box,and the heat shrinkable protection tubing for 40mm *1.0mm.
